Installation

Fillcontrol Plus — 06.07.2016 - Rev. B English —

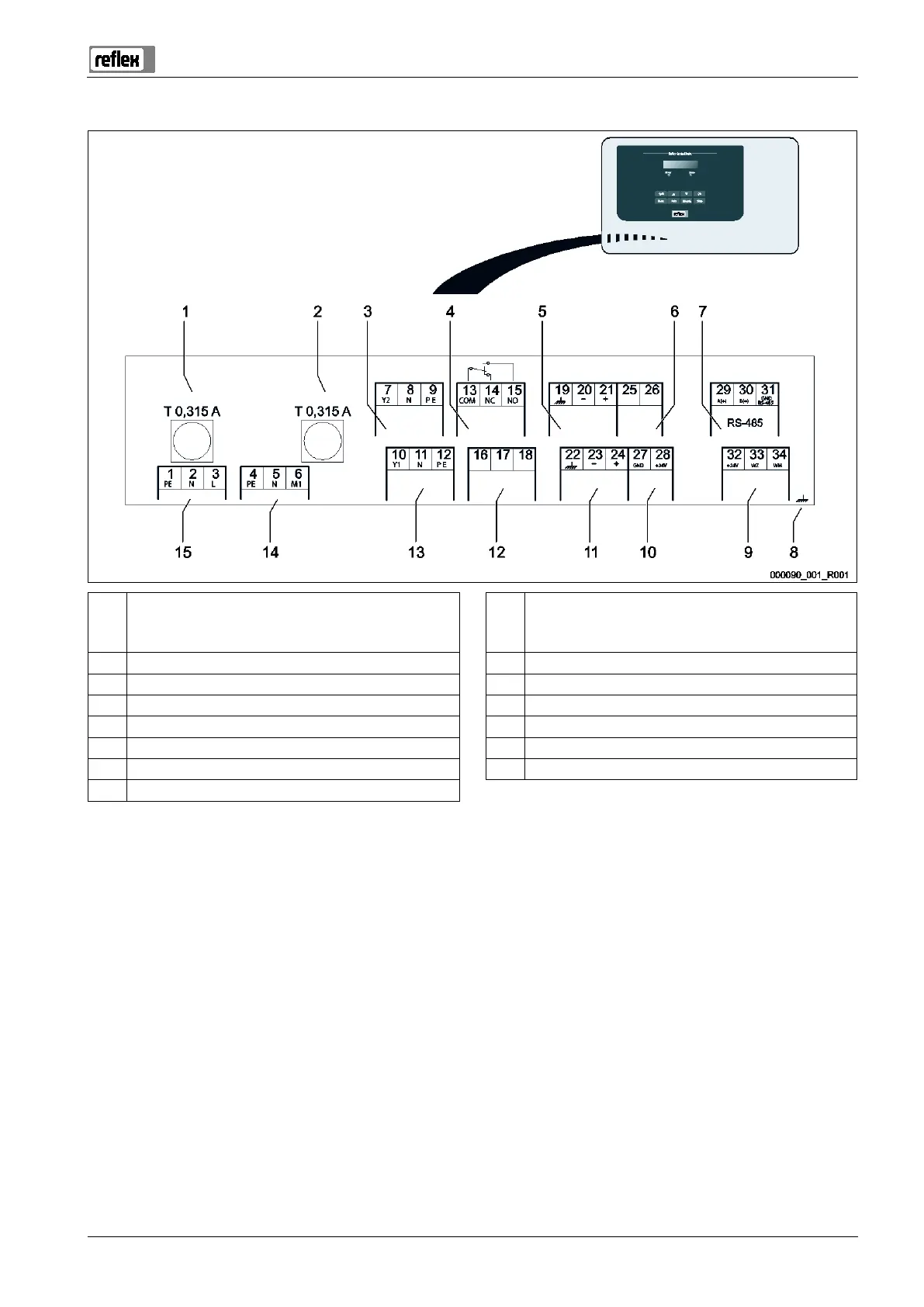

6.5.1 Terminal diagram

1 "L" fuse for electronics and solenoid valves 9 Digital inputs

• Water meter

• Insufficient water

2 "N" fuse for solenoid valves 10 Not used

3 Solenoid valve (not for motor ball valve) 11 Pressure analogue input

4 Group message 12 External makeup demand ("Levelcontrol" only)

5 Not used 13 Not used

6 Not used 14 Not used

7 RS-485 interface 15 Mains supply

8 Shielding
