Reflex Fillcontrol Plus User Manual

Commissioning
26
— English Fillcontrol Plus — 06.07.2016 - Rev. B
7.6 Use the device to fill the facility system with water
In a pressure-dependent make-up, you have the option to use the device to fill the facility system with water. The following prerequisites
must be met:
• The facility system is not yet filled with water.
• The facility system has a maximum water volume of 30000 litres.
•
The shut-off valve to the facility system is open.

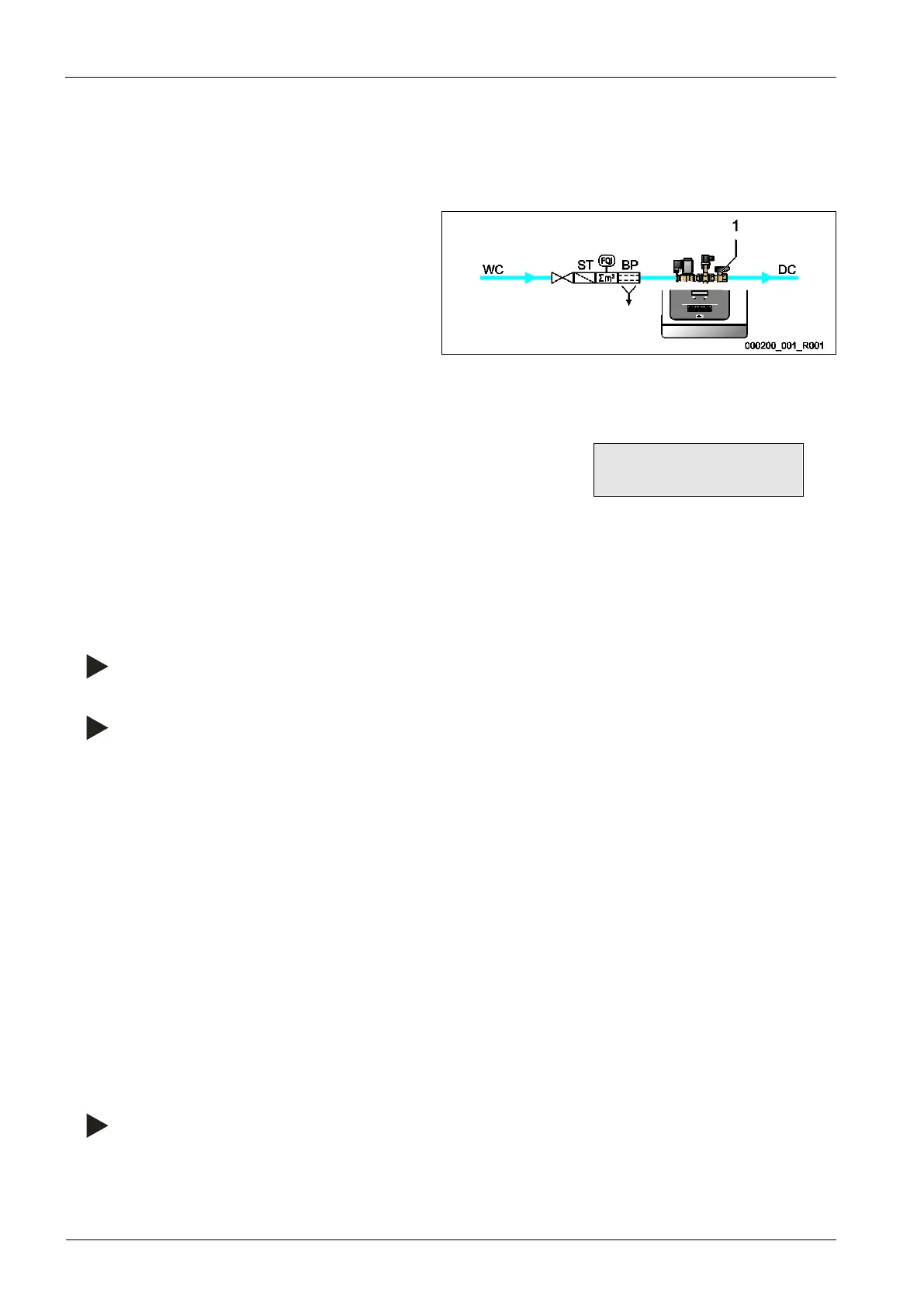

– Carefully open the "BV“ (1) shut-off valve.
Set the controller as follows:
• Select "Magcontrol" make-up, see chapter 9.2.1 "Customer menu" on page 34 .
• Select Manual mode, see chapter 8.1.2 "Manual mode" on page 27 .
Proceed as follows:
1
. Press "Manual".
2
. Use the arrow keys to select "Filling".
– "Filling" flashes at the display.
3
. Press "OK".
– The system starts the filling process. The displays shows "Filling".
– The controller calculates the required filling pressure. As soon as the filling
pressure has been attained, the controller automatically stops the filling process.
The facility system is filled with water.
2.0 bar
WV Filling!
Note!
Monitor the system for the entire automatic filling process.
Note!
If the
maximum filling time (10 hours by default) is exceeded, the system aborts the make-up process with an error
message, see chapter
9.3 "Messages" on page 35 .
•
Press "Quit" at the operator panel to acknowledge the fault message when the fault has been eliminated. The system
continues the filling process.
7.7 Starting Automatic mode
Automatic operation can be started after initial commissioning. The following prerequisites must be met for automatic operation:
• "P
0
" minimum working pressure is entered in the controller.
• The device is filled with water.
• All required parameters are defined in the controller.
• The function test has been concluded.
Start the automatic mode at the operator panel of the controller:
• Press "Auto" for automatic operation.
• The "Auto" LED at the operator panel illuminates to visually signal automatic operation.
Note!
The commissioning process is now concluded.
