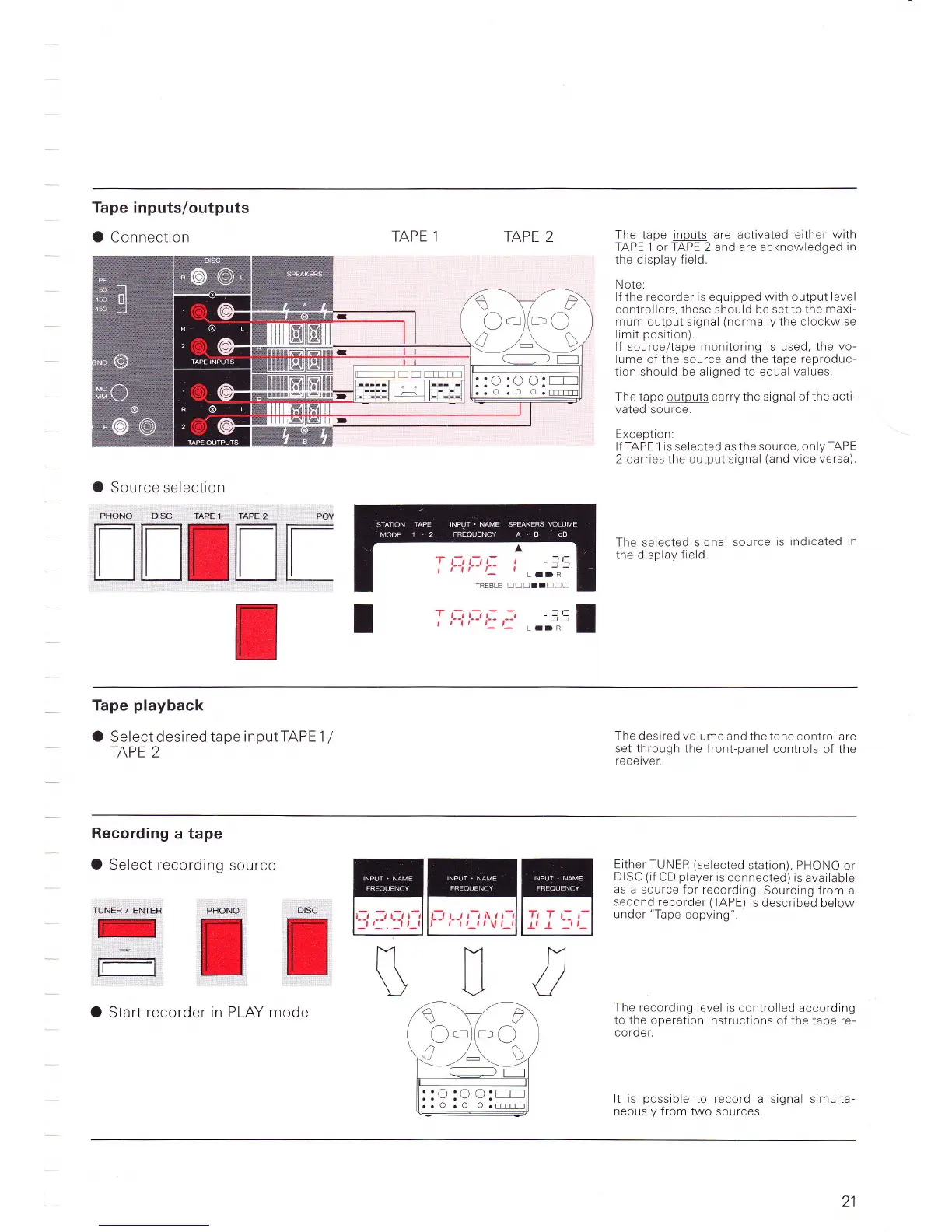

Tape
inputs/outputs
O Connection
TAPE 1
TAPE 2
The
tape
inputs are activated either with
TAPE
'1
or TAPE 2 and are acknowledged
in
the display field.
N ote:
lf the recorder is equipped with output
level
controllers. these should be
set to the
maxi-
mum output signal
(normally
the
clockwise
limit
position).
lf source/tape monitoring
is
used,
the vo-
lume
of
the
source
and the tape
reproduc
tion should be aligned to equalvalues.
The tape outputs carry the signal
of the acti
vated
source.
Excepti
o
n:
lf TAPE'1
is
selected
as the source, onlyTAPE
2 carries the output sional
(and
vice versa).
The selected signal
source
is indicated
in
the display
field.
O
Source selection
PHONO lAPE1.
.
'
TAPE.2
NEffi[
T
l:i !:r
E
;
---='-,
I
Tape
playback
O
Selectdesired
tape inputTAPE 1/
TAPE
2
The desired volume
and the
tone control are
set through the front-panel
controls
of the
recerve r
Recording
a tape
O Select recording
source
ffi ffi ffi
*,u'*ffiig,re'''':#lliilts
IT
=,
lr--l
üü
t
The recording
level is controlled
according
to the operation instructions
of the
tape
re-
corder.
It is
possible
to record a signal simulta-
neously from
two souTces.
O Start recorder in PLAY mode
21
