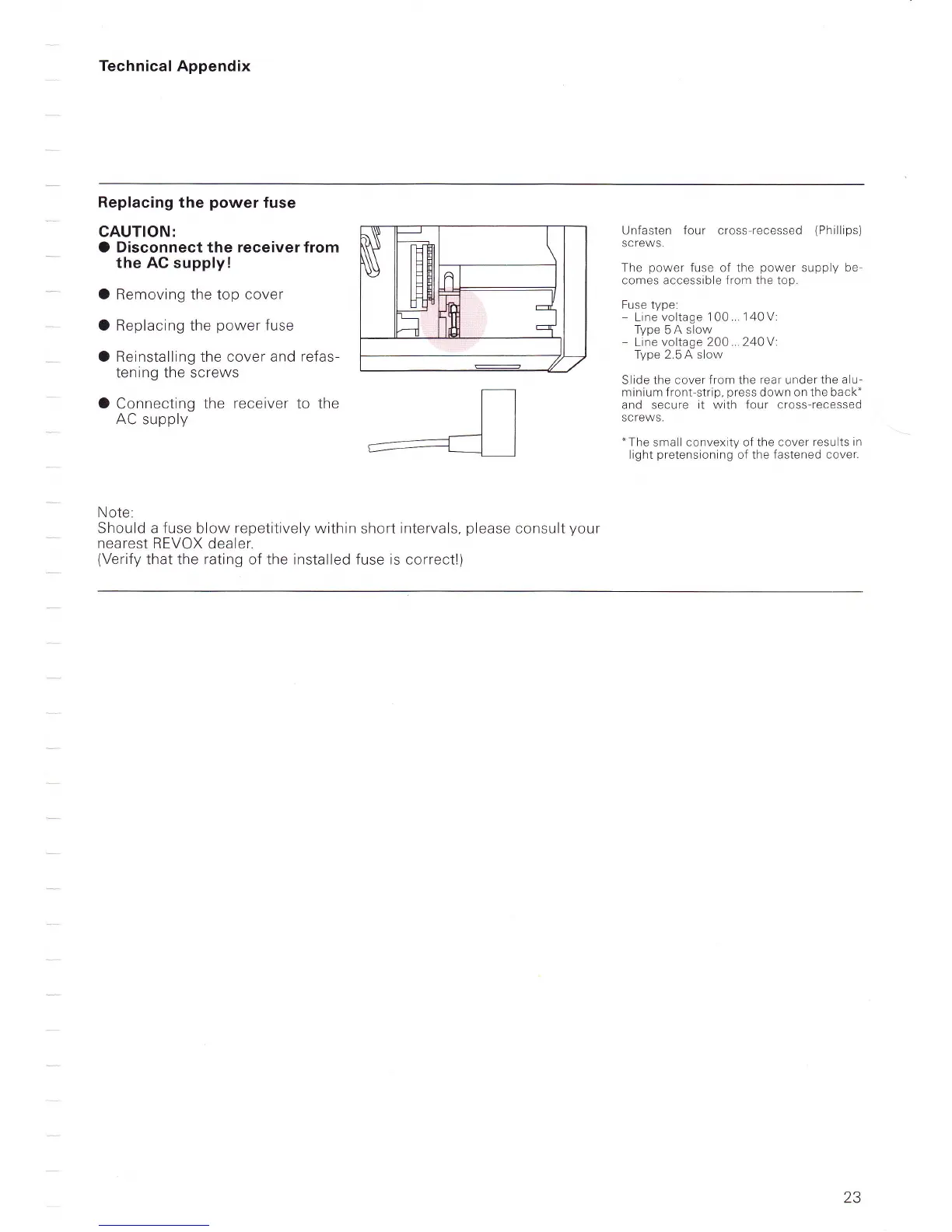

Technical Appendix
Replacing
the
power
fuse
CAUTION:
O Disconnect the receiver from
the AC supply!
Unfasten four cross-recessed
(Phillips)
SCTEWS,
The
power
fuse of the
power
supply be-
comes accessible from the top.
Fuse type:
-
Line
voltage 100...
'1
40V:
Type 5
A slow
-
Line
voltage 200...240V:
Type 2.5 A slow
Slide
the cover from the rear under the
alu-
minium front-strip,
press
down on the back-
and secure it with four cross-recessed
screws.
" The
small
convexity of the cover results
in
light
pretensioning
of the
fastened cover.
o
o
o
o
Removing the top cover
Replacing the
power
fuse
Reinstalling the cover and
refas-
tening the screws
Connecting
the
receiver
to the
AC
supply
Note:
Should a fuse
blow
repetitively within
nearest
REVOX
dealer.
(Verify
that the rating of the installed
short
intervals.
please
consult
your
fuse is
correct!)
