SEE CRITICAL HOSE CLAMP LOCATION NOTE
IN THE GENERAL COVERSION INSTRUCTIONS.
5
HOSE “D”
HOSE “E”
ROTATE
UNIT 90
5a - ROTATE UNIT 90°
5b - CUT 1/4" VENT HOSE TO FIT (APPROX. 6-1/2”) AND INSTALL AS SHOWN.
5c - CUT HOSE E AT LINE 1 - INSTALL
NOTE: MAKE SURE CUT IS STRAIGHT AND SQUARE
5d - CUT HOSE D (REMOVED IN STEP1) AT LINE 2 -INSTALL
5a
5b
5c
5d
NOTE:
USE SOAPY WATER TO FACILITATE EASY
HOSE AND TUBE ASSEMBLY
1/4” TUBE CUT
TO FIT (APPROX.
4”)
INSTALL
CUT
LINE 2
INSTALL
INSTALL
CUT LINE 1

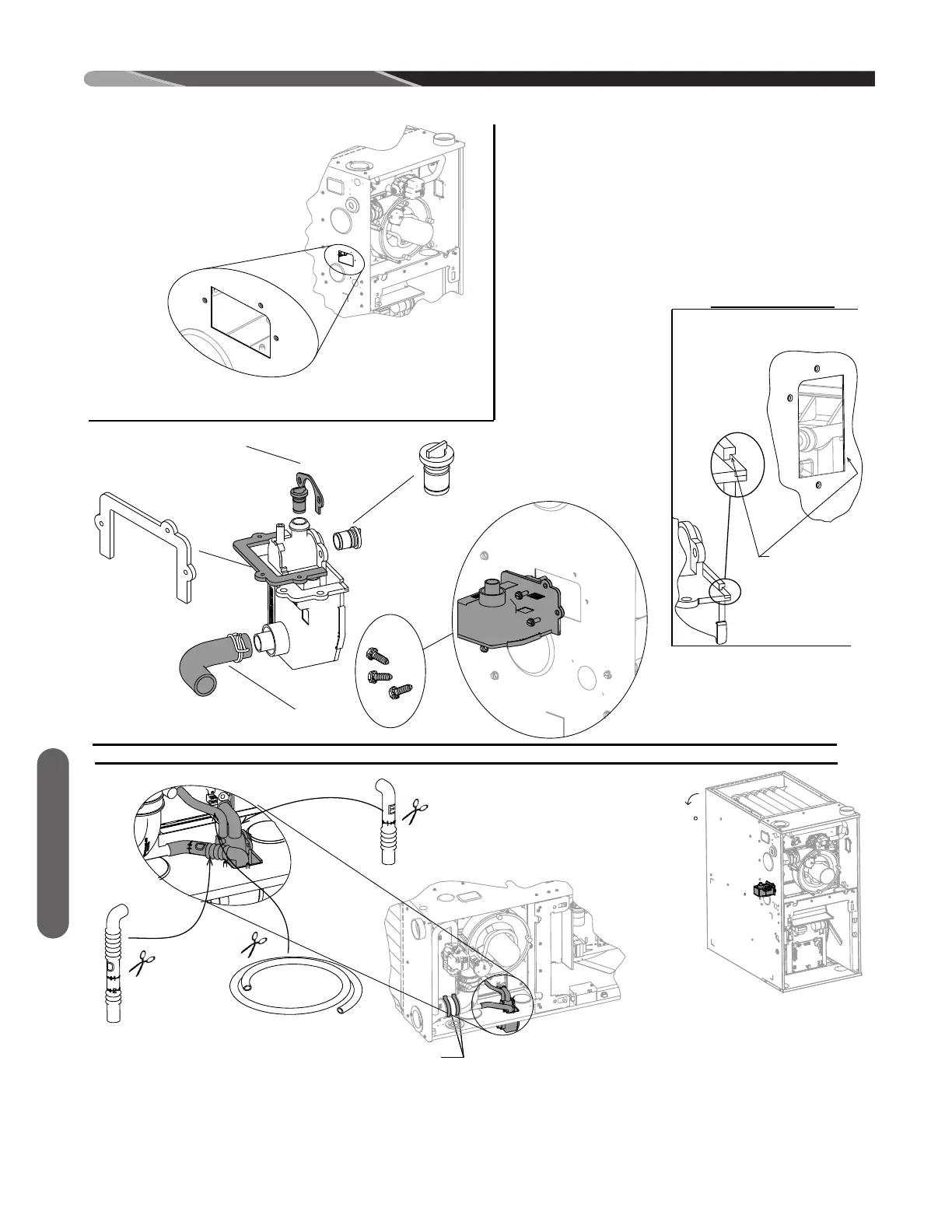

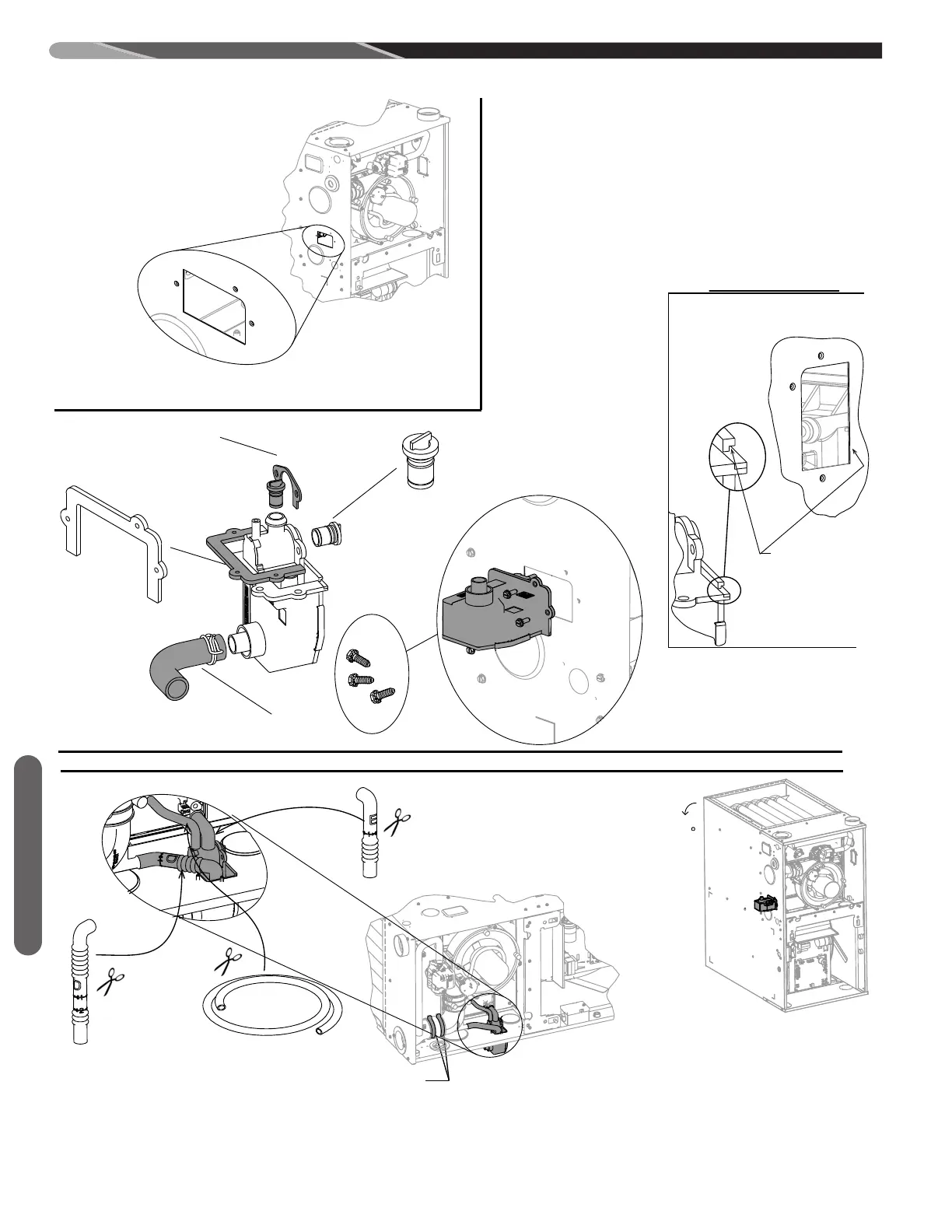

NOTE: TO PREVENT DAMAGE TO THE TRAP, THE INSTALLER
MAY ELECT TO INSTALL IT DURING A LATER STEP. (AFTER
THE UNIT IS ROTATED)
4
a - REMOVE METAL BRACKET AND.403" DRAIN PLUG - DISCARD.
4b - REMOVE HOSE “A” - DISCARD
4c - INSTALL Ø.559" CONDENSATE DRAIN PLUG
4d - CONDENSATE TRAP GASKET AS SHOWN
4e -
I
NSTALL CONDENSATE TRAP. MAKE SURE THE CHANNEL AT
THE LOCATION SHOWN IN THE “IMPORTANT SECTION”
ENGAGES THE EDGE OF THE JACKET AT THE LOCATION
SPECIFIED.
4f - SECURE USING 3 SCREWS.
4
(X3)
4e
INSTALL
CONDENSATE
TRAP GASKET
DISCARD
M
ETAL BRACKET
AND
.403 DRAIN PLUG
DISCARD
HOSE “A”
4a
4b
4c
4d
INSTALL
.559 DRAIN
PLUG
THIS CHANNEL
MUST ENGAGE
JACKET AT THIS
EDGE TO AVOID
AIR LEAKS TO
THE BURNER
VESTIBULE!
!! IMPORTANT !!
CONDENSATE TRAP
I
NFORMATION
DRILL (3) Ø 1/8" HOLES
PRE-DRILL (3) Ø 1/8" HOLES AS SHOWN FOR CONDENSATE TRAP.
3
ST-A1194-35-01
NOTE: REMAINING STEPS SHOWN WITH FURNACE IN HORIZONTAL RIGHT ORIENTATION
