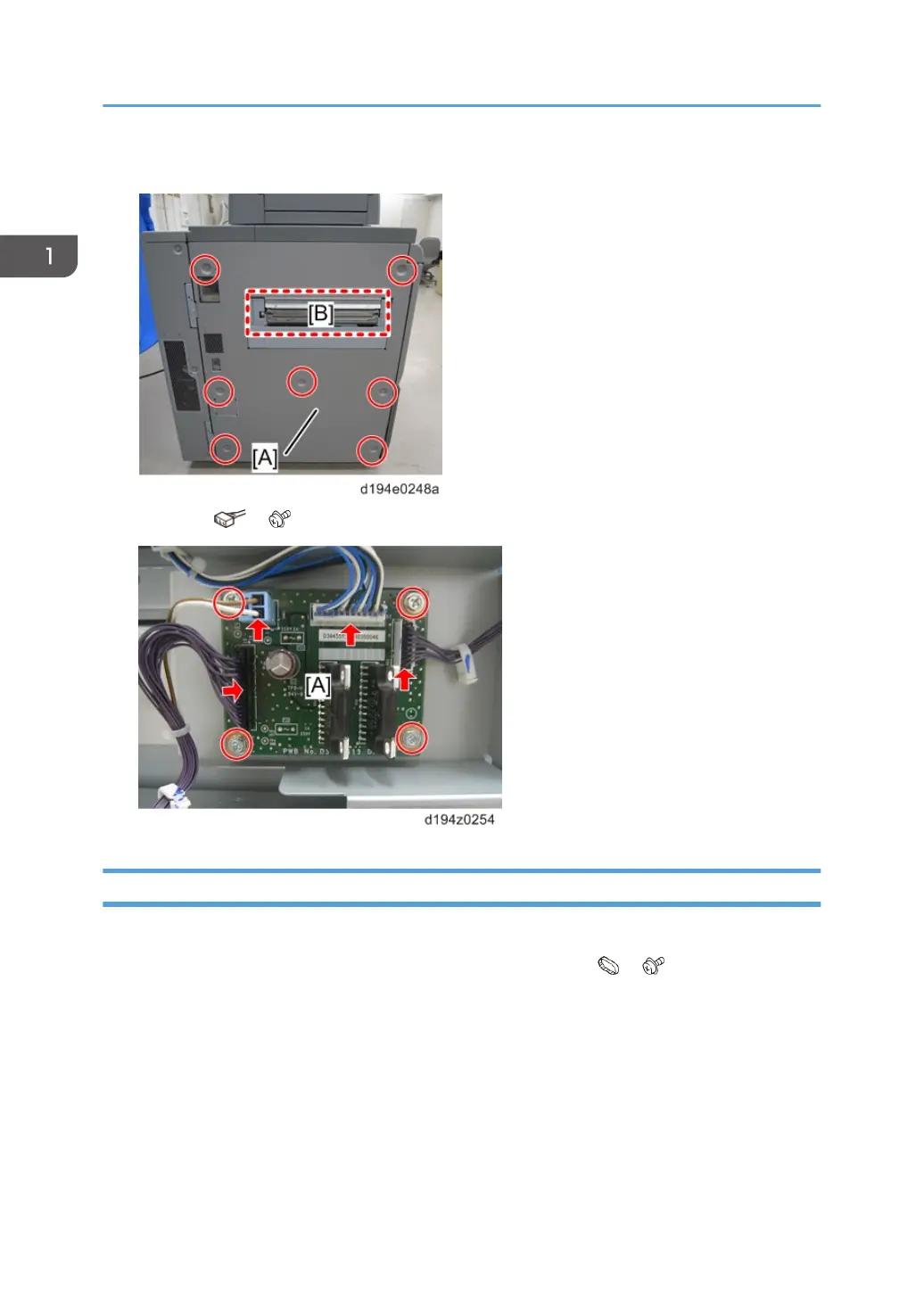

[B]: Decurl Unit
3. DDRB [A] ( x4, x4)
Decurl Unit Motor
1. Decurl unit (page 5 "Decurl Unit")
2.
Remove the timing belt [A] and then remove the motor bracket [B] (
X1, X2).
1. Replacement and Adjustment
