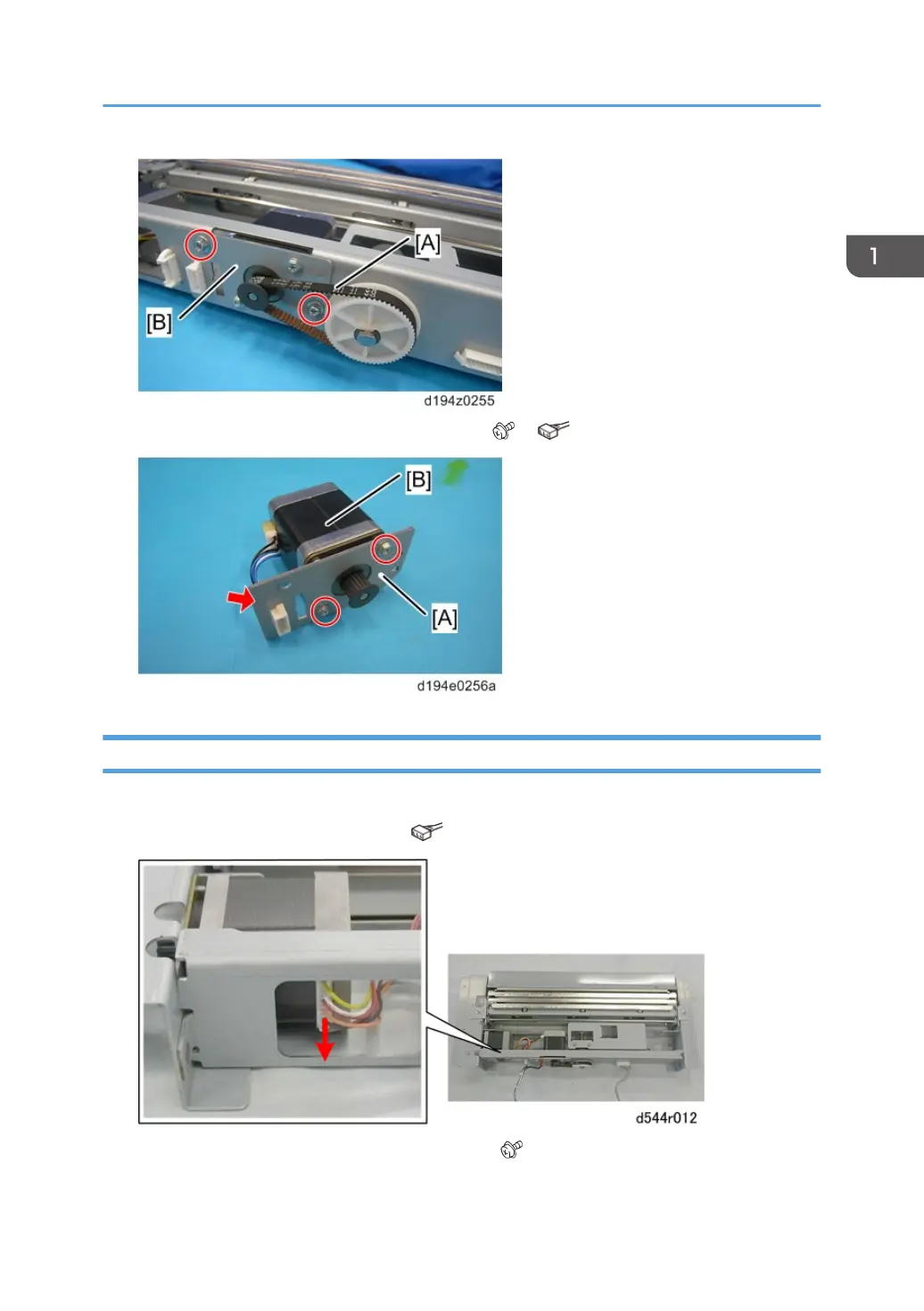

3. Separate the bracket [A] and decurl unit motor [B] ( X2, x1).
Decurl Feed Motor
1. Decurl unit (page 5 "Decurl Unit")
2.
On the rear side, disconnect the motor (
x1).
3. At the rear side of the unit [A], disconnect the motor ( x2).
4. Pull the motor [B] out from rear to front.
Decurl Unit and Electrical Components
11
