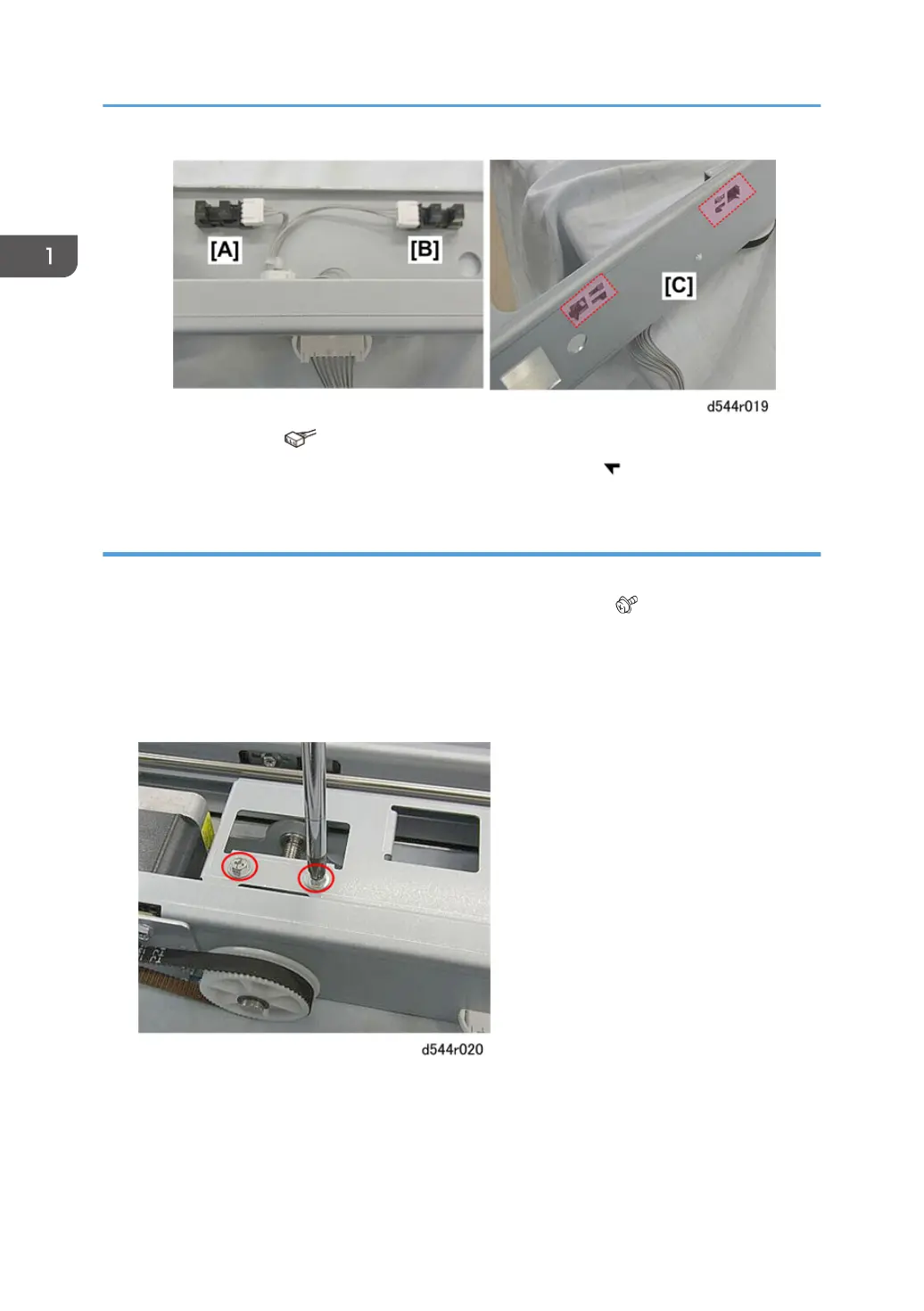

6. Disconnect a sensor ( x1).
7.
On the other side [C] (shown above) of the unit, release the sensor (
x3).
Re-installation
1. Set the decurl unit assembly in the frame.
2.
Fasten the tongue bracket before you attach the front and rear racks (
x2).
•
This ensures that the assembly is perfectly aligned so that the front and rear racks will mesh
correctly with the front and rear pinion gears below.
• When you re-attach the front and rear rack, make sure that the racks are flat and meshed with
the pinion gears below before you re-fasten the screws.
1. Replacement and Adjustment
14
