2. Paper feed belt unit (page 16 "Paper Feed Belt Unit")

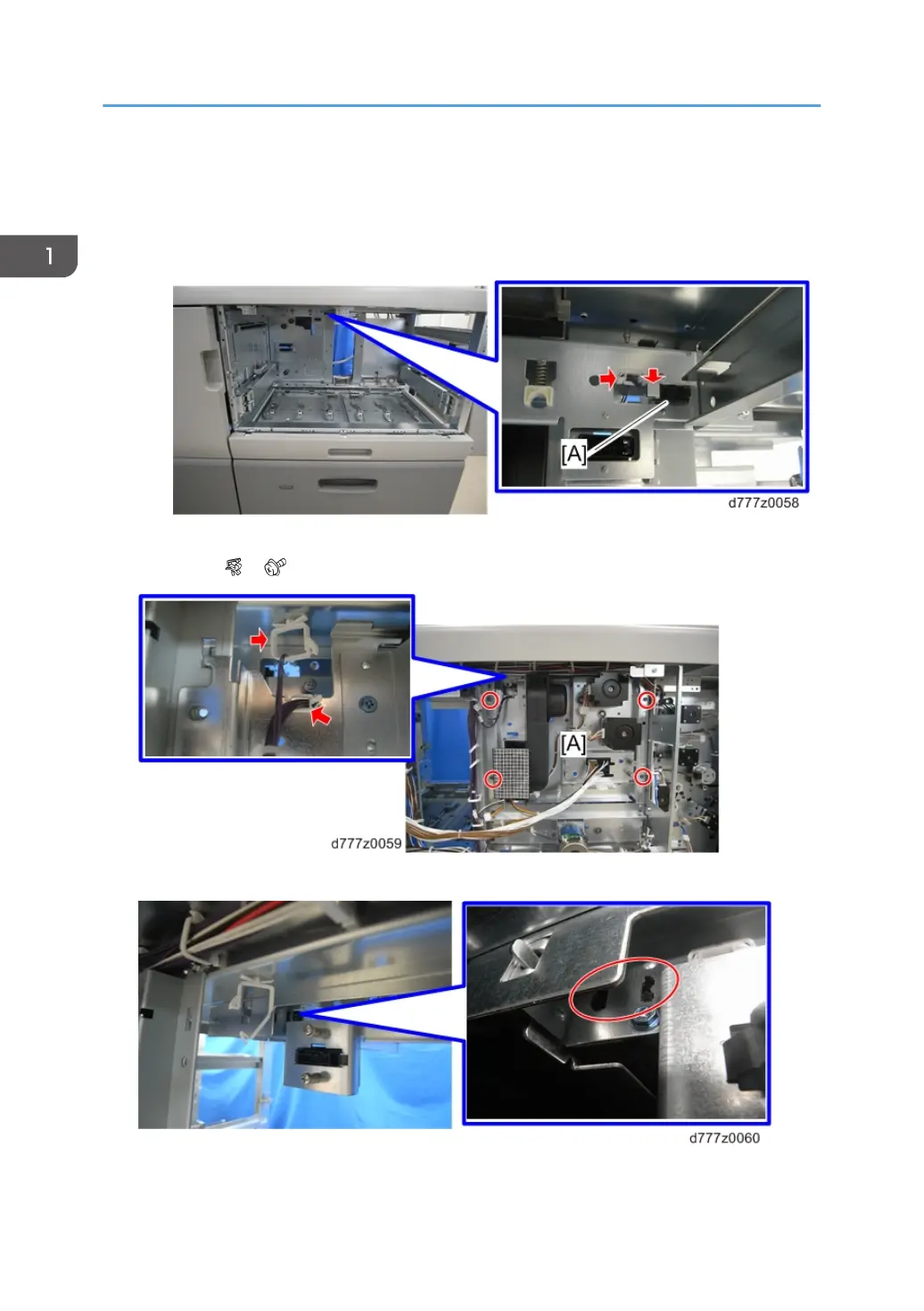

3. Tray upper limit sensor [A]
• The sensor pawl is on the rear of the frame. Access it from the rear of the main unit if it proves
difficult to remove it from the front.
4. Remove the rear right and left covers (page 8 "Rear Right Cover",page 8 "Rear Left Cover").
5. Bracket [A] ( x2, x4)
6. Remove the pawl of the tray upper limit sensor.
