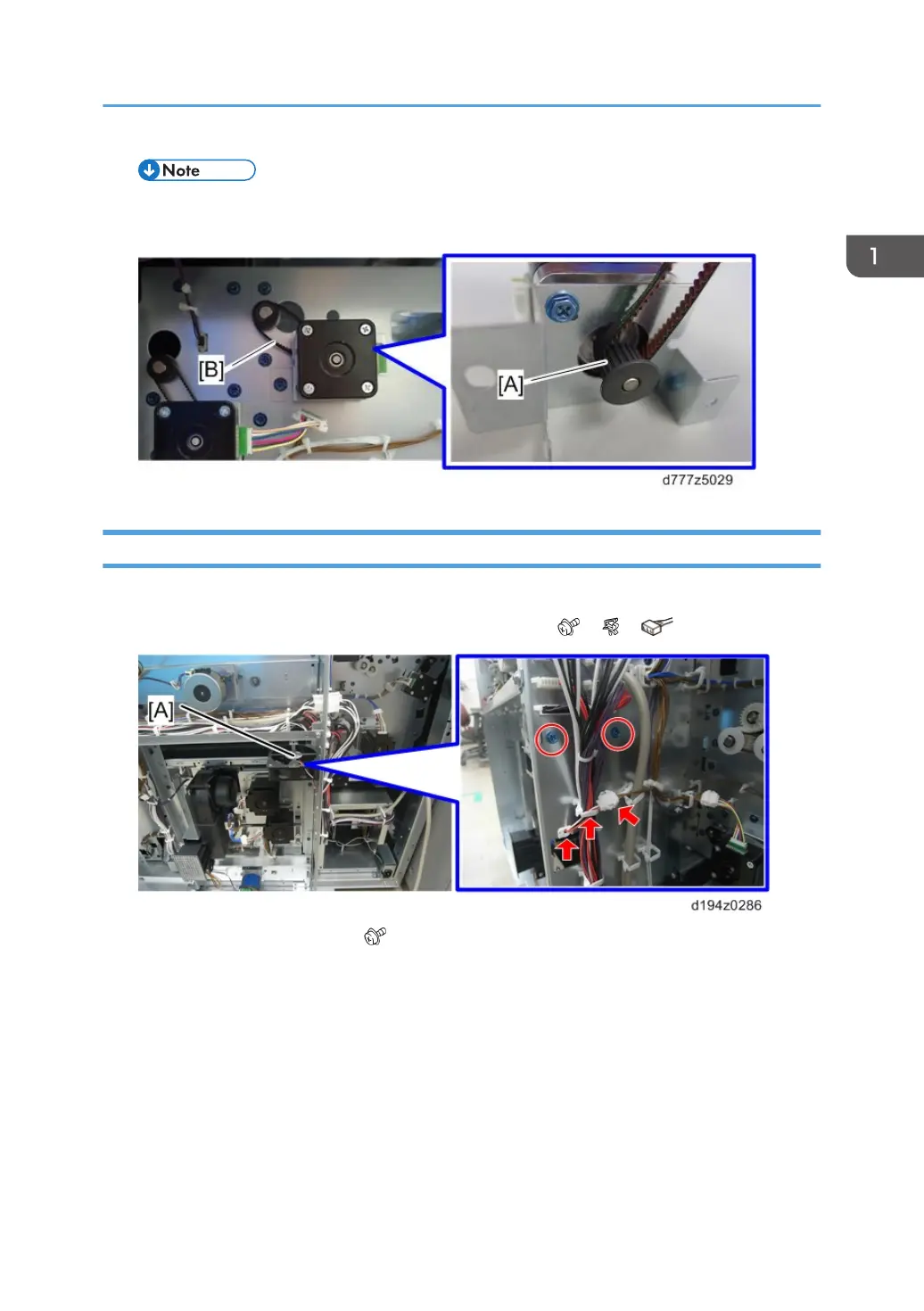

• If the timing belt is not correctly installed on the motor gear [A], the timing belt [B] may be too
loose.
Transport Motor Cooling Fan
1. Remove the rear right and left covers (page 8 "Rear Right Cover", page 8 "Rear Left Cover").
2. Remove the transport motor cooling fan [A] with the bracket ( x2, x2, x1).
3. Transport motor cooling fan [A] ( x2)
Rear Side
57
