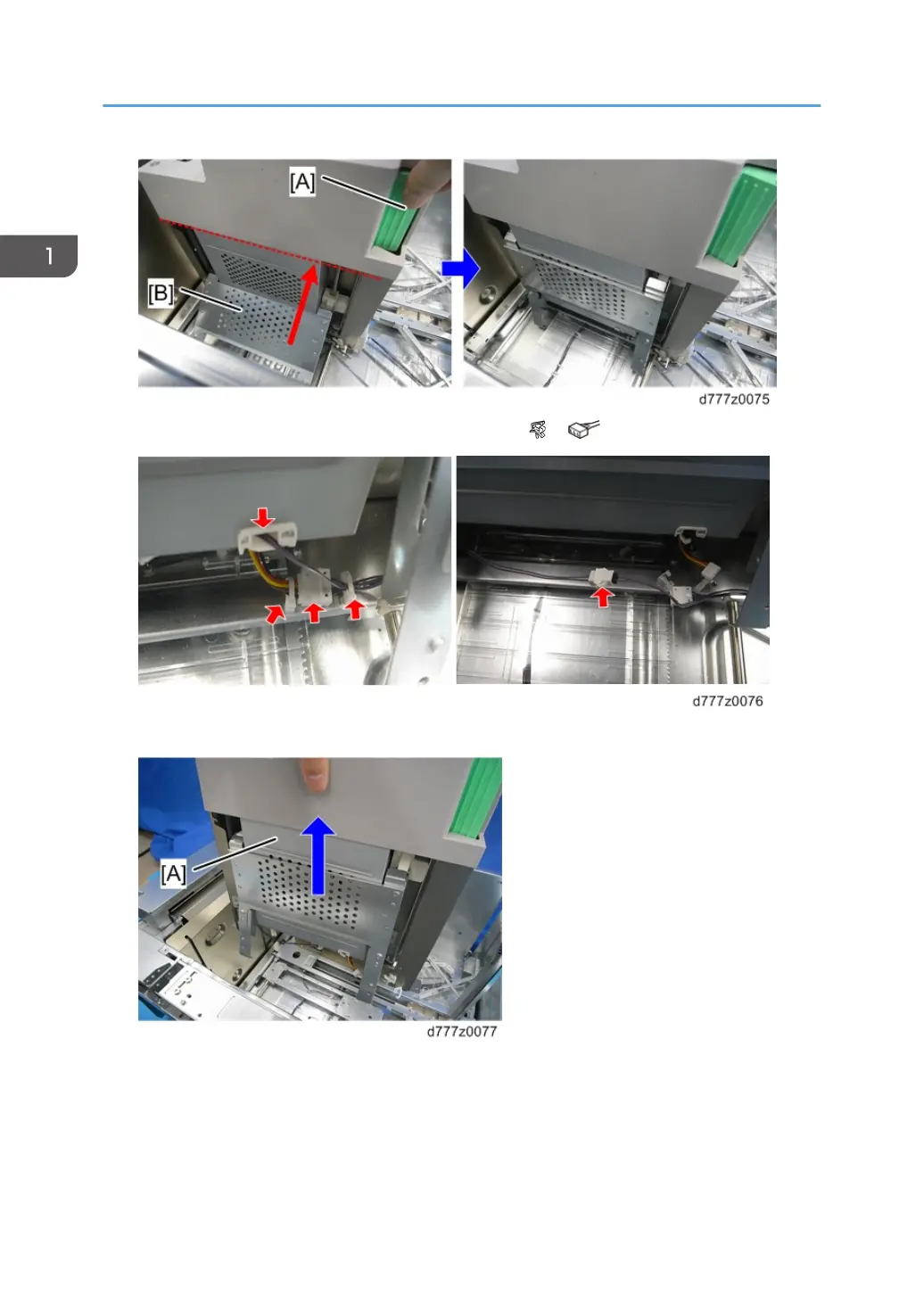

7. Remove the connector from the bottom of the side fence ( x3, x2).
8. Raise the side fence (front) [A] and remove it.
9. Install the spring on the end face shaft as shown in the photo.
1. Replacement and Adjustment
40
