Administrator Tools
63
2
Deleting the progra
mmed LDAP server
A

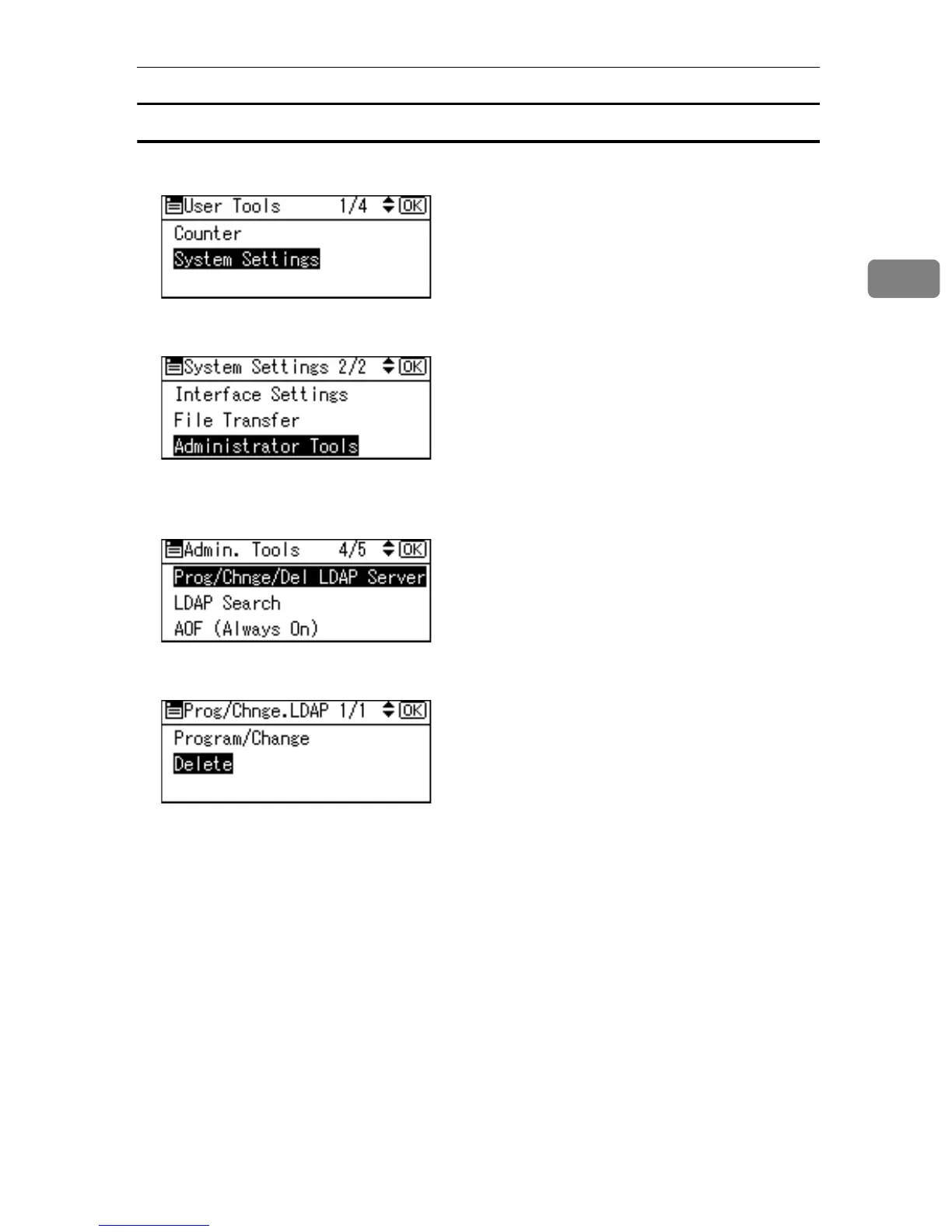

Select
[
System Settings
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
B
Select
[
Administrator Tools
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
C
Select
[
Prog/Chnge/Del LDAP Server
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
D
Select
[
Delete
]
using
{U}
or
{T}
, and then press the
{
OK
}
key.
E
Select the LDAP server you want to delete using
{U}
or
{T}
, and then press
the
{
OK
}
key.
F
Press
[
Yes
]
.
150
152
