Display
15
1
Display
The display panel shows machine status, error messages, and function menus.
When you select or specify an item on the display panel, it is highlighted like
.
Important
❒ A force or impact of more than 30 N (about 3 kgf) will damage the display.
The copy display is set as the default screen when the machine is turned on.

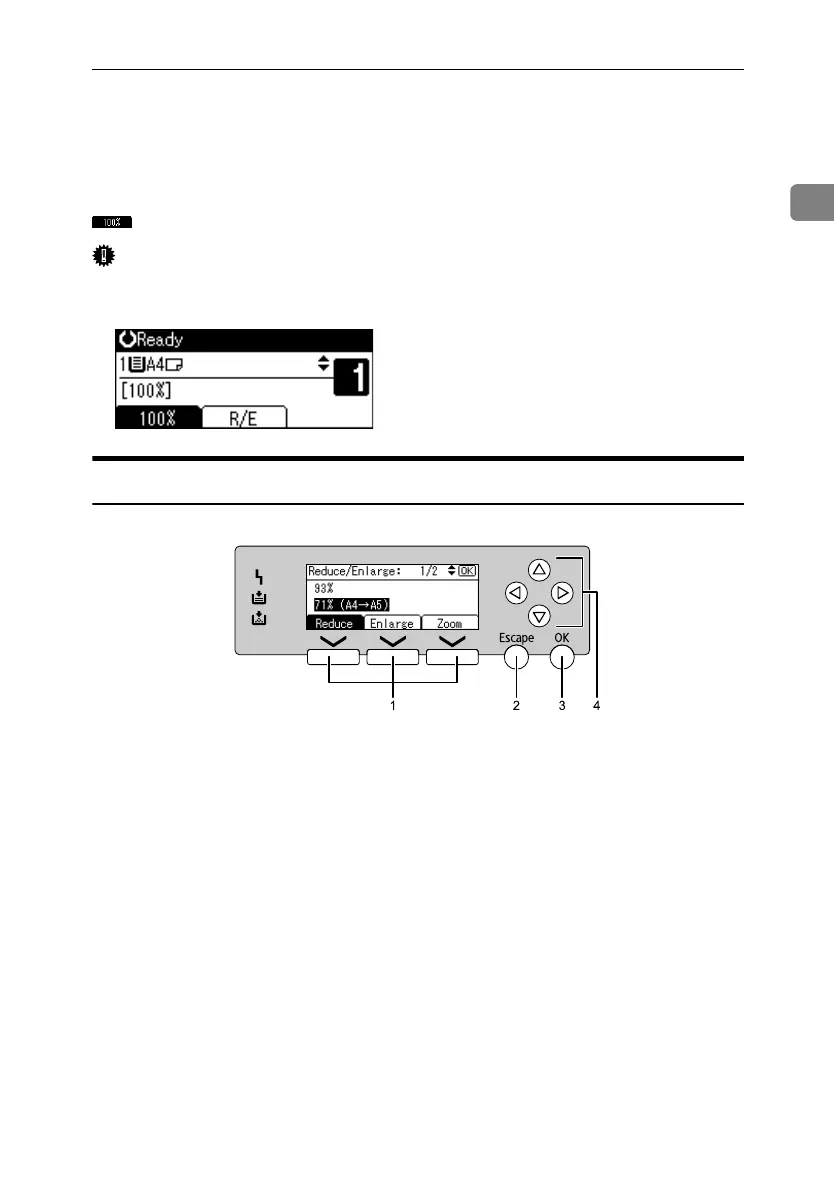

Reading the Display and Using Keys
1. Selection keys
Correspond to items at the bottom line on
the display.
Example: The copy display
• When the instruction “press [Reduce]”
appears in this manual, press the left
selection key.
• When the instruction “press [Enlarge]”
appears in this manual, press the cen-
tre selection key.
• When the instruction “press [Zoom]”
appears in this manual, press the right
selection key.
2. {Escape} key
Press to cancel an operation or return to
the previous display.
3. {OK} key
Press to set a selected item or entered nu-
meric value.
4. Scroll keys
Press to move the cursor in each direc-
tion, step by step.
When {U}, {T}, {V}, or {W} appears in
this manual, press the scroll key of the
same direction.
ARC039S
