Appendices

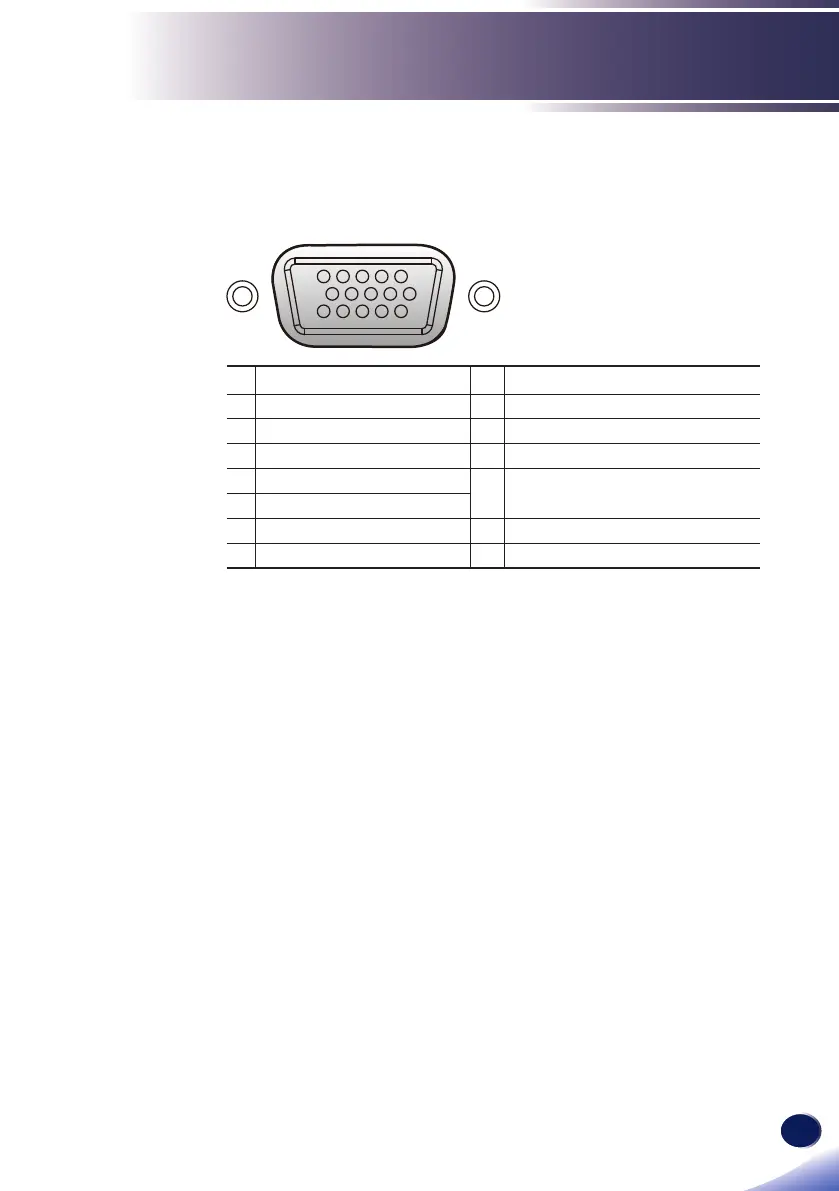

Congurations of Terminals
Terminal : Analog RGB (Mini D-sub 15 pin)
1 Red (R/Cr) Input/R Output 9 DDC 5V / NC
2 Green (G/Y) Input/G Output 10 Ground (Ver. sync.)
3 Blue (B/Cb) Input/B Output 11 ICP download
4 ICP download / NC 12 DDC Data / NC
5 Ground (Horiz.sync.)
13
Horiz. sync. Input / Output (Composite H/V
sync. Input)
6 Ground (Red)
7 Ground (Green) 14 Vert. sync. Input / Output
8 Ground (Blue) 15 DDC CLK / NC
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
