RICOH Ri 1000
User Manual
19

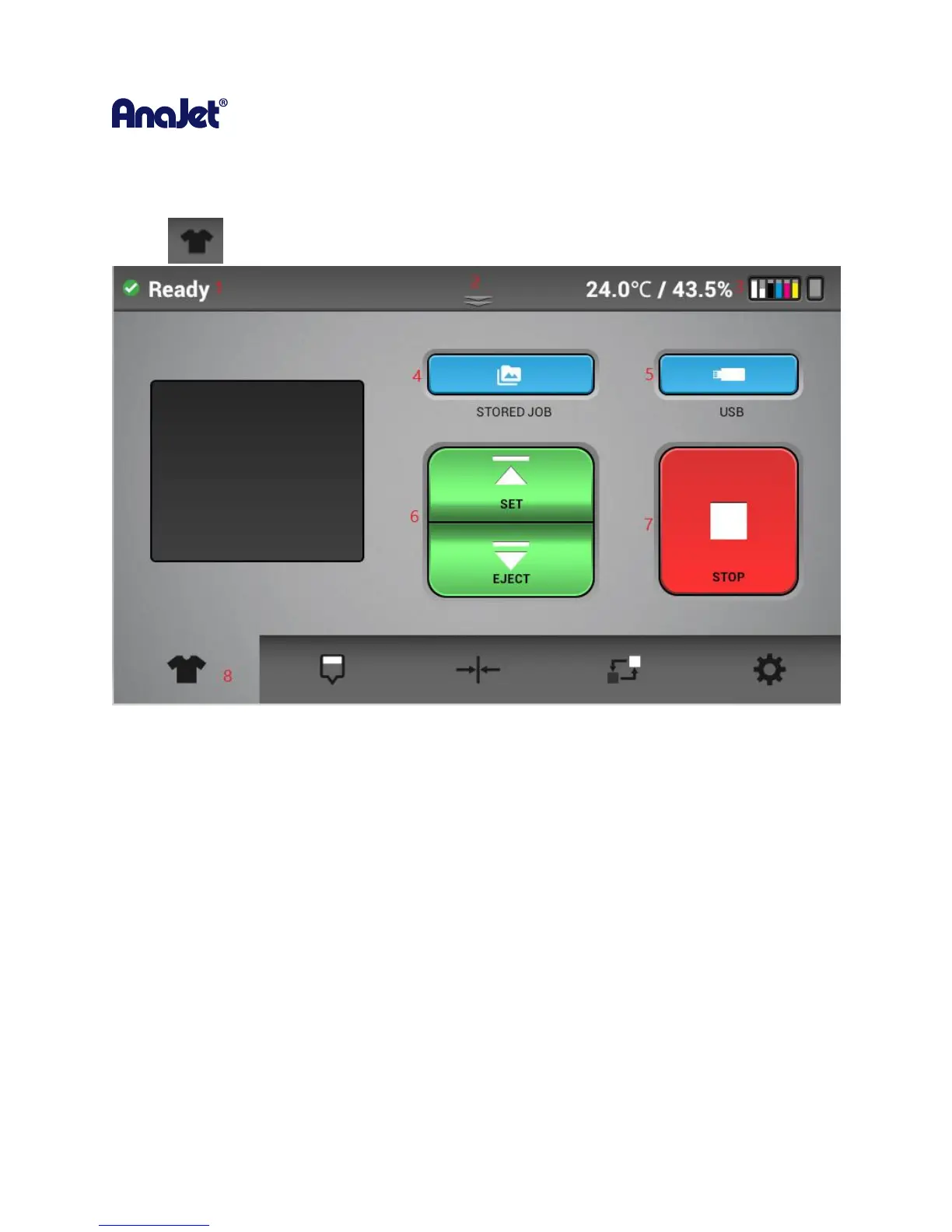

1.5 Control Panel Functions
[Print Tab]
① Displays the printer status.
② Status Bar- TAP/Drag down to open status screen menu (shown below)
③ Displays printer temperature, amount of ink in ink cartridges and waste bottle capacity level.
④ Stored Job folder- Check the recent images used for printing. Print directly from the stored folder
or from jobs sent via network cable
⑤ Choose print job from USB device
⑥ SET/EJECT- will move the table into the print ready position (table to the rear of the printer) or
EJECT the table to allow the media to be place onto the table.
⑦ STOP- will stop any current movement of the table and allows to cancel print job
⑧ Function Tabs

Ricoh Ri 1000 Specifications

General

Print Technology	Inkjet
Print Resolution	1200 x 1200 dpi
Power Requirements	AC 100-240V, 50/60Hz
Memory	2 GB
Ink Type	Pigment Ink
Ink Colors	CMYK
Connectivity	USB
Operating System Support	Windows
Supported Media Types	Cotton, Polyester
