1.Detailed Descriptions
7

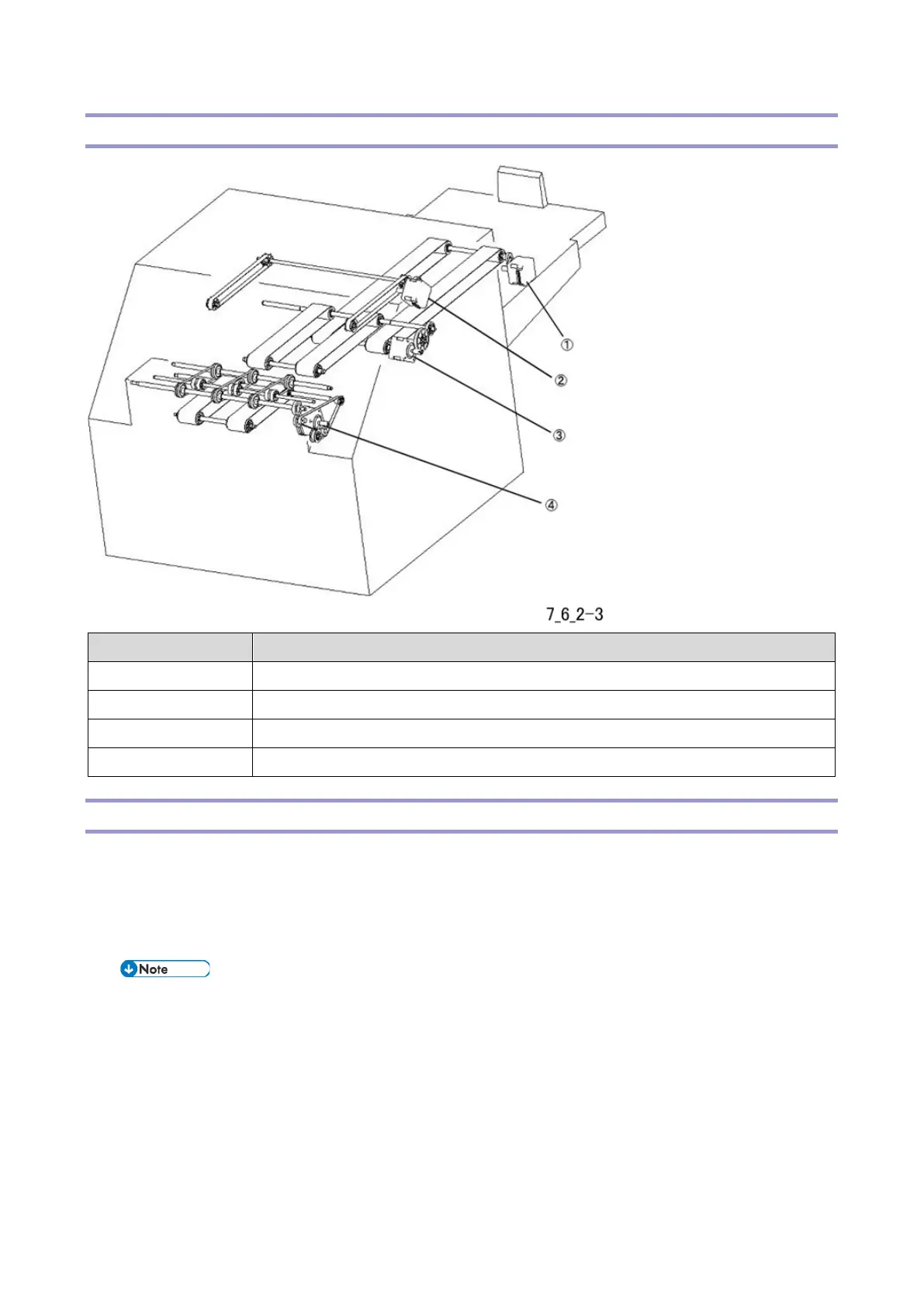

Motor Layout
No. Part
1 Tray motor
2 Cut position motor
3 Exit motor
4 Feed motor
Unlocking the Cutter
If an SC is generated due to cutter lock, release it using the following method.
1. Turn the power OFF and then ON
If the cutter was locked due to reasons such as a common jam, after restarting the machine the
cutter will rotate in reverse and recover automatically.
• When the cutter is locked, the cutting edge of the cutter may be chipped. After unlocking
the cutter, check if there is any problem with the cutting edge.
2. If the problem is not resolved even after turning the power OFF and then ON, use the cutter shifting
button at the lower left of the board to move the cutter to its home position.
Pressing the button once will trigger a recovery movement (cutter reverse rotation) for 0.1 sec only.
Holding down the button will not lengthen the cutter's reverse rotation. Therefore, press the button
several times slowly (at about 1 sec pitch).
To Next Page
