2.Replacement and Adjustment
14

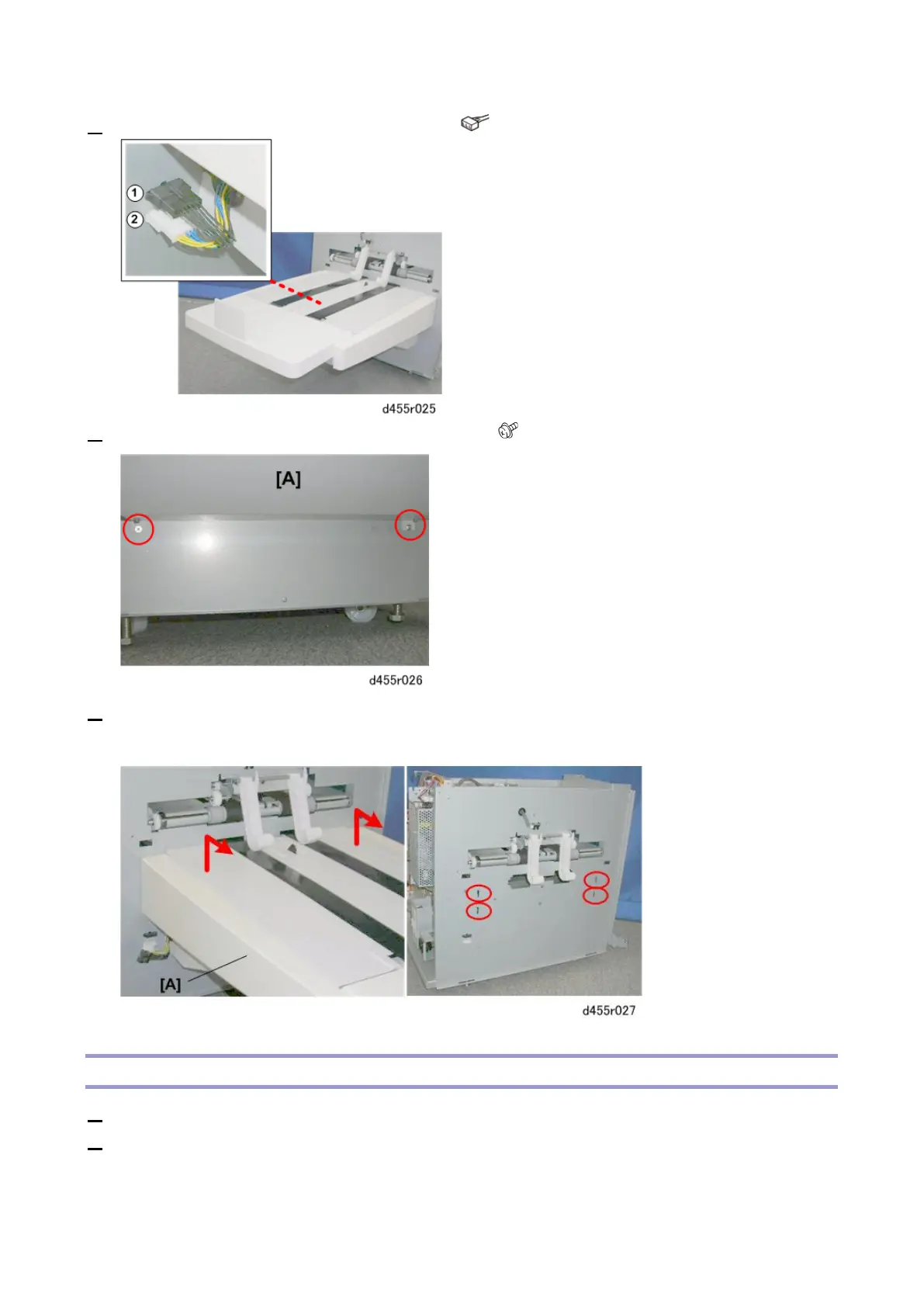

4. Remove the connectors in the rear left corner. ( x2).
5. Remove the screws near the bottom of the tray [A]. ( x2).
6. Grip both sides of the tray [A]. Lift it straight up to disengage the four metal hooks from their holes,
and then pull the tray away from the side of the trimmer unit.
Feed Unit
1. Remove the rear cover. (Rear Cover)
2. Remove the top cover. (Top Cover)
