Rigol DS1104Z Plus User Manual

RIGOL Chapter 16 Remote Control
16-2 MSO1000Z/DS1000Z User’s Guide
Remote Control via USB
1. Connect the device
Connect the USB Device interface of the oscilloscope at the rear panel with the
USB Host interface of your PC using a USB cable.
2. Install the USB driver
This oscilloscope is a USB-TMC device. After you connect the oscilloscope to the
PC and turn both on for the first time (the oscilloscope is automatically
configured to USB interface; at the same time, make sure that Utility  IO
Setting  USB Device is set to "Computer"), the Found New Hardware

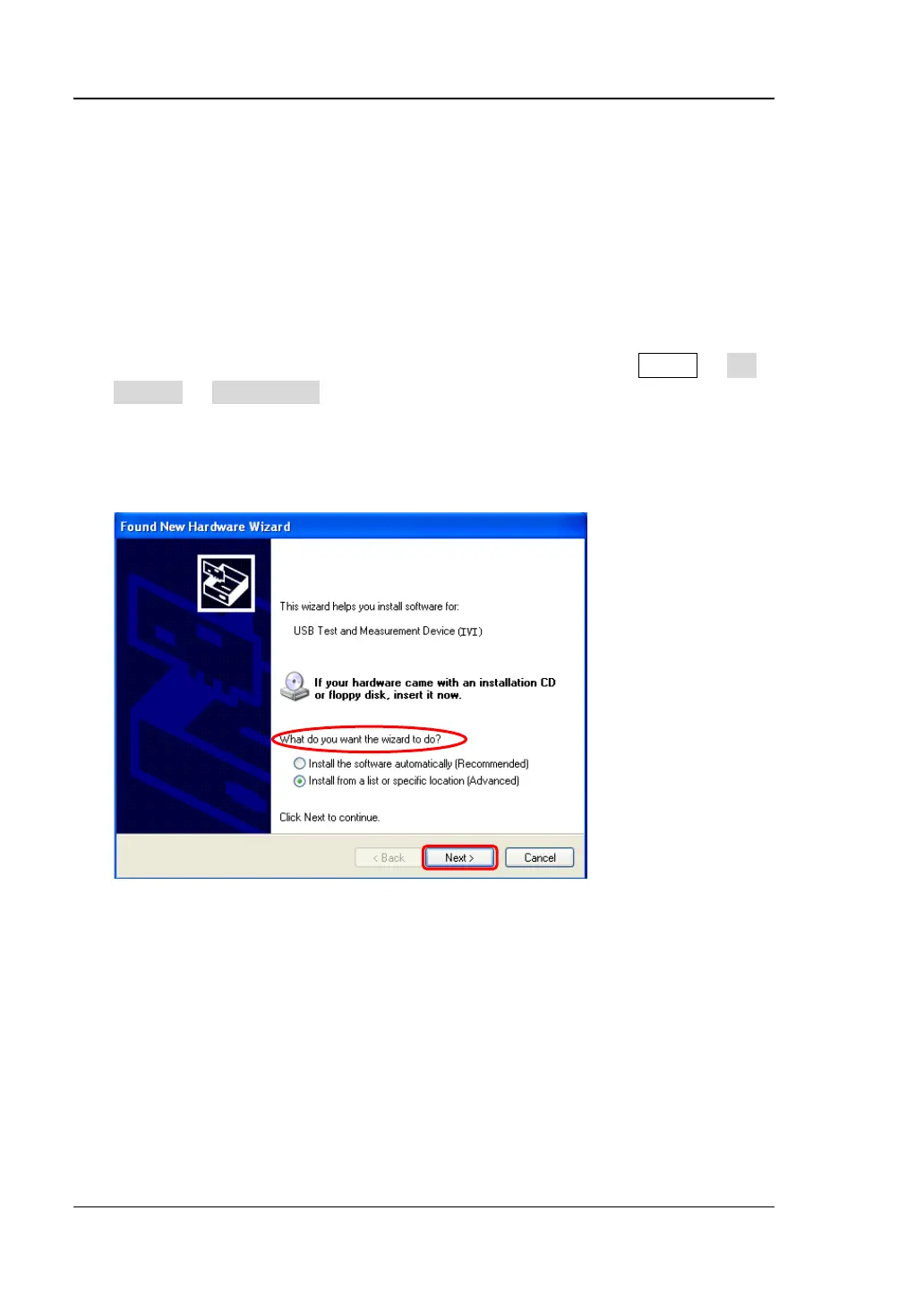

Wizard as shown in the figure below is displayed on the PC. Please install the
"USB Test and Measurement Device (IVI)" driver following the directions in the
wizard. The steps are as follows.
