Chapter 6 Operations and Measurements RIGOL
MSO4000/DS4000 User’s Guide 6-21

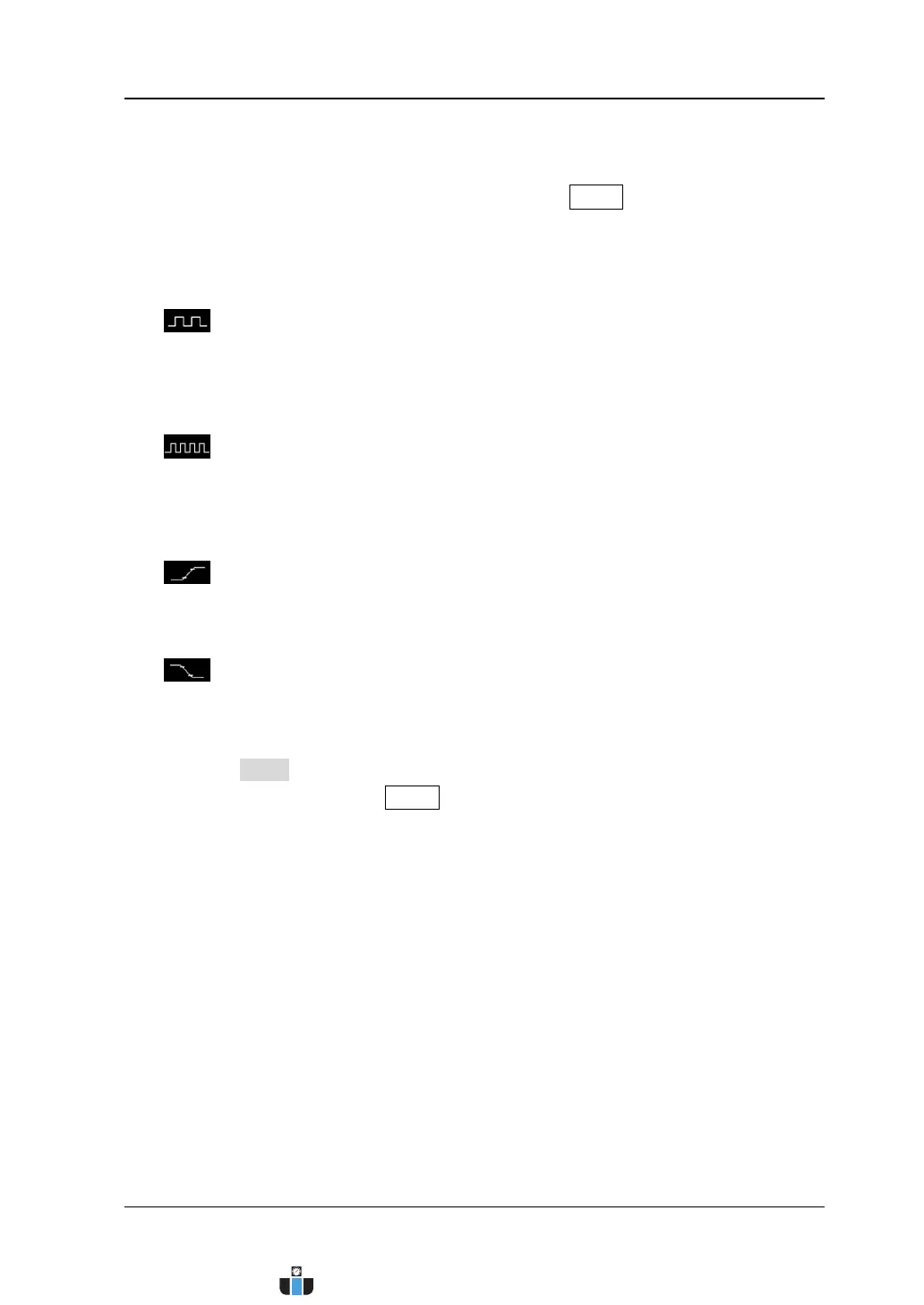

Quick Measurement after AUTO
When a valid signal is input into the oscilloscop, press AUTO to enable the waveform
auto setting function and open the auto setting menu. In this menu, pressing the
specified menu the oscilloscope will execute the corresponding operation and display
the corresponding waveform and measurement results.
 : press this softkey and the oscillscope automatically displays a single
period of the waveform on the screen and measures the “Period” and
“Frequency” of the current signal within the single period. The measurement
results are displayed at the bottom of the screen.

: press this softkey and the oscillscope automatically displays multiple
periods of the waveform on the screen and measures the “Period” and
“Frequency” of the current signal within the multiple periods displayed on the
screen. The measurement results are displayed at the bottom of the screen.
 : press this softkey and the oscillsocpe displays a rising edge of the signal
on the screen and measure the “Rise Time” of the rising edge currently
displayed. The measurement result is displayed at the bottom of the screen.
 : press this softkey and the oscillsocpe displays a falling edge of the signal
on the screen and measure the “Fall Time” of the falling edge currently displayed.
The measurement result is displayed at the bottom of the screen.
 Pressing Undo will automatically give up the auto setting and restore the
parameter settings before AUTO is pressed.
Note: The waveform auto setting function requires that the frequency of the sine
under test should be no lower than 20 Hz. If the parameter exceeds the limit, the
waveform auto setting function might be invalid.
