To Prepare for Use
To Connect to AC Power
The input AC power requirements of the oscilloscope are 100 V-240 V, 45
Hz-440 Hz. Please use the power cord provided in the accessories to connect
the oscilloscope to the AC power source via the power cord connector, as shown
in Figure 4.

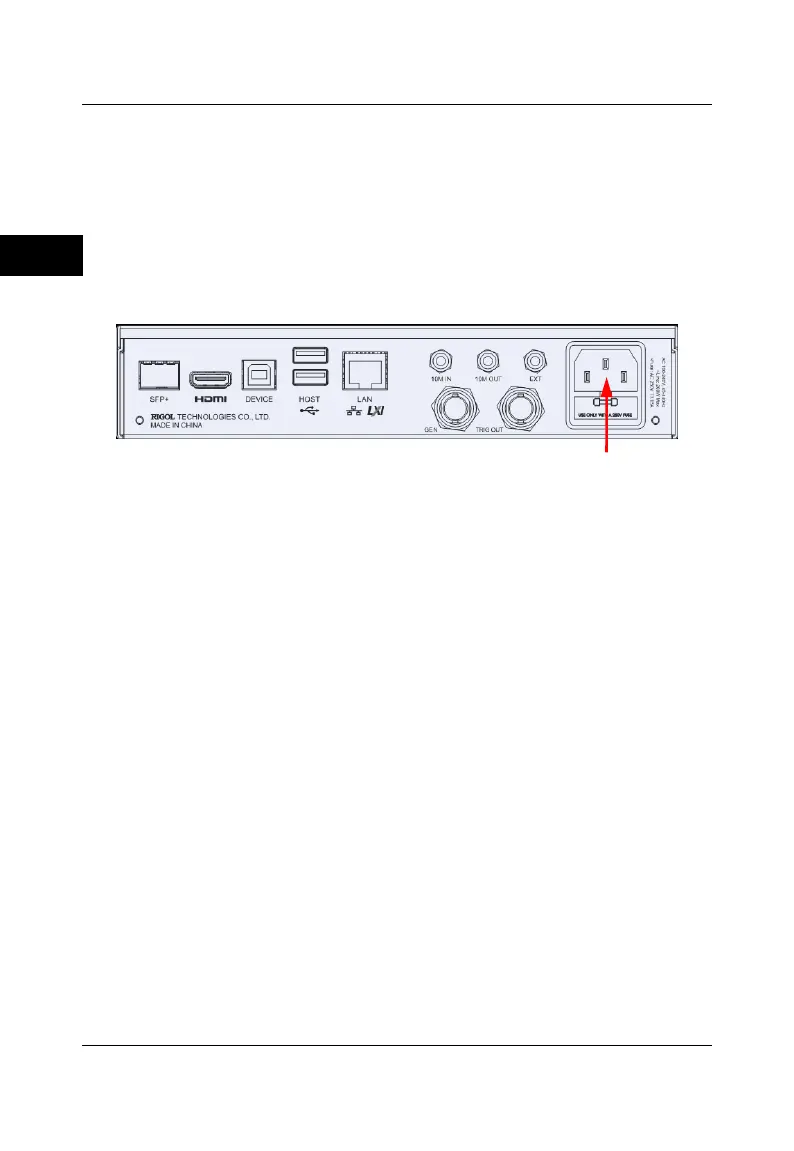

Figure 4 To Connect to AC Power
To Connect to the Display and the Control Device
DS8000-R series does not have an LCD display or monitor. To set the
parameters and view the measurement results, you need to connect it to an
external control and display device. You can use the externally connected
monitor, mouse, or keyboard to control the DS8000-R series oscilloscope. Also,
you can use the standard Web Control software to realize remote control of the
oscilloscope.
⚫ To connect to the display and the control device, the mouse, and
the keypad board
You can configure the parameters for the function menu, observe acquired
waveforms, measurement results, and other information on the user
interface through the display device (e.g. LCD, TV, projector, etc.)
externally connected via the rear-panel HDMI interface. The keyboard and
mouse can be connected to the oscilloscope via the USB interface. In this
way, you can input values or strings with the externally connected keypad
and mouse; scroll with the mouse to select the desired parameter and
adjust the parameter value; drag the mouse cursor to make dragging
operation on the screen.
Note:
The operations for controlling the DS8000-R series oscilloscope in this
manual are, by default, described based on the externally connected
mouse operation. The screen mentioned in this manual refers to the
