Chapter 6 Operations and Measurements RIGOL
DS8000-R User Guide 6-41

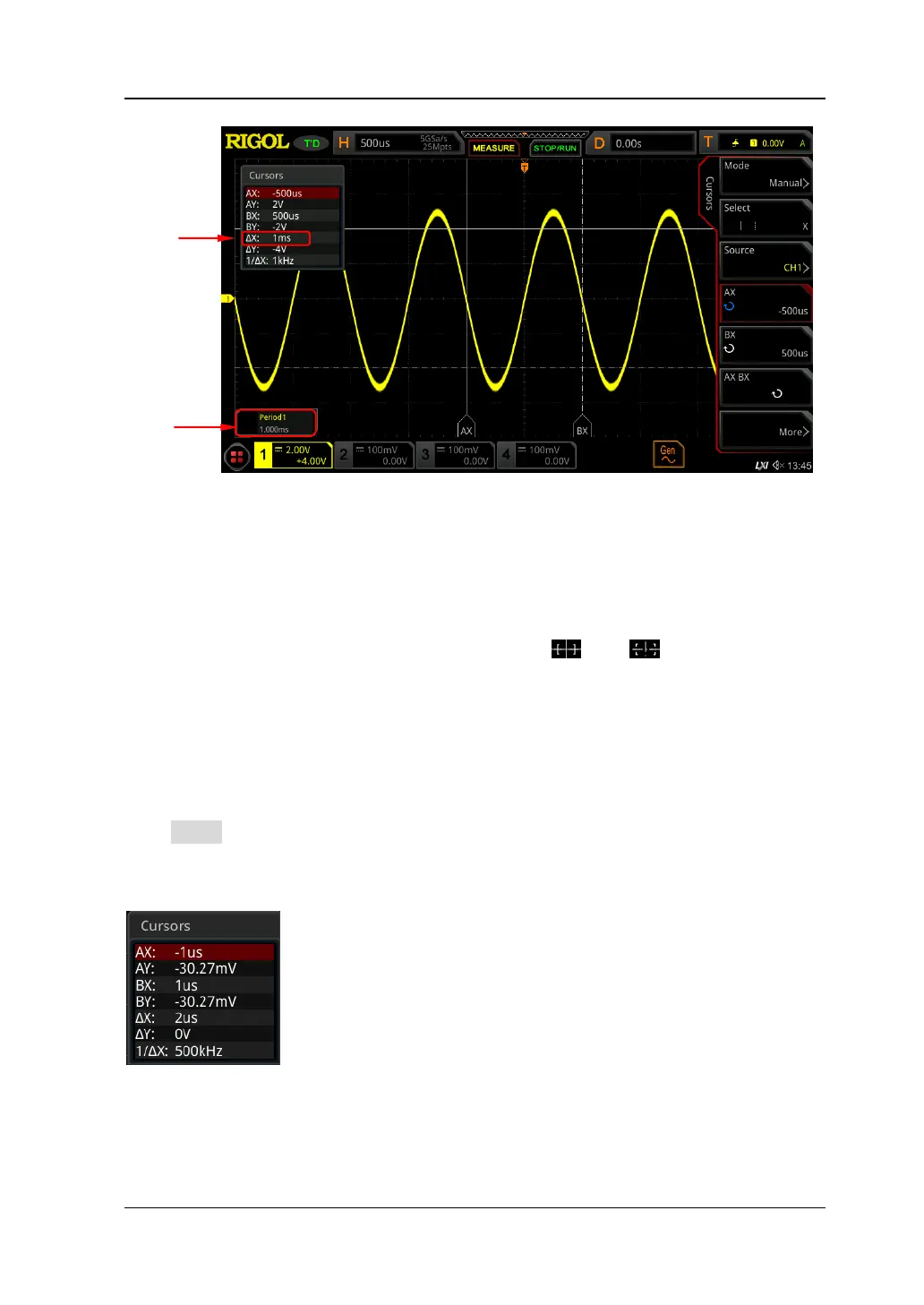

Figure 6-3 Manual Cursor Measurement Example
Track Mode
In this mode, you can adjust the two pairs of cursors (Cursor A and Cursor B) to
measure the X and Y values on two different sources respectively. The points being
measured on Cursor A and Cursor B are marked by and respectively. When
the cursors are moved horizontally/vertically, the markers will position on the
waveform automatically. When the waveform is expanded or compressed
horizontally/vertically, the markers will track the points being marked at the last
adjustment of the cursors.
Note: When the delayed sweep function is enabled, the track cursor is within the
expanded area.
Click Mode to select "Track" to enable the cursor track function, and the
measurement results will be displayed at the upper-left corner of the screen, as
shown in the following figure. When you change the measurement parameter for the
track mode, the measurement results will be changed accordingly.
âš« AX: indicates the X value at Cursor A.
âš« AY: indicates the Y value at Cursor A.
âš« BX: indicates the X value at Cursor B.
