Installation/Service/Owner's Manual Dok‑Commander
®
Publication: AMEN00070 2020-01-30 21
ELECTRICAL

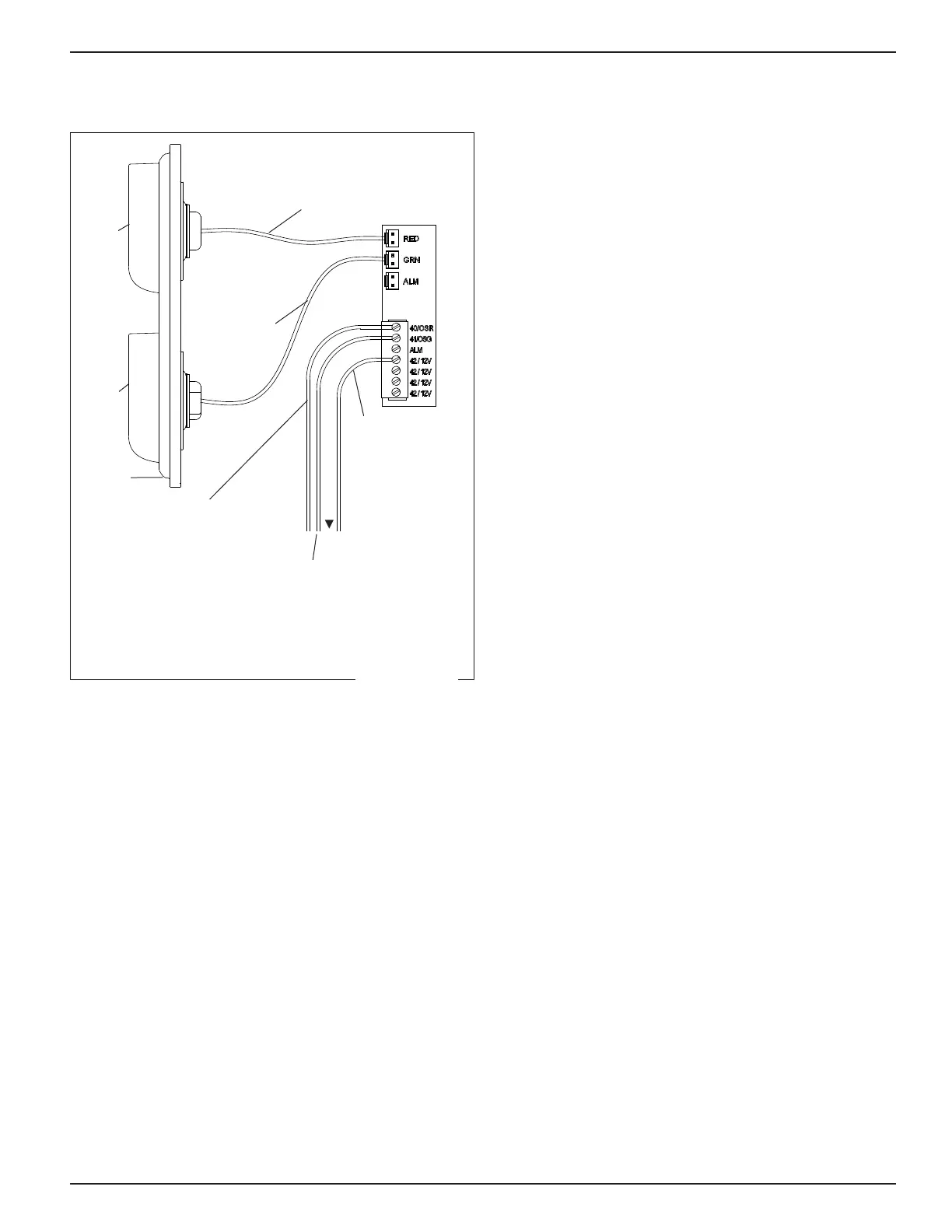

Wiring: Outside Light Box
◄ To Controls
Red
Lamp
Green
Lamp
Light Box
Cover
#40 Wire
+12/VDC
Red Light
− OSR Term for Gen2
− OSR Term for URC
− 40 Term for SDL
Green
Light
#41 Wire
+12/VDC
Green Light
− OSG Term for Gen2
− OSG Term for URC
− 41 Term for SDL
#42 Wire
− Any pin on J2 term
− For Gen2
− OSPWR term
for URC
− 42 term on SDL
Red
Light
Figure 6
