RITE-HITE Dok-Commander User Manual

Dok‑Commander
®
Installation/Service/Owner's Manual Rite‑Hite
®
36 Publication: AMEN00070 2020-01-30

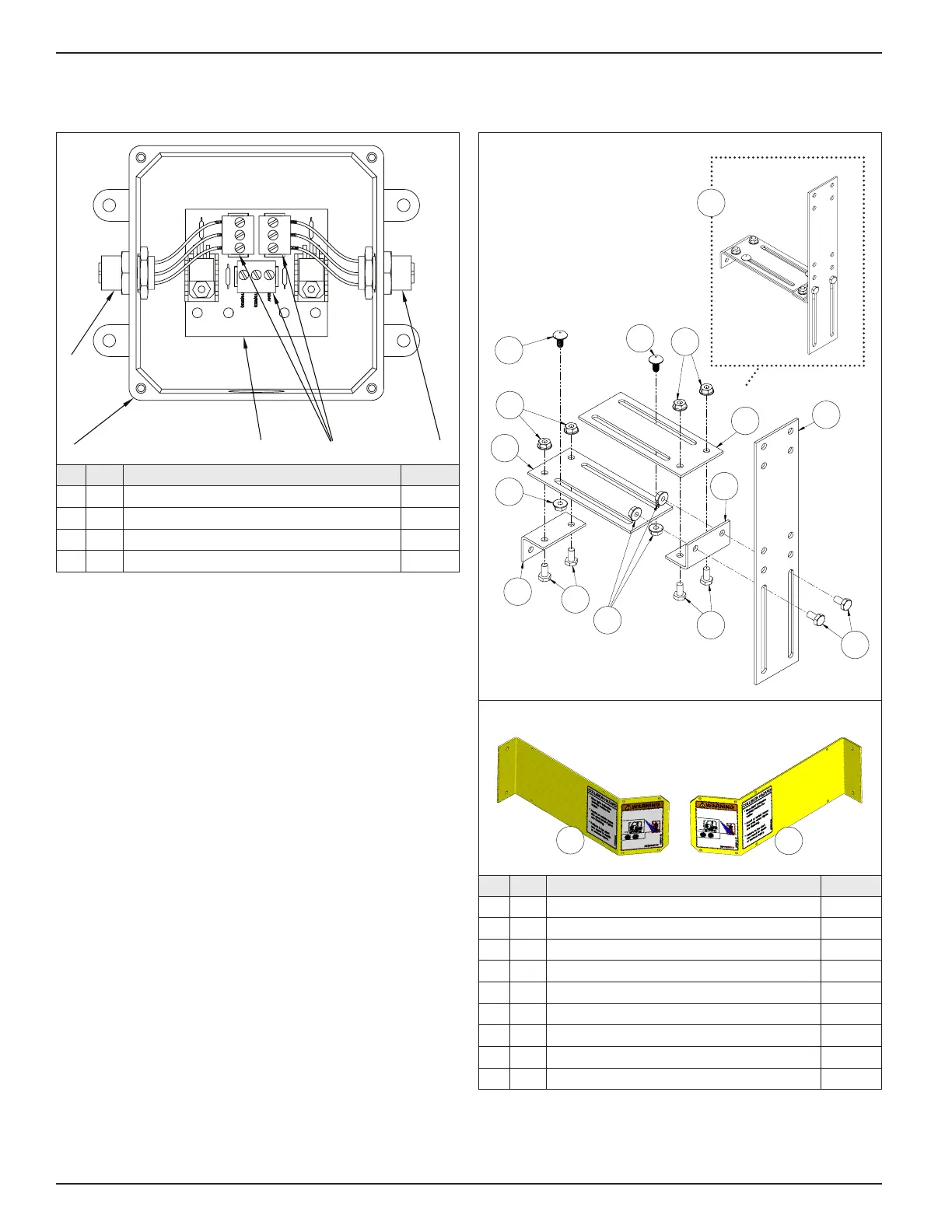

PARTS
Junction Box Assembly
1
2
3 2
4
# QTY DESCRIPTION PART #
1 1 JB 4X4X2 N4 2HOLE(.625DIA) HOLE(.875DIA) 144705
2 2 RCPT FEM 22/3 6L 144702
3 1 CKTBD 3CONN LVLR-Vu 144700
4 3 CONN CKTBD 3COND LVLR-Vu 144701
Mounting Brackets
Corner-Vu
2
15
1
1
2
5
4 5
5
3
3
3
4
5
4
2
3
5
6
9
2
4
4
6
3
6
5
6
2
15
1
1
2
5
4 5
5
3
3
3
4
5
1
Pedestrian-Vu
2
15
1
1
2
5
4 5
5
3
3
3
4
5
7
8
2
15
1
1
2
5
4 5
5
3
3
3
4
5
7
8
8
7
# QTY DESCRIPTION PART #
1 2 Mounting Bracket Assembly 146631
2 4 Formed Angle 1.25 x 1.25 x .105 x 2.38L 130969
3 4 Bar 2.375 x 5.75L 2 Hole 2 Slot 130970
4 12 Bolt .25-20UNC .5L HHCS ZP 122281
5 8 Bolt .25-20UNC .5L SQ NK TR GR2 130975
6 28 Nut .25-20 HEX SERR FLG ZP 51552
7 1 Bracket, Sensor Mount, Left 150902
8 1 Bracket, Sensor Mount, Right 150903
9 2 Bar 2.375 X 11.75L 8 Hole 2 Slot 145777
