Rite‑Hite
®
Installation/Service/Owner's Manual Dok‑Commander
®
Publication: AMEN00070 2020-01-30 35

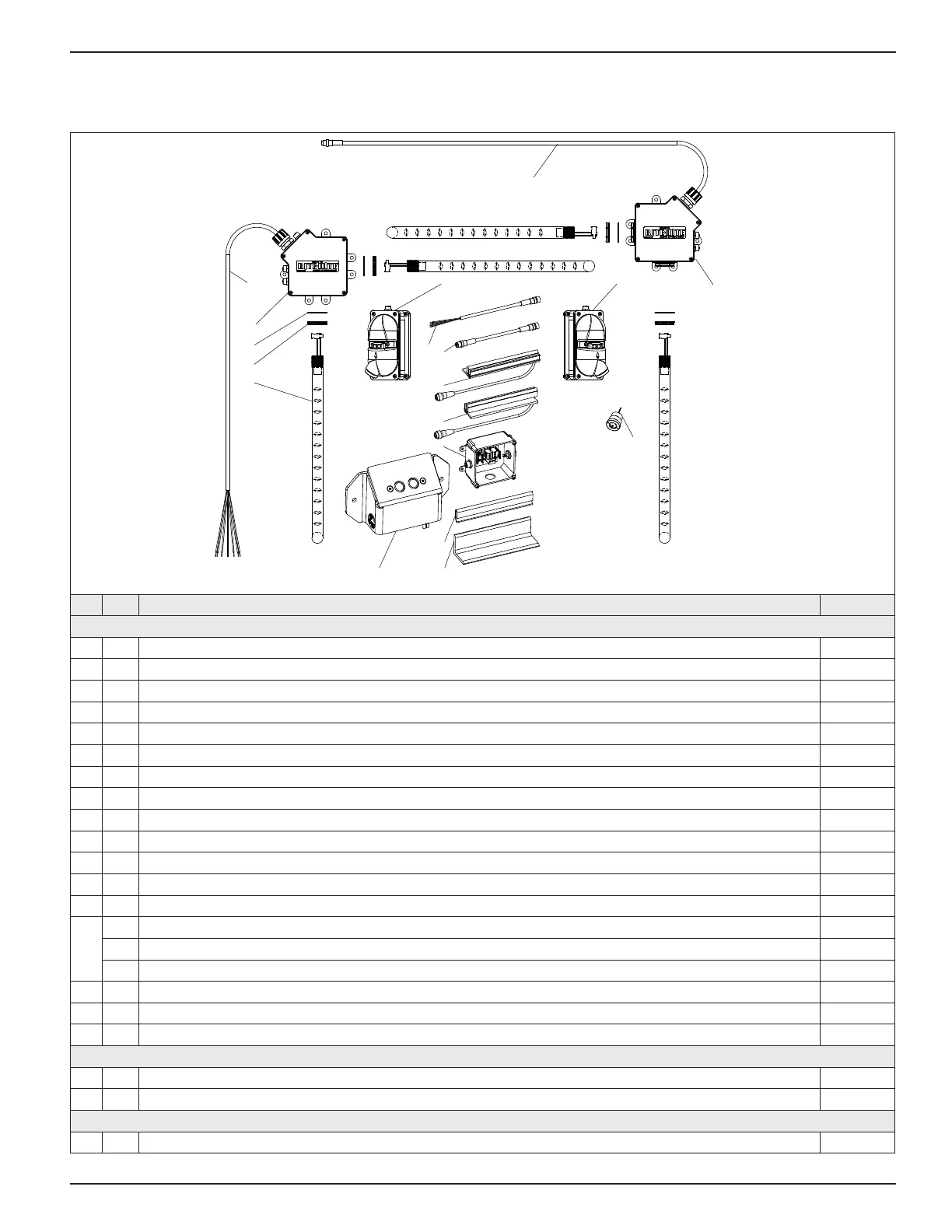

PARTS
Rite-Vu
3
19
10
9,128,11
7
6
2
14
15
16
17
18
5
1
13
4
13
<RITE-VU_REPLACEPARTS_180712.PDF>
# QTY DESCRIPTION PART #
Pit Leveler and Vertical Leveler
1 1 Corner-VU Box Assem N4 Left (Includes Cord) 145778
2 1 Corner-VU Primary Cord 144" Long (Cord Only) 145794
3 1 Corner-VU Box Assem N4 Right (Includes Cord) 145780
4 1 Corner-VU Cross Cord (Plug-In) 197" Long (Cord Only) 145795
* opt Optional 10' Corner-VU Cross Cord (Plug-In) Extension 147016
5 4 Corner-VU Light Assembly Embed Red/Green 12-24VDC 145773
6 4 Gasket 1.75OD 1.00ID .062THK Rubber 145920
7 4 Nut 1-14UNS Plastic 145776
8 1 Ped-VU Enclosure Sensor/Light (BLUE) Left 150027
9 1 Ped-VU Enclosure Sensor/Light (BLUE) Right 150028
10 2 Ped-VU LED Light Assembly 150026
11 1 Ped-VU Bracket, Sensor Mount, Left (Not Shown) 150902
12 1 Ped-VU Bracket, Sensor Mount, Right (Not Shown) 150903
13 2 Ped-Vu Cord 60L 150043
1 Ped‑Vu Cord 72L, w/ying leads (Ped‑Vu Standalone) 151261
1 Ped‑Vu Cord 300L, w/ying leads (Ped‑Vu Standalone) 151262
14 1 Leveler-VU Light Assem Embedded RD/GN 12VDC(SINK) Left 144707
15 1 Leveler-VU Light Assem Embedded RD/GN 12VDC(SINK) Right 144708
16 1 Leveler-VU Junction Box Assem N4 144704
Vertical Leveler Only
17 1 Angle 2 X 2 X .25 X 7.5L 144711
18 1 Chan Form WSL/LT 12 GA 7.5L 133274
Approach View Stand-Alone Only
19 1 APR-Vu Assembly Standalone Light/Horn 151901
*Not Shown
