RITE-HITE Dok-Commander User Manual

Rite‑Hite
®
Installation/Service/Owner's Manual Dok‑Commander
®
Publication: AMEN00070 2020-01-30 37
PARTS
Approach-Vu
14
810 9 12
7
13
18
61 4
3
2
5 17
1517
16
11

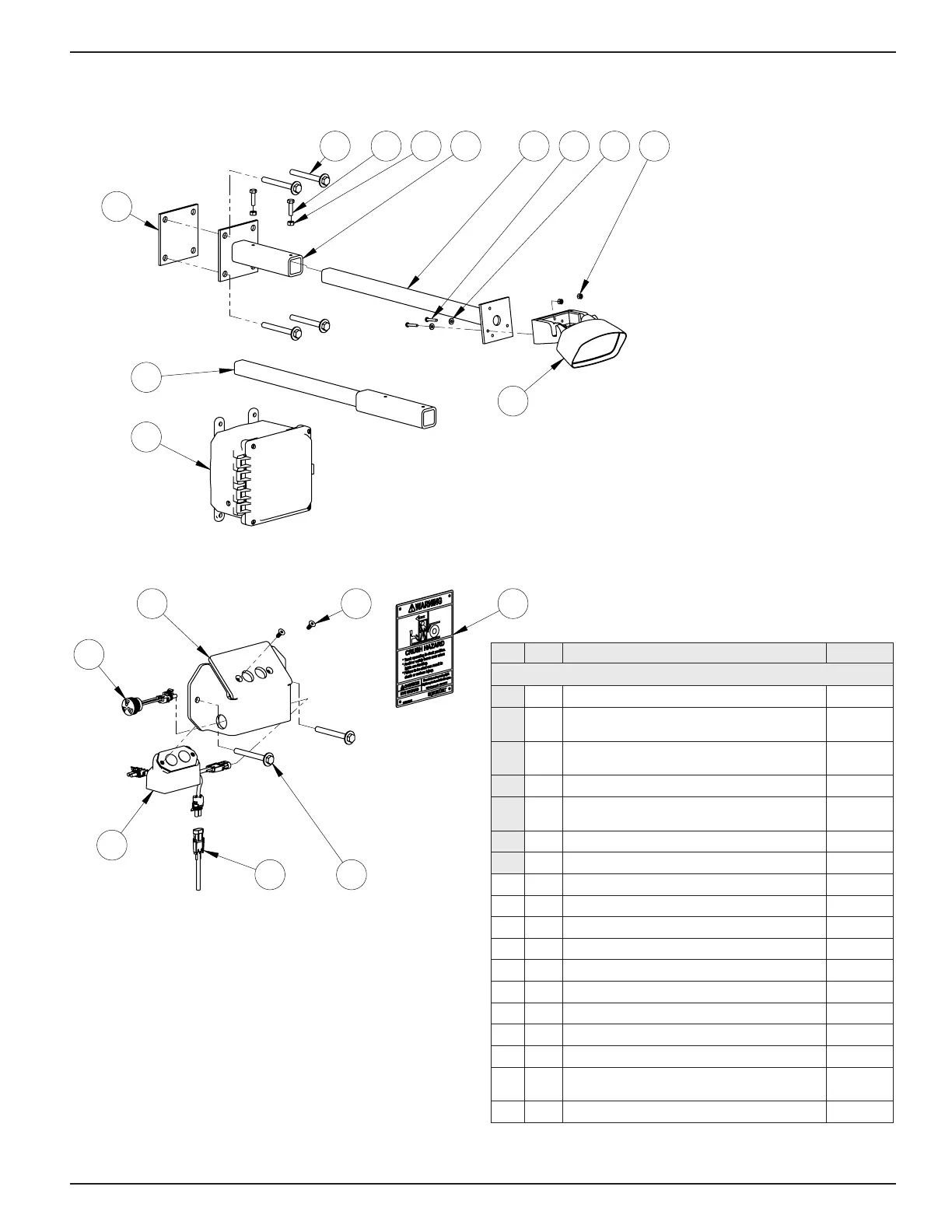

<APR-VU_PARTS_180427.PDF>
# QTY DESCRIPTION PART #
APPROACH-VU LIGHT/HORN MODULE
1 1 APPROACH-VU STANDALONE MOUNT 151902
2 1 APPROACH-VU LIGHT ASSY 2LED
FLASHER
150665
3 1 APPROACH-VU HORN ASSY 12V BEEP
PLUG 7L
150687
4 2 SCR .250-20X.625 CAP FLAT SST 150717
5 1 APPROACH-VU CABLE ASSY 18/2 PVC
RCPT 92L
150795
6 1 APPROACH-VU WARNING SIGN 150669
7 1 TRUCK SENSOR RAVE CBL(26FT) 150688
8 1 TRUCK SENSOR BRACKET 6.188L 150695
9 1 TRUCK SENSOR BRACKET 30L 150691
10 2 BOLT .250-20X1.000L HEX ZP 136880
11 2 NUT .25-20 UNC HEX 51524
12 2 SCR #8-32X1.00 MACH RND PHLP ZP 51689
13 2 NUT #8-32 NYLK ZP 141611
14 1 BAR .18 X 4 X 4 4HOLE PNT 150905
15 2 WASHER FLAT #8 ZP 51736
16 1 BRKT WLDMT EXT(TUBE 1SQ) 23.5L 151306
17 6 ANCHOR CONCRETE .375DIA X 3.50L HEX
ZP
105046
18 1 APPROACH-VU POWER/CONTROL BOX 155585
