RITE-HITE Dok-Commander User Manual

Dok‑Commander
®
Installation/Service/Owner's Manual Rite‑Hite
®
38 Publication: AMEN00070 2020-01-30

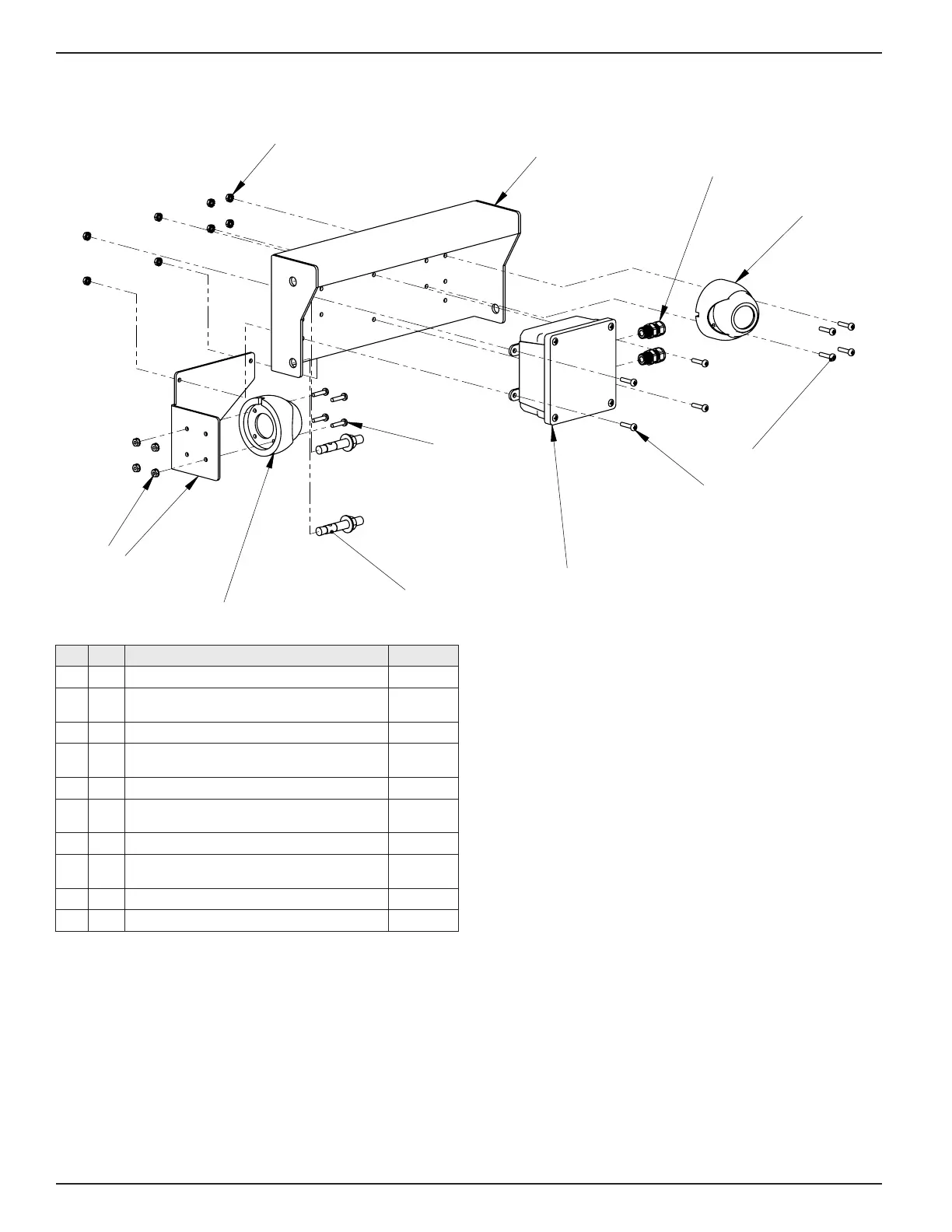

PARTS
Lok-Vu
5
7
8
2
6
6
6
2
4
7
1
3
<LOK-VU_PARTSLIST 181115.PDF>
# QTY DESCRIPTION PART #
1 1 WALL BRACKET Lok-Vu 149623
2 2
CAMERA WEATHERPROOF INP(12VDC)
LENS(120DEG) WH IP68
149622
3 1 JUNCTION BOX 4X4X2 N4 2HOLE(.540DIA) 156252
4 2
CORD GRIP .11-.25 CORD DOME BK
.25NPT
156649
5 1 BRACKET EXTENDED Lok-Vu 156240
6 12
SCREW #8-32X.750 MACH PAN PHLP SST
BK OXD
148497
7 12 NUT #8-32 KEPS ZP 118327
8 2
ANCHOR CONCRETE .375DIA X 2.75L
STUD ZP
152098
9* 6 WIRE NUT GREY 22-16GA 151565
11* 1 TAPE REFLECTIVE YELLOW 9 X 9 151721
*Not Shown
