Transportation and Handling Procedures Chapter 2
2. Carefully balance the drive on the forks (drives are usually heavier on one
side).
3. Use safety straps to steady the drive while moving.
Removing Wooden Skids
Remove the wooden shipping skids only when the drive is in its final installation
location. At the back of the drive there are steel angle brackets holding the
equipment to the wooden shipping skid. Open the front doors of the equipment
to reach and remove the lag screws that attach the angles to the equipment.
Lift the drive using overhead lifting angles and slide the wooden shipping skid
out from under the equipment.
If an overhead lifting with a crane is not available, use two lift trucks with a
combined capacity equal to the entire drive. Lift the drive using the overhead
lifting angles and suitable spreader bars attached to the forklift trucks.
Removing Lifting Angles
Remove lifting angles only when the drive is in its final position. The lifting
angles attach to the drive using 5/8 in.-11 hardware. Reinstall the 5/8 in. bolts in
their holes in the top of the drive to seal the bolt-holes (Figure 17
).

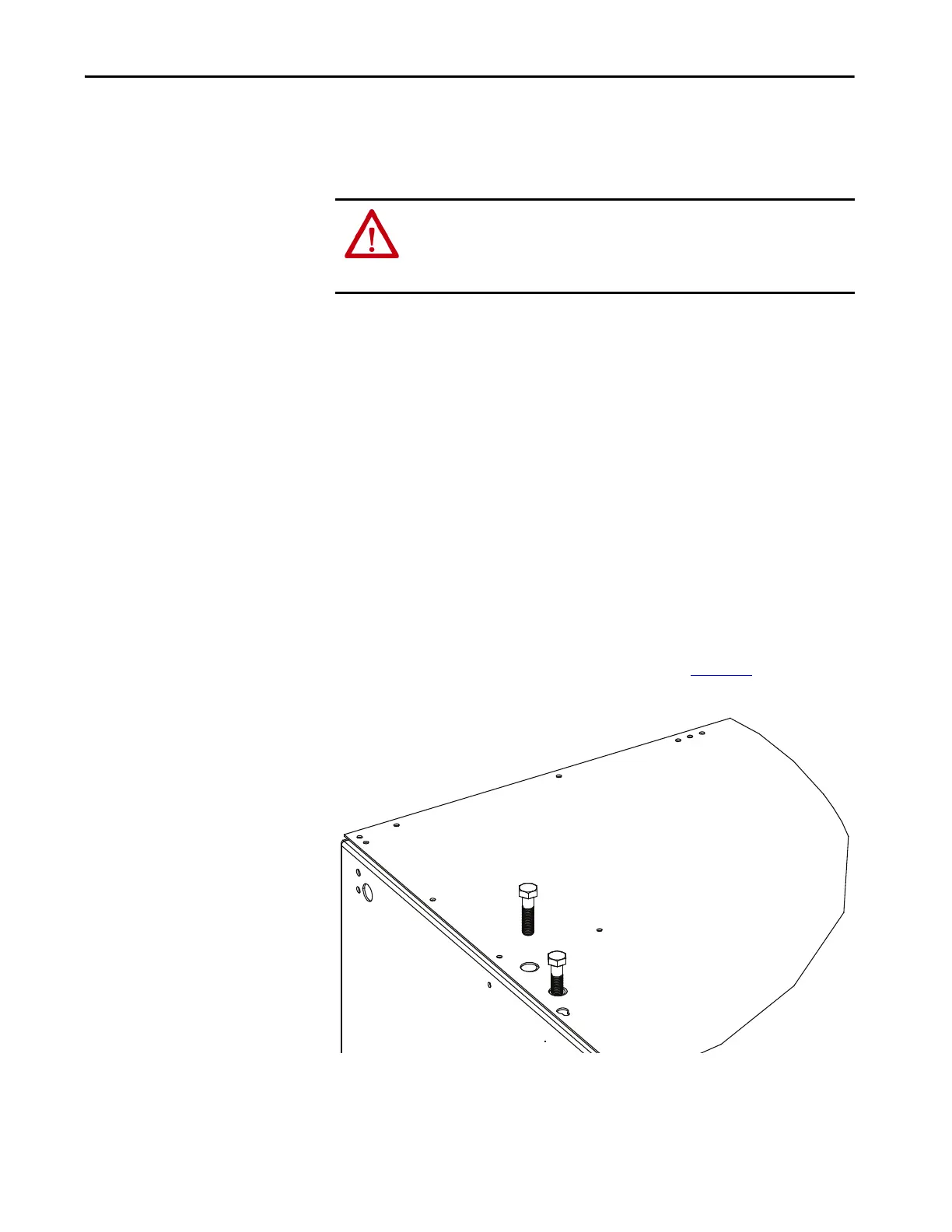

Figure 17 - Insert Bolts
WARNING: Take care when using either a forklift or the pipe rolling technique
for positioning purposes, to prevent the drive from being scratched, dented, or
damaged. Stabilize the drive during handling to guard against tipping and
injury to personnel.
