Rockwell Automation STRATIX 8000 1783-MS06T User Manual

Publication 1783-UM002C-EN-P - April 2009 61
Chapter 2
Connect to 100BaseFX Ports

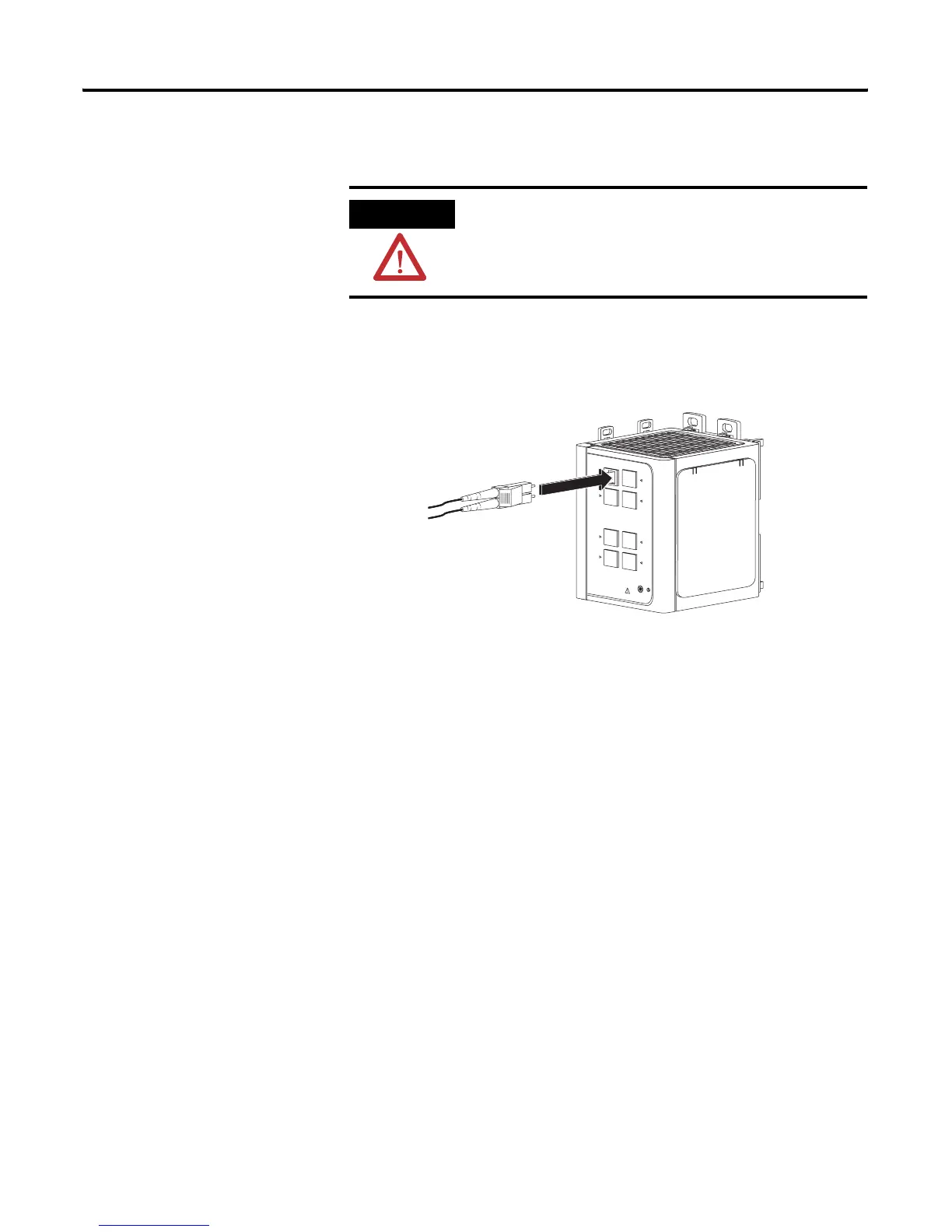

1. Insert a fiber optic cable with an LC connector into the 100BASE-FX
port of the 1783-MX08F expansion module.
2. Insert the other cable end into the other device.
Verify Port Connectivity
After you connect to the switch port and another device, the port status
indicator turns amber while the switch establishes a link. This process takes
about 30 seconds, and then the status indicator turns green when the switch
and the target device have an established link.
If the status indicator is off, the target device might not be turned on, there
might be a cable problem, or there might be a problem with the adapter
installed in the target device.
ATTENTION
Class 1 laser product. Laser radiation is present when the
system is open and interlocks bypassed. Only trained and
qualified personnel should be allowed to install, replace, or
service this equipment.
31797-M
