Publication 1783-UM002C-EN-P - April 2009 79
Chapter 4
Dual-purpose Ports
The Ethernet port on a dual-purpose port uses standard RJ45 connectors. The
following figure shows the pinouts.

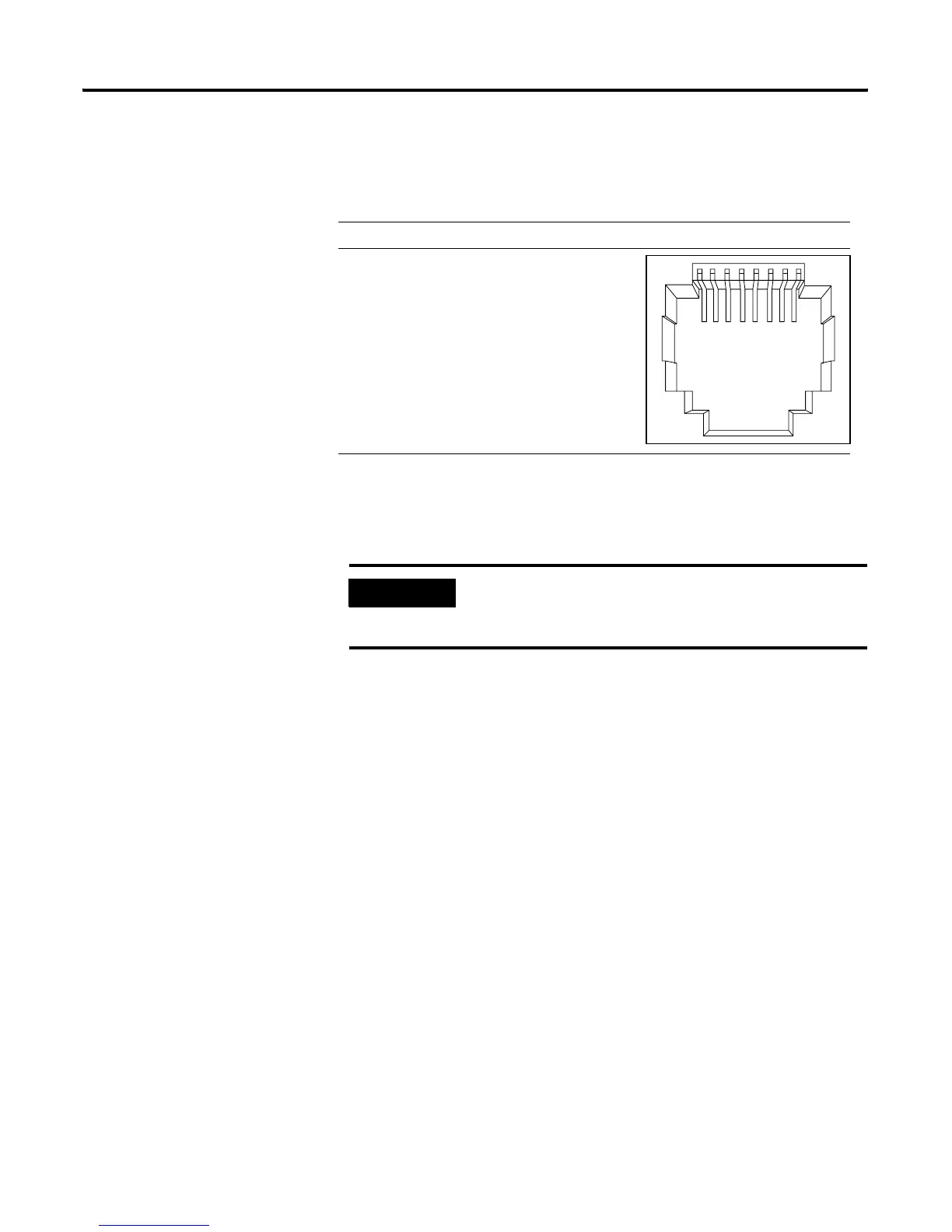

Ethernet Port RJ45 Connector
The SFP module slot on a dual-purpose port uses SFP modules for fiber-optic
ports.
Console Port
The console port uses an 8-pin RJ45 connector. The supplied RJ45-to-DB-9
adapter cable is used to connect the console port of the switch to a console
personal computer. You need to provide an RJ45-to-DB-25 female DTE
adapter if you want to connect the switch console port to a terminal.
0915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
IMPORTANT
The auto-MDIX feature is enabled by default. For configuration
information for this feature, see the switch software
configuration guide or the switch command reference.
