Rockwell Automation STRATIX 8000 1783-MS06T User Manual

75Publication 1783-UM002C-EN-P - April 2009 75
Chapter 4
Cable and Connectors
This appendix describes the switch ports and the cables and adapters that you
use to connect the switch to other devices.
10/100 and 10/100/1000
Ports
The 10/100 and 10/100/1000 Ethernet ports on switches use standard RJ45
connectors and Ethernet pinouts with internal crossovers.

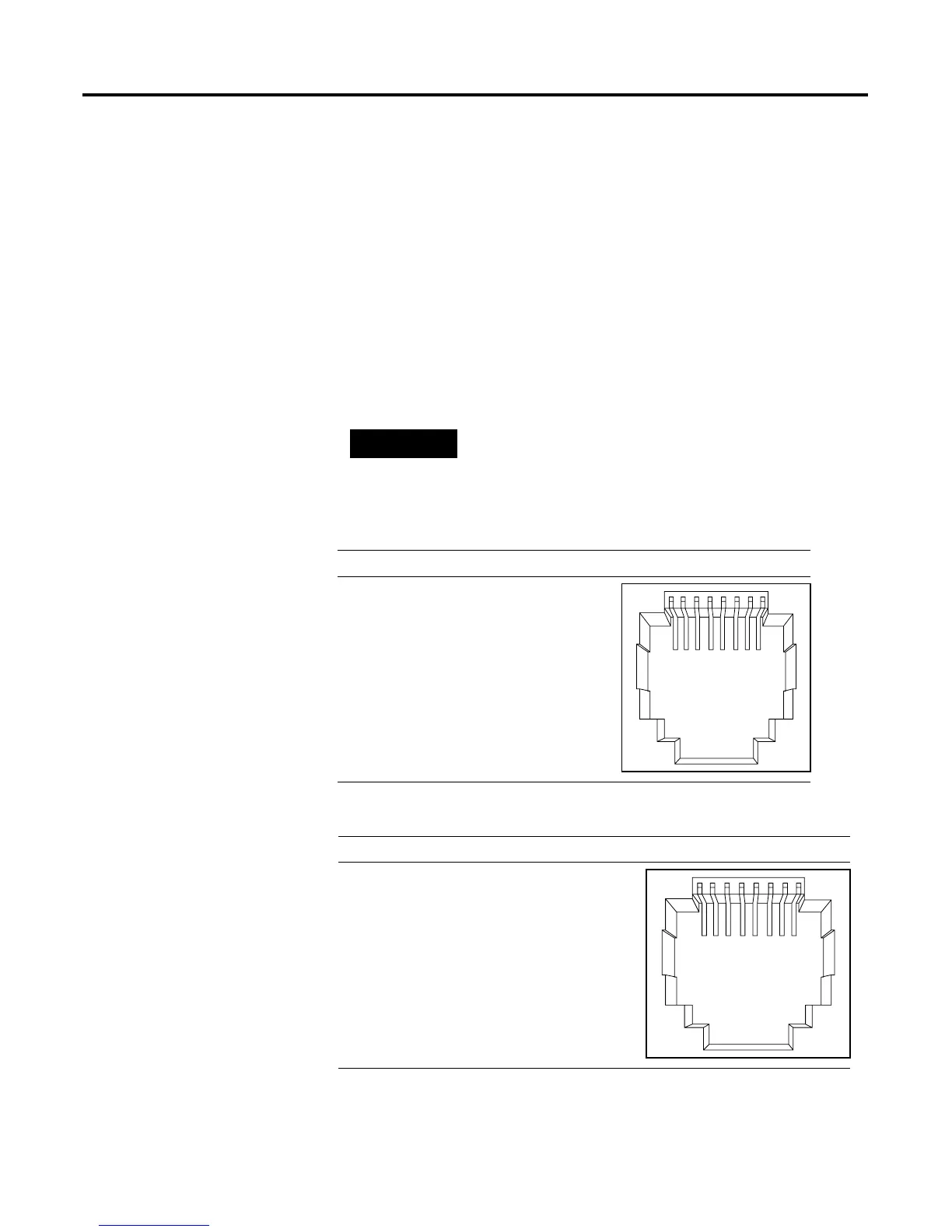

The following figure shows the connector pinouts.
10/100 Connector Pinouts
10/100/1000 Connector Pinouts
TIP
The auto-MDIX feature is enabled by default.
H5318
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
6
0915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
