AT-80SL
KEYBOARD PARTSLIST
Lower Keyboard(70899834 SK-976-A KBD ASSY)
[Parts]
[Screws]

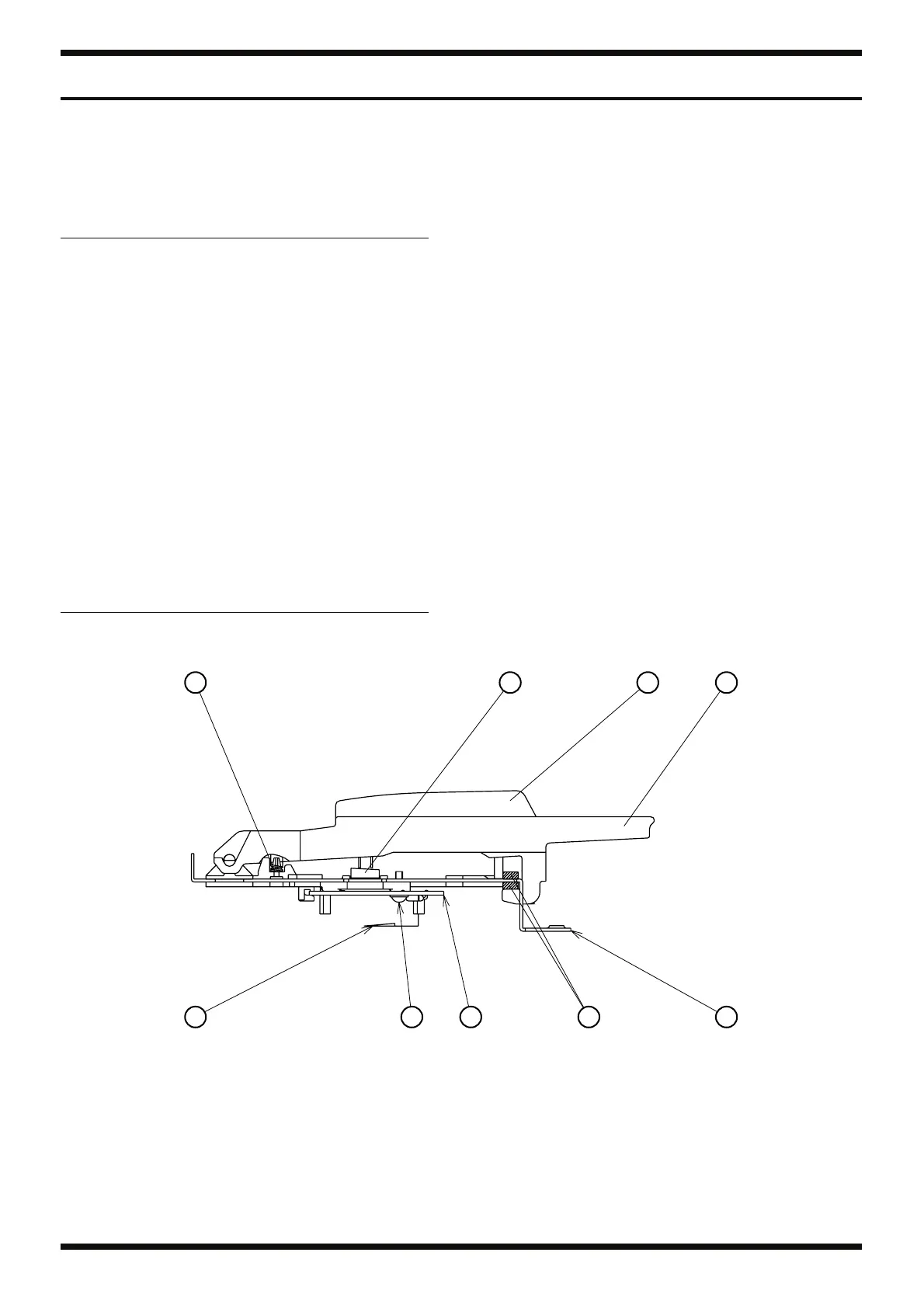

fig.keyboard-
2
No. PART CODE PART NAME Q’TY
1 00893723W0 SK-9 Natural Key CF (Weight) 13
00893734W0 SK-9 Natural Key EB (Weight) 12
00893756W0 SK-9 Natural Key D (Weight) 6
00893767W0 SK-9 Natural Key G (Weight) 6
00893745W0 SK-9 Natural Key A (Weight) 6
00895156W0 SK-9 Natural Key E’ B’ (Weight) 1
00895167W0 SK-9 Natural Key G’ (Weight) 1
2 00893790W0 SK-9 Sharp Key (Weight) 31
70672890 SK-9 Chassis 76P-A Assy 1
3 00895201 SK-9 Chassis 76P Short 1
4 00895212 SK-9 Cushion 76P 2
5 01231534 SK-9 Spring-WT2 76
6 00893823 SK-9 Rubber Switch 12P 4
00893834 SK-9 Rubber Switch 13P 1
00895178 SK-9 Rubber Switch 8PL 1
00895189 SK-9 Rubber Switch 7PH 1
7 70672901 SK-976 PWB LOW Assy 1
70672912 SK-976 PWB MID Assy 1
70672923 SK-976 PWB HI Assy 1
8 23475370 Fuji Card 12x70-A6.0BB-P1.25-HBL10 1
17049543 Grease for KEY FLOIL G-336A PINK
17049545 Grease for KEY FLOIL G-424F WHITE
No. PART CODE PART NAME Q’TY
a 40233545 SCREW M3x10 VWH TAPTITE B ZC 19
12
34
5 6
7
a
8
