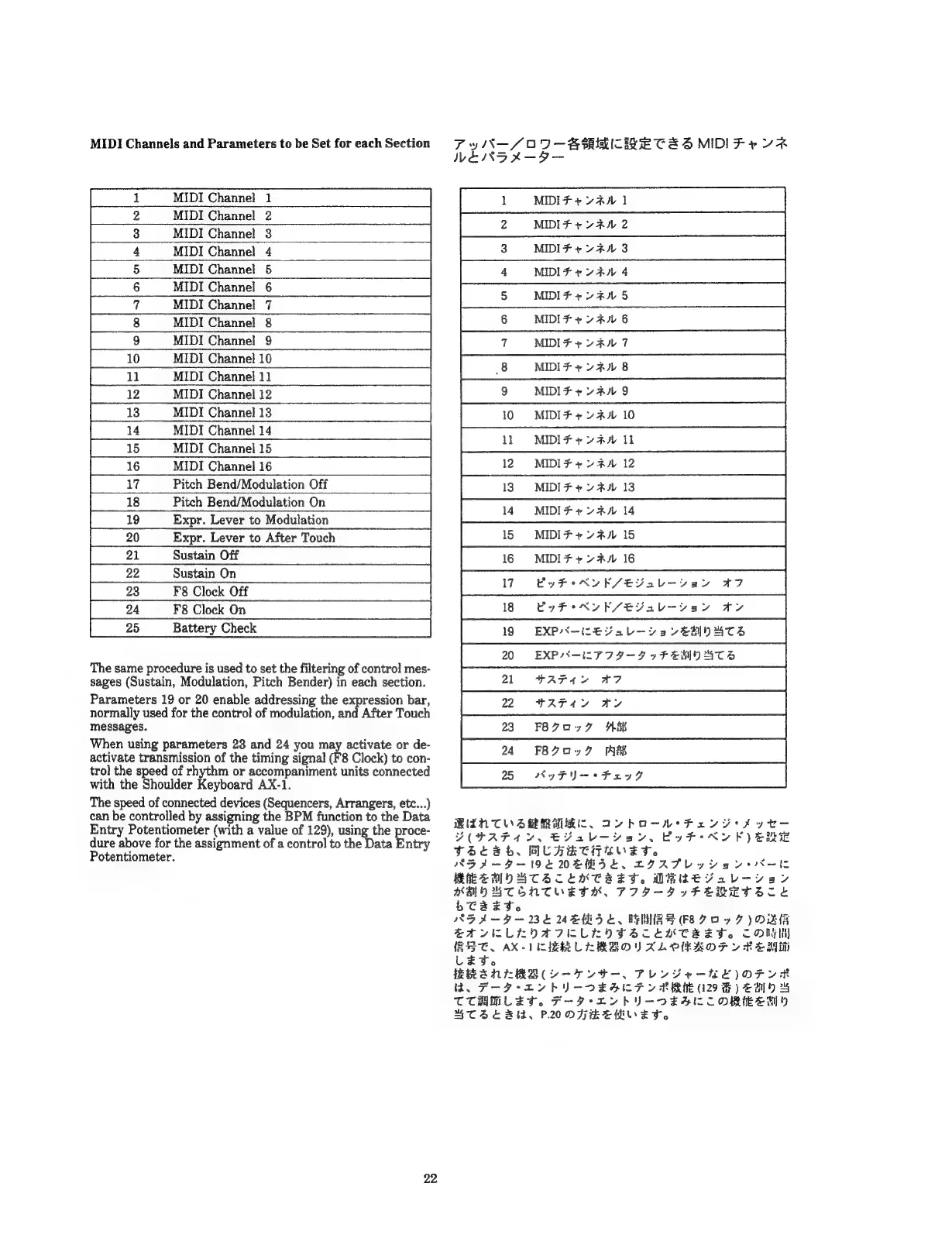

Roland AX-1 User Manual

MIDI Channels and Parameters to be Set for each Section
1 MIDI Channel
2 MIDI Channel
3 MIDI Channel
4 MIDI Channel
5
6
MIDI Channel
MIDI Channel 6
7 MIDI Channel 7
8 MIDI Channel 8
9 MIDI Channel 9
1
2
10 MIDI Channel 10
1 MIDI Channel 11
1 MIDI Channel 12
13 MIDI Channel 13
14 MIDI Channel 14
15 MIDI Channel 15
16 MIDI Channel 16
17 Pitch Bend/Modulation Off
8 Pitch Bend/Modulation On
1
23
4
F8 Clock Off
2 F8 Clock On
25 Battery Check
The same procedure is used to set the filtering of control mes-
sages (Sustain, Modulation, Pitch Bender) in each section.
Parameters 19 or 20 enable addressing the expression bar,
normally used for the control of modulation, and After Touch
messages.
When using parameters 28 and 24 you may activate or de-
activate transmission of the timing signal (F8 Clock) to con-
trol the speed of rhythm or accompaniment units connected
with the Shoulder Keyboard AX-1.
The speed of connected devices (Sequencers, Arrangers, etc...)
can be controlled by assigning the BPM function to the Data
Entry Potentiometer (with a value of 129), using the proce-
dure above for the assignment of a control to the Data Entry
Potentiometer.
