Mar. 2010 SPD-30
Disassembly/Assembly Procedure and Important Notes

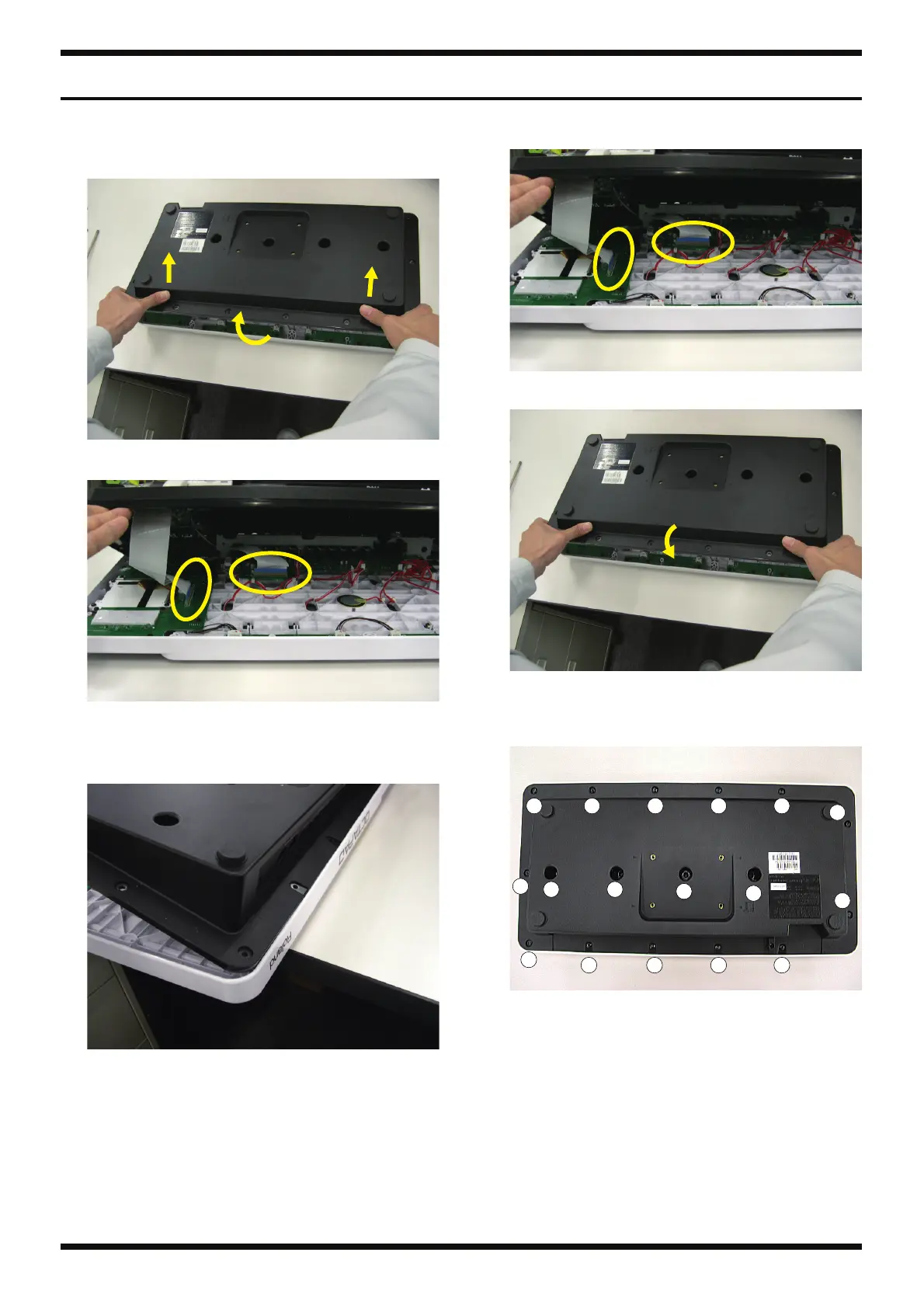

Detaching the Bottom Case
1. While applying pressure in the A direction, lift in the B direction.
fig.bunaki-1.eps
2. Detach the flat cables (2 locations).
fig.bunaki-2.eps
Attaching the Bottom Case
1. Fit the Bottom Case and Top Case together.
fig.bunaki-3.eps
2. Insert the flat cables (2 locations) into the connectors.
fig.bunaki-2.eps
3. Lower the Bottom Case in the direction of the arrow.
fig.bunaki-4.eps
4. Tighten the screws on the underside of the Bottom Case.
* To minimize deformation of the case, tighten in the sequence of the numbers
shown in the figure (from 1 to 17).
fig.bunaki-5.eps
1, 2, and 8 through 12:
SCREW 4X12 TRUSS TAPTITE P BZC (#5100013786)
3 through 7 and 13 through 17:
SCREW 4X16 TRUSS TAPTITE P BZC (#5100013787)
A
A
B
1
2
3
8
9
1011
12
4567
13141516
17

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
