Roland OCTAPAD SPD-30 User Manual

24
Mar. 2010 SPD-30
Test Mode
At the end of the Test Mode, be sure to execute a factory reset. Executing a
factory reset causes kit and phrase data in the unit to be lost. Back up user data
in advance.
Items Required
• Pad (CY-8, CY-5, PD-8, or PD-7) x 1
• Foot pedal (FD-8 or FD-7) x 1
• Foot switches (FS-5U) x 2
• Headphones x 1 set
• Monitor speakers x 2
• Signal generator or audio device (CD player, etc.) x 1
• Computer (running Windows XP)
• Stereo cables (used for connecting the pad and audio device) x 2
• Monaural cables (for connecting the monitor speakers) x 2
• Y-cable (PCS-31L; for connecting the FS-5U) x 1
• MIDI cable x 1
• USB cable x 1
• USB memory device x 1
• AC adaptor (PSB-1U) x 1
• Drum stick x 1

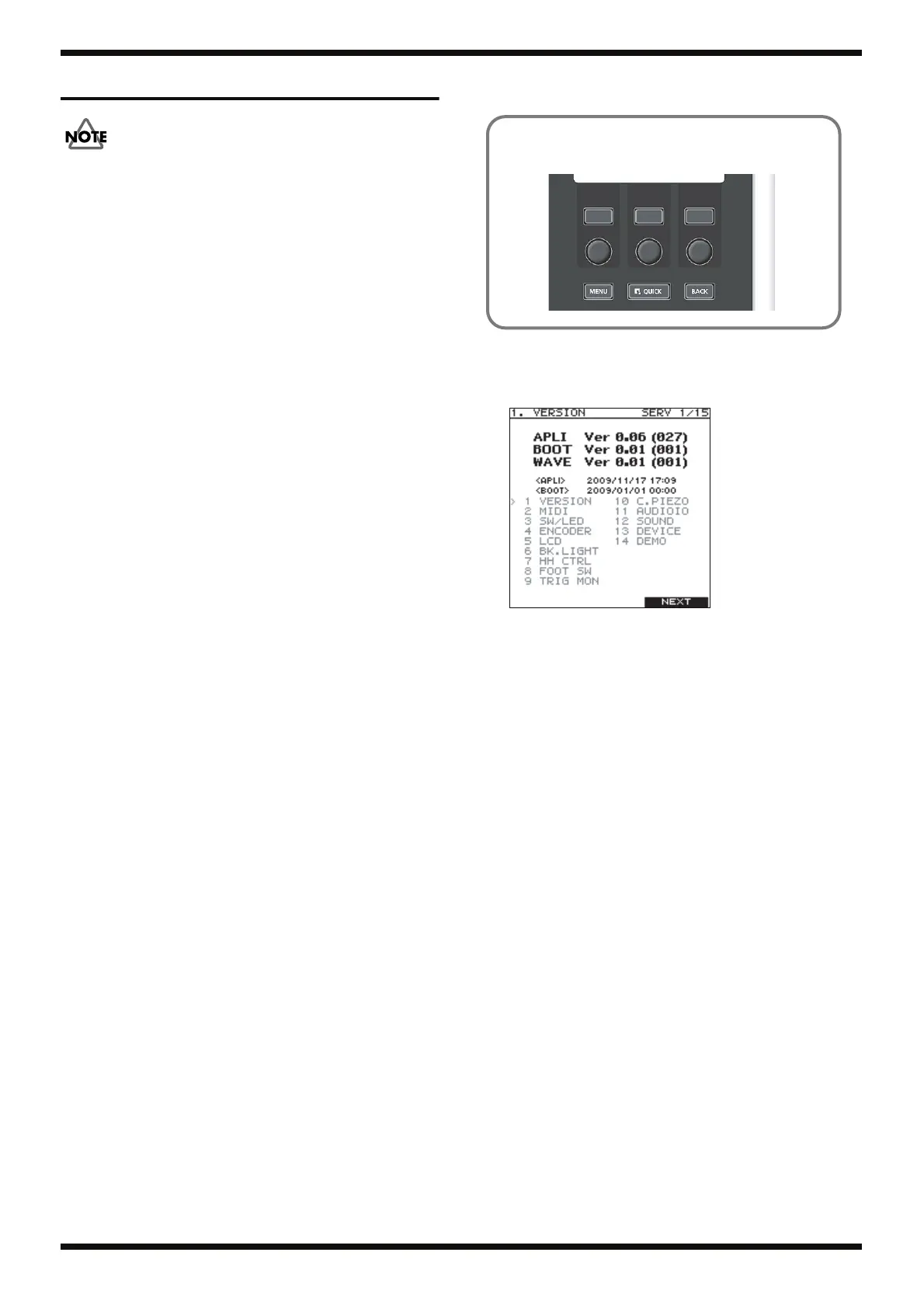

Entering the Test Mode
1. Hold down [QUICK] + [Button 3] + [STANDBY] and switch on the
power.
The Test Mode for service starts up.
fig.test1.eps_80
* Verify that SERV is displayed at the top right of the screen. If SERV is not
displayed, the unit is not in the Test Mode for service. Start again.
Quitting the Test Mode
Press and hold down [POWER].
Skipping or Retrying Test Items
Jump to the next item: Hold down [QUICK] and press [SET LOOP/NEXT].
Jump to the previous item: Hold down [QUICK] and press [ERASE].
Retry the current item: Hold down [QUICK] and press [REC].
Test Items
1. Version Display [1/15 VERSION] (p. 25)
2. MIDI Test [2/15 MIDI] (p. 25)
3. SW (Switch) and LED Test [3/15 SW/LED] (p. 25)
4. Encoder Test [4/15 ENCODER] (p. 25)
5. LCD Test [5/15 LCD] (p. 26)
6. LCD Backlight Test [6/15 BACKLIGHT] (p. 26)
7. HH CTRL (Hi-Hat Control) Test [7/15 HH CTRL] (p. 26)
8. Foot SW (Switch) Test [8/15 FOOT SW] (p. 26)
9. Trigger Test [9/15 TRIG MONITOR] (p. 27)
10. Cancel Sensor Test [10/15 CANCEL PIEZO] (p. 27)
11. Audio In/Out Test [11/15 AUDIO IN/OUT] (p. 28)
12. Sound Test [12/15 SOUND] (p. 28)
13. Device Test [13/15 DEVICE] (p. 28)
14. Demo Song Test [14/15 DEMO] (p. 29)
15. Factory Reset (p. 29)
For [Knob 1] through [Knob 3] and [Button 1] through [Button 3]
used in the various operations, refer to the figure below.
fig.buttons-e.eps
Knob 1 Knob 2 Knob 3
Knob 1 Knob 2 Knob 3
Button 1 Button 2 Button 3

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
