Roland OCTAPAD SPD-30 User Manual

18
Mar. 2010 SPD-30

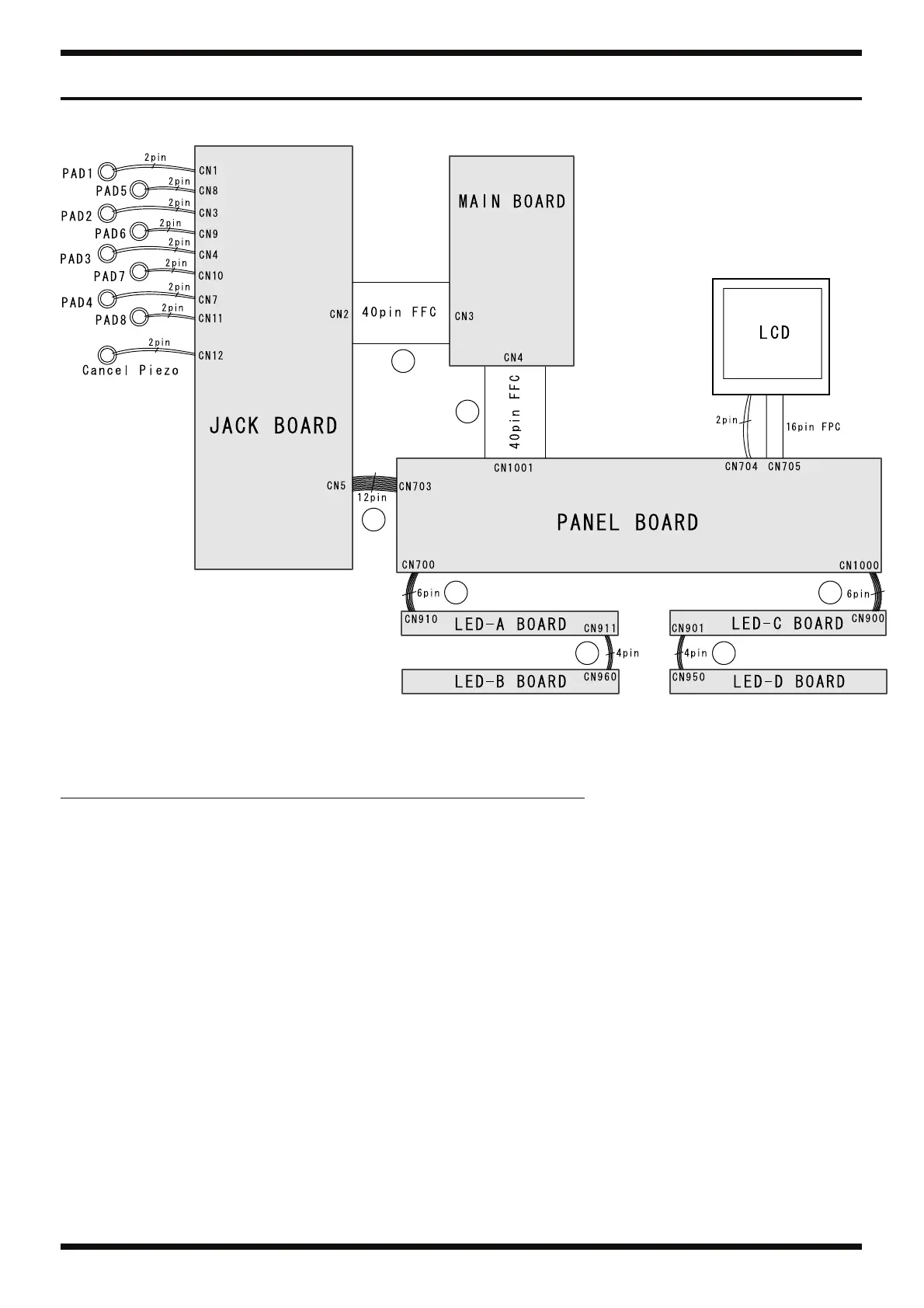

Wiring Diagram
fig.wiring.eps
* The 16-pin FPC and 2-pin wiring are surface-mounted on the LCD screen.
* 2-pin wiring is surface-mounted on PAD1 through 8 and the Cancel Piezo element.
D D
C
B
A
A
C
No. Part Code Part Name Description Q’ty
A 5100009519 WIRING A-1.0-40X170-4(8)X4(8)-.7X.05 2
B 5100009524 WIRING W1 1
C 5100009526 WIRING W4 2
D 5100009525 WIRING W3 2

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
