Roland OCTAPAD SPD-30 User Manual

4
Mar. 2010 SPD-30

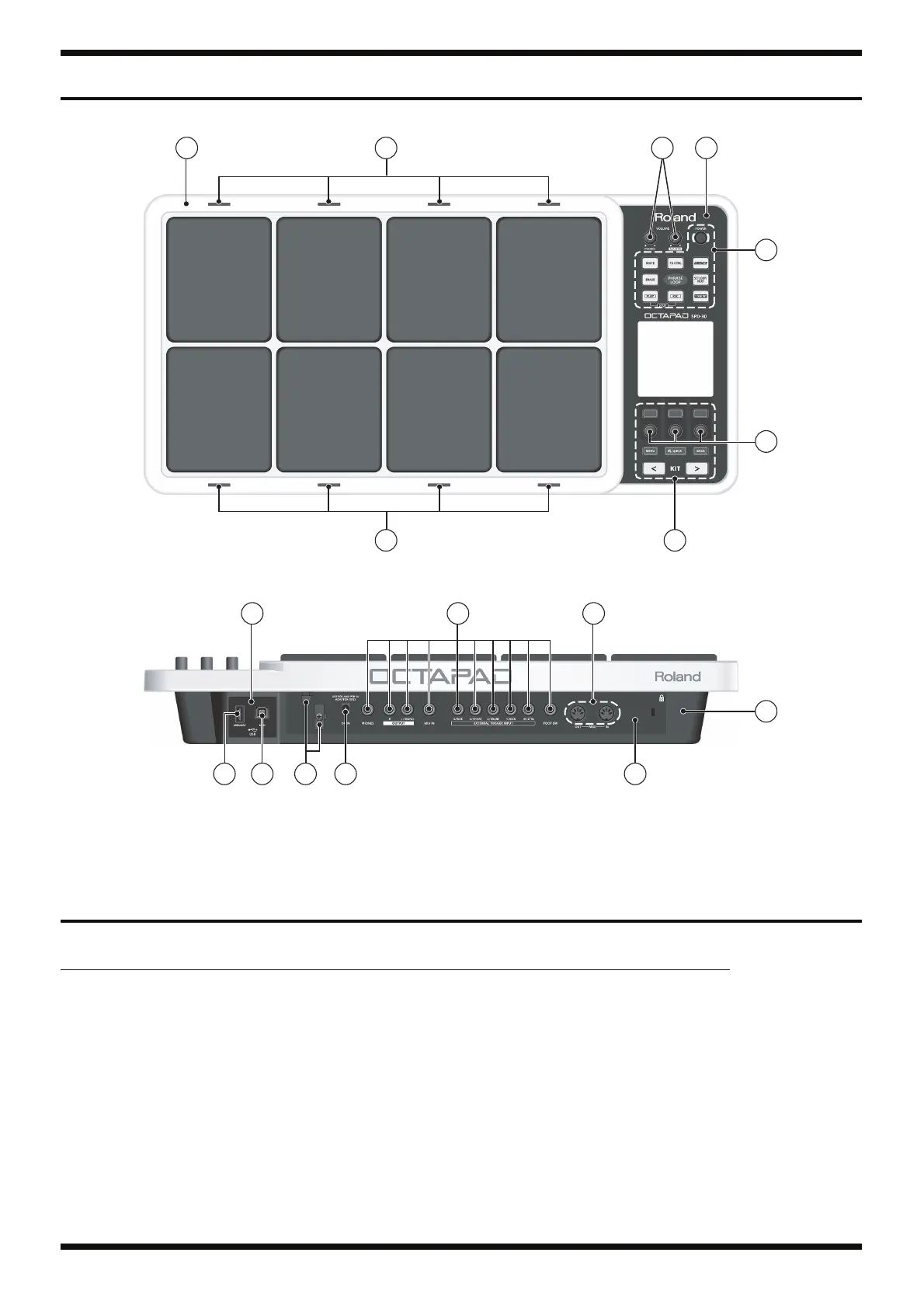

Location of Controls
fig.panel.eps
Location of Controls Parts List
1 4 3
7
5
8
9
13 141012
2
2
15
6
16
11
No. Part Code Part Name Description Q’ty
1 5100010681 TOP CASE ASSY 1
2 5100009444 LED LENS 8
3 5100009458 PANEL SHEET 1
4 5100009446 ZN R-KNOB MF-ELA BLK 2
5 5100009449 RUBBER SW A 1
6 5100009451 RUBBER SW B 1
7 5100009445 ZN R-KNOB MF-ELA ENC BLK 3
8 5100009443 BOTTOM CASE 1
9 5100009459 REAR PANEL SHEET A 1
10 5100000903 CORD HOOK 2
11 5100009460 REAR PANEL SHEET B 1
12 04907401 USB CONNECTOR A TYPE FEMALE UAR80-4K5J00 1
13 5100009531 USB CONNECTOR B TYPE FEMALE YKF45-0044N 1
14 13449711 AC ADAPTOR JACK HEC0470-01-630 1
15 00569278 6.5MM JACK LGR4609-7100F 10
16 13429676 MIDI CONNECTOR YKF51-5048V (TWIN) 1

Roland OCTAPAD SPD-30 Specifications

General

Product color	Black, Grey
Sound effects	Yes
Number of pads	8
Drum kits quantity	50
Instrument sounds quantity	670
Display type	LCD
Display resolution	160 x 160 pixels
USB connector type	USB Type-A, USB Type-B
Headphone connectivity	6.3 mm
6.35 mm (1⁄4-inch) input	5
6.35 mm (1⁄4-inch) output	2
Power source type	AC

Weight and Dimensions

Depth	272 mm
Width	541 mm
Height	88 mm
Weight	3800 g
