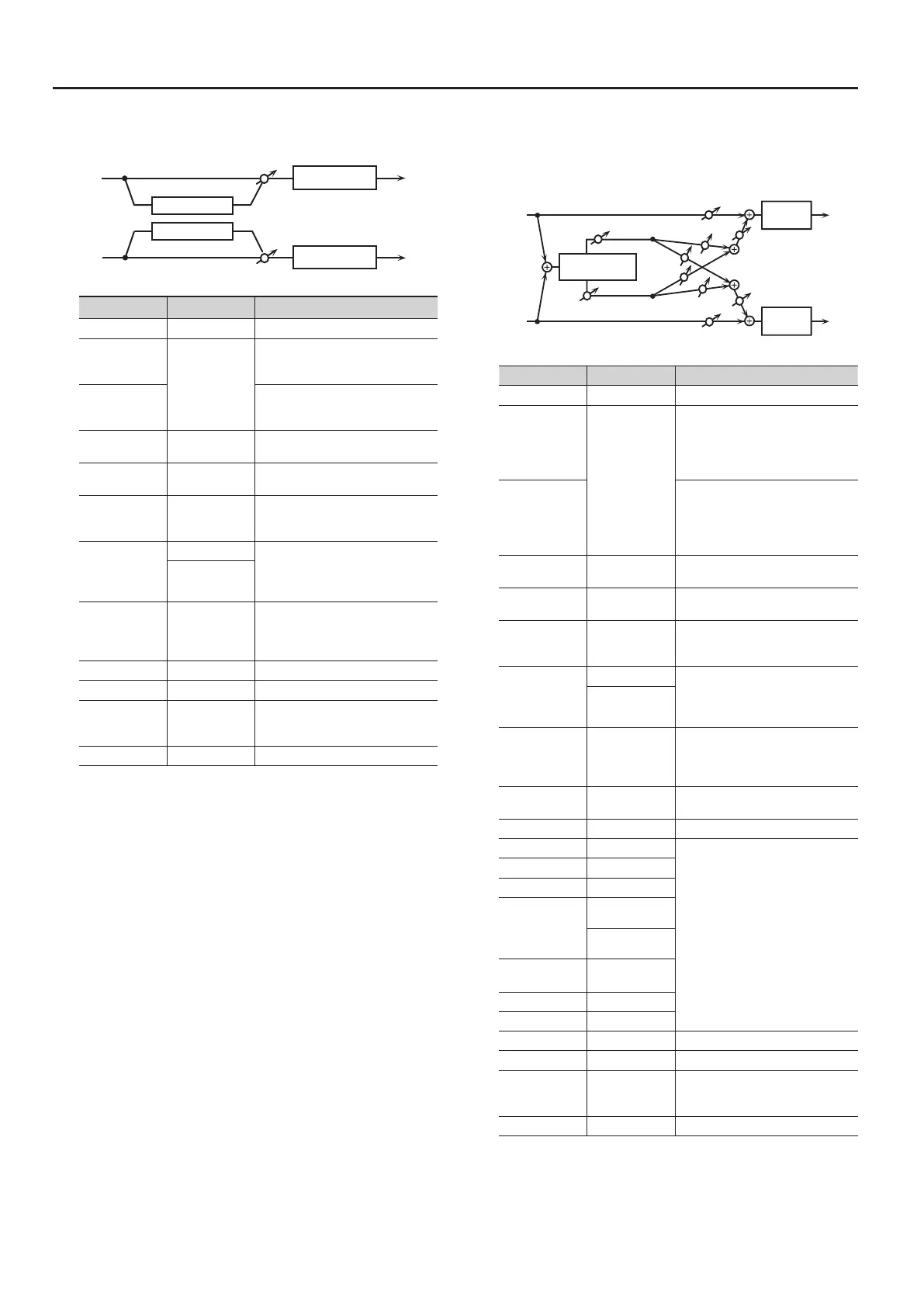

Modulation FX Parameters
41: PITCH SHIFTER
A stereo pitch shifter.
L in
R in
Pitch Shifter
Pitch Shifter
L out
R out
2-Band EQ
2-Band EQ
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
COARSE,
FINE,
FEEDBACK,
BALANCE
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Coarse #1 -24–+12 [semi]
Adjusts the pitch of the pitch shifted
sound in semitone steps.
Fine #1 -100–+100 [cent]
Adjusts the pitch of the pitch shifted
sound in 2-cent steps.
Delay Time
(sync sw)
OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Delay Time
(msec)/
Delay Time
(note)
1–1300 [msec]
Adjusts the delay time from the direct
sound until the pitch shifted sound
is heard.
note (p. 31)
Feedback # -98–+98 [%]
Adjusts the proportion of the pitch
shifted sound that is fed back into the
eect. Negative “-” settings will invert
the phase.
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the pitch shifted sound
(W)
Level 0–127 Output Level
42: 2VOICE PITCH SHIFTER
Shifts the pitch of the original sound. This 2-voice pitch shifter has
two pitch shifters, and can add two pitch shifted sounds to the
original sound.
L in
R in
L out
R out
Level 1
Balance W
Balance D
Balance W
Balance D
Level 2
Pan 2 R
Pan 1 L
Pan 1 R
Pan 2 L
2Voice
Pitch Shifter
2-Band
EQ
2-Band
EQ
Parameter Value Explanation
Switch OFF, ON Turns the eect on/o.
Depth Knob
PITCH1 COARSE,
PITCH1 FINE,
PITCH1
FEEDBACK,
PITCH1 PAN,
PITCH2 COARSE,
PITCH2 FINE,
PITCH2
FEEDBACK,
PITCH2 PAN,
BALANCE
Species the parameter that is
controlled by the MODULATION FX
[DEPTH] knob.
Rate Knob
Species the parameter that is
controlled by the MODULATION FX
[RATE] knob.
Pitch1 Coarse #1 -24–+12 semi
Adjusts the pitch of Pitch Shift 1 in
semitone steps.
Pitch1 Fine #1 -100–+100 cent
Adjusts the pitch of Pitch Shift Pitch 1
in 2-cent steps.
Pitch1 Delay
(sync sw)
OFF, ON
If this is ON, the modulation is
synchronized to the tempo of the
rhythm (owner’s manual p. 24).
Pitch1 Delay
(msec)/
Pitch1 Delay
(note)
1–1300 [msec]
Adjusts the delay time from the direct
sound until the Pitch Shift 1 sound is
heard.
note (p. 31)
Pitch1 Feedback
#
-98–+98 [%]
Adjusts the proportion of the pitch
shifted sound that is fed back into the
eect. Negative “-” settings will invert
the phase.
Pitch1 Pan # L64–63R
Stereo location of the Pitch Shift 1
sound
Pitch1 Level 0–127 Volume of the Pitch Shift 1 sound
Pitch2 Coarse #2 -24–+12 semi
Settings of the Pitch Shift 2 sound.
The parameters are the same as for the
Pitch Shift 1 sound.
Pitch2 Fine #2 -100–+100 cent
Pitch2 Delay OFF, ON
Pitch2 Delay
(msec)/
Pitch2 Delay
(note)
1–1300 [msec]
note (p. 31)
Pitch2 Feedback
#
-98–+98 [%]
Pitch2 Pan # L64–63R
Pitch2 Level 0–127
Low Gain -15–+15 [dB] Gain of the low range
High Gain -15–+15 [dB] Gain of the high range
Balance #
D100:0W–
D0:100W
Volume balance between the direct
sound (D) and the pitch shifted sound
(W)
Level 0–127 Output Level
