BA ROTEX HPSU compact 2 - 04/2011
4.3 Additional control unit (HPRA1)
All parameters of the additional control unit (HPRA1) are described in detail in this section. An overview of all parameters,
their factory settings and setting range are listed in a table in section 4.3.2.
4.3.1 Setting parameters
The selection and setting of parameters released for the user is described in chapter 3.4 "Additional control unit HPRA1".
In order to view or edit parameters which are only visible or adjustable for the specialist heating technician, the relevant password
must be entered in the additional control unit (HPRA1) before selecting the relevant menu item.
The following display shows an example of how a parameter is displayed and changed for the specialist heating technician.
F Configuration of functions
00 Operation of the circulation pump outside of [4-02]/[F-01] 0 0 - 1 — —
01 Permission for room cooling 20 10 - 35 1 °C
02 Underfloor heating ON temperature 3 3 - 10 1 °C
03 Underfloor heating hysteresis 5 2 - 5 1 °C
04 Functionality of connection X14A Removed. Do not change the default value.
Tab. 4-3 Overview parameter settings (1 Only valid for HPSU compact 516
Code 1 Code 2
Parameter name
Default factory settings
Value Range Increment Unit

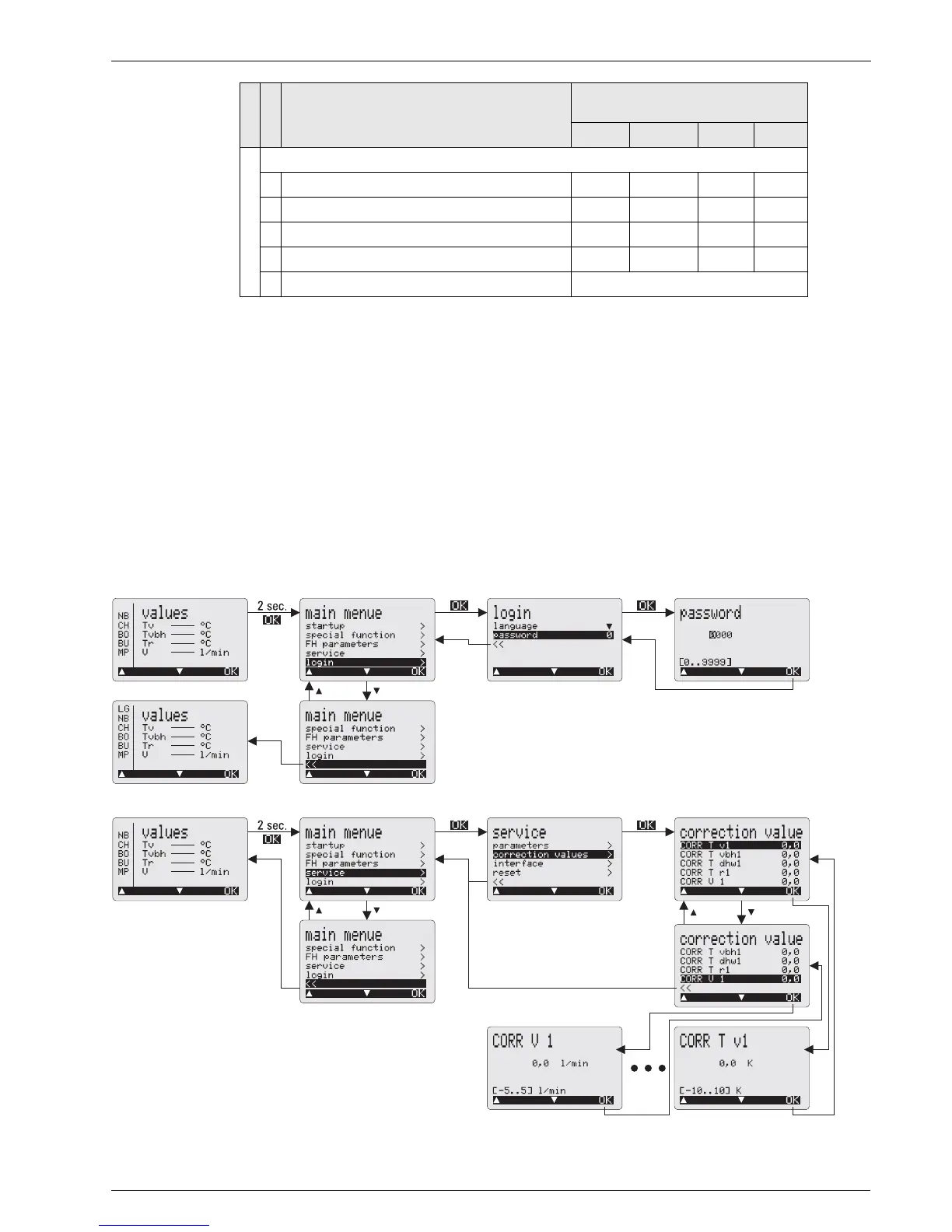

Fig. 4-14 For example: Setting a parameter of the additional control unit with the specialist's code
