 Check whether the requirements of temperature and humidity are met for the switch.
 Check whether power cables are already laid out and whether the requirements of electrical current are met.
 Check whether related network adaption lines are already laid out.
3.3 Installing the RG-ES100
Precautions
During installation, note the following points:
 Connect the power cables of different colors to the corresponding grounding posts.
 Ensure that the interface of the power supply cable is properly connected to the power interface of the device. The
power cables must be protected using power cable retention clips after they are connected to the device.
 Do not place any articles on the RG-ES100 series switch.
 Maintain a minimum clearance of 100 mm (3.94 in.) around the device. Do not stack the devices.
 The switch should be located at places free from the large power radio launch pad, radar launch pad, and high-
frequency large-current devices. If necessary, use electromagnetic shielding. For example, use interface cables to
shield cables.
 100-meter network cables should be laid inside the equipment room and outdoor cabling of such cables is prohibited.
If outdoor cabling is necessary, take relevant measures for surge protection.
3.3.1 Mounting the Switch in a Standard 19-inch Rack
The RG-ES106D-P and RG-ES110D-P series switches do not support rack mounting.
The RG-ES126S-LP, RG-ES118S-LP, RG-ES116G, and RG-ES124GD series switches follow the EIA standard
dimensions and can be installed in a 19-inch rack.
Step 1: Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-1.

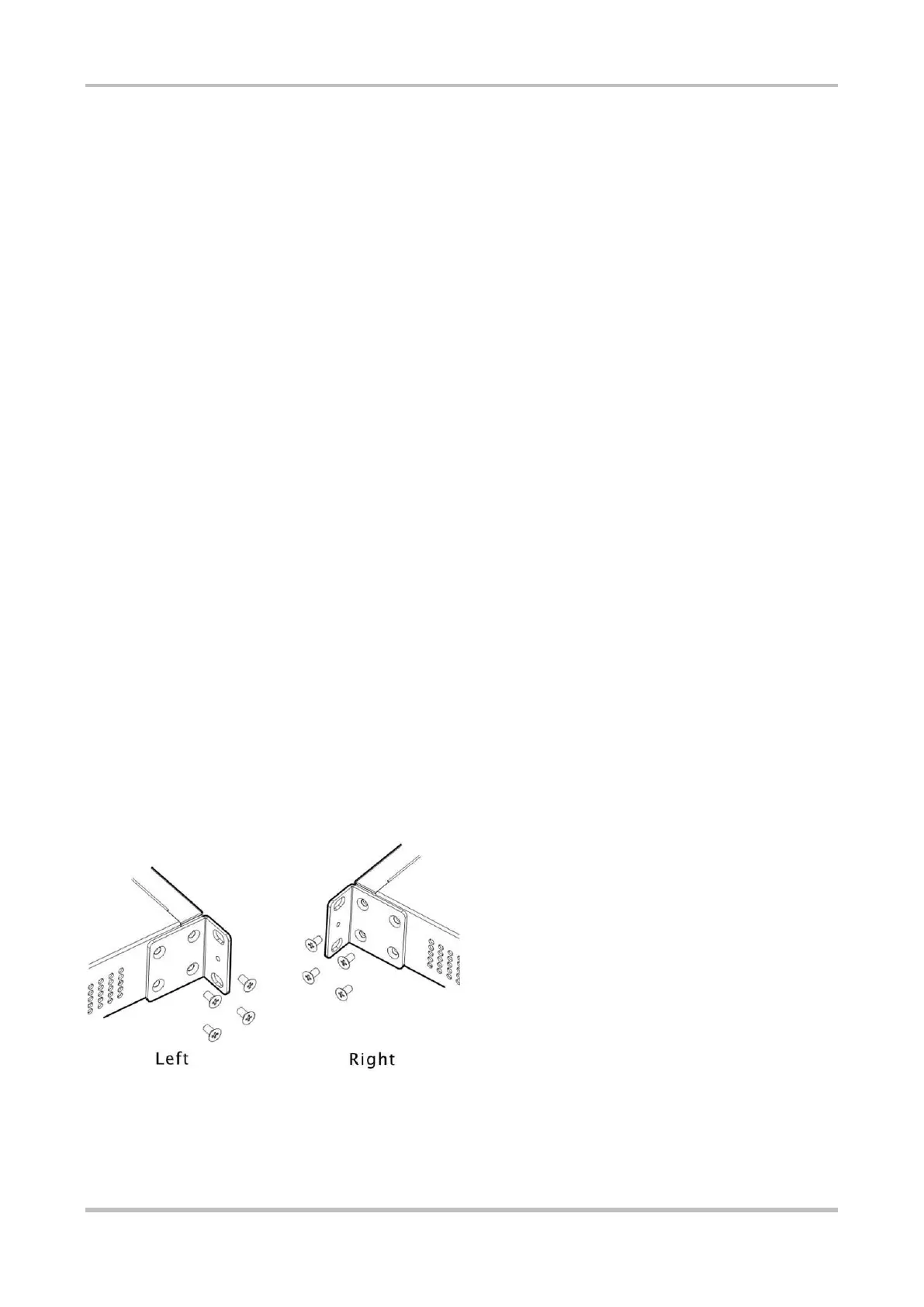

Figure 3-1 Attaching the Mounting Bracket to RG-ES126S-LP or RG-ES118S-LP
Figure 3-2 Attaching the Mounting Bracket to RG-ES116G or RG-ES124GD
