Hardware Installation and Reference Guide Product Installation
ii

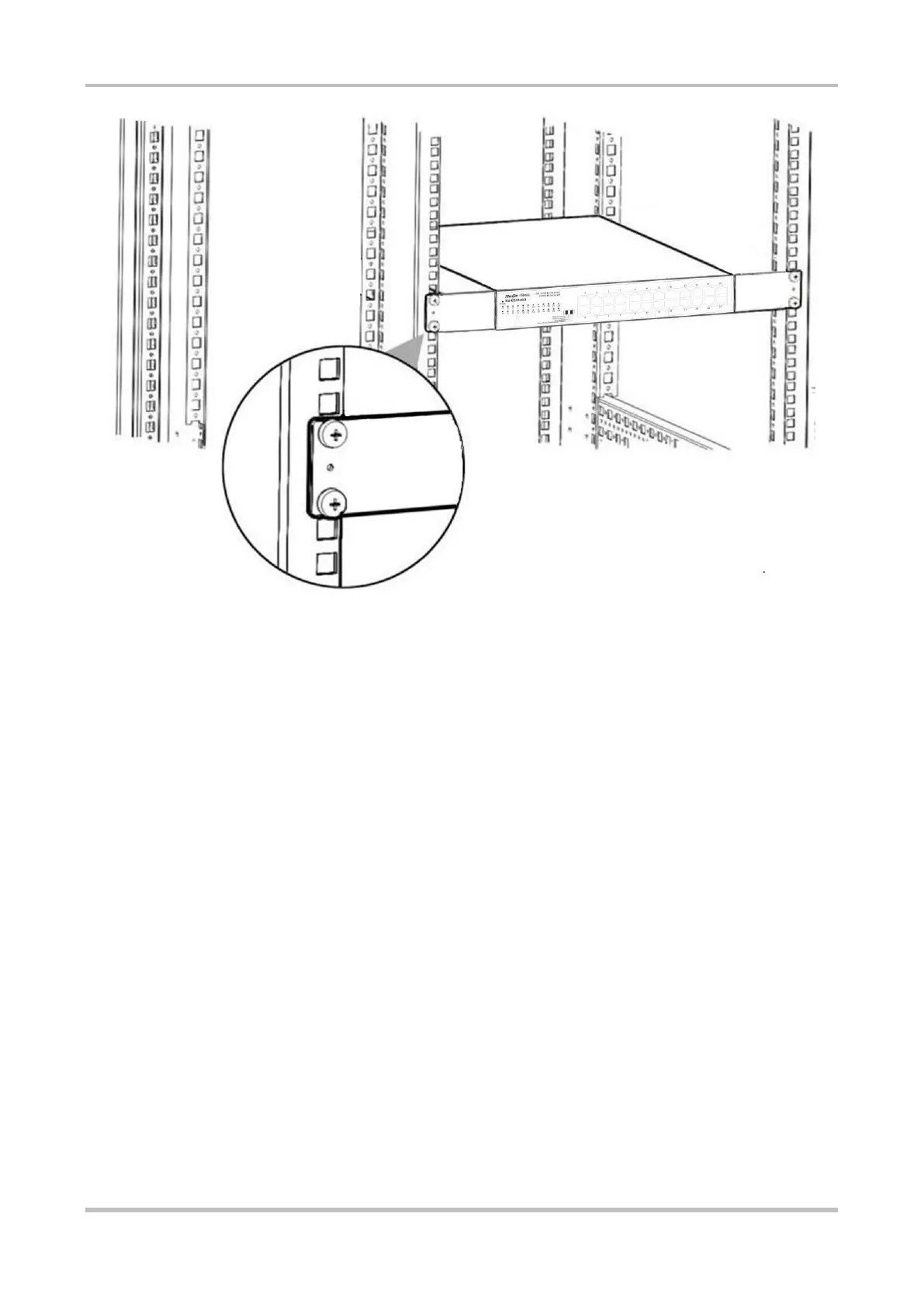

（2）
3.3.2 Mounting the Switch Against a Wall
The RG-ES106D-P and RG-ES110D-P can be mounted against the wall. Mounting screws and wall anchors are customer
supplied.
You need to determine the size and depth of the two mounting holes on the wall based on the sizes of wall anchors and
screws. Ensure that the wall anchors can be inserted into the holes. The outer edges of the wall anchors are left outside
the wall, so screws can be tightly fastened to the wall.
The RG-ES110D-P is used as an example. The steps of mounting the switch against the wall are as follows:
Step 1: As shown in Figure 3-1, drill two holes 97.6 mm (3.84 in.) far away from each other. The line of connecting the two
holes is horizontal.
Step 2: Insert wall anchors into the holes and ensure that the outer edges of the wall anchors are aligned with the wall.
Step 3: Put screws (ST4.2x20 recommended) into the wall anchors. Ensure that the distance between the inner side of the
screw head and the outer edge of the wall anchors not be smaller than 2.5 mm (0.10 in.) so that the device can be securely
mounted on the screws.
Step 4: Align the two mounting holes on the bottom of the chassis of the device with the screws, and then fasten the device
on the screws.
Figure 3-4 Mounting the Switch Against the Wall
