Ruijie RG-NBS Series User Manual

1-43
Configuration Guide
eWeb Configuration (Standalone Mode)

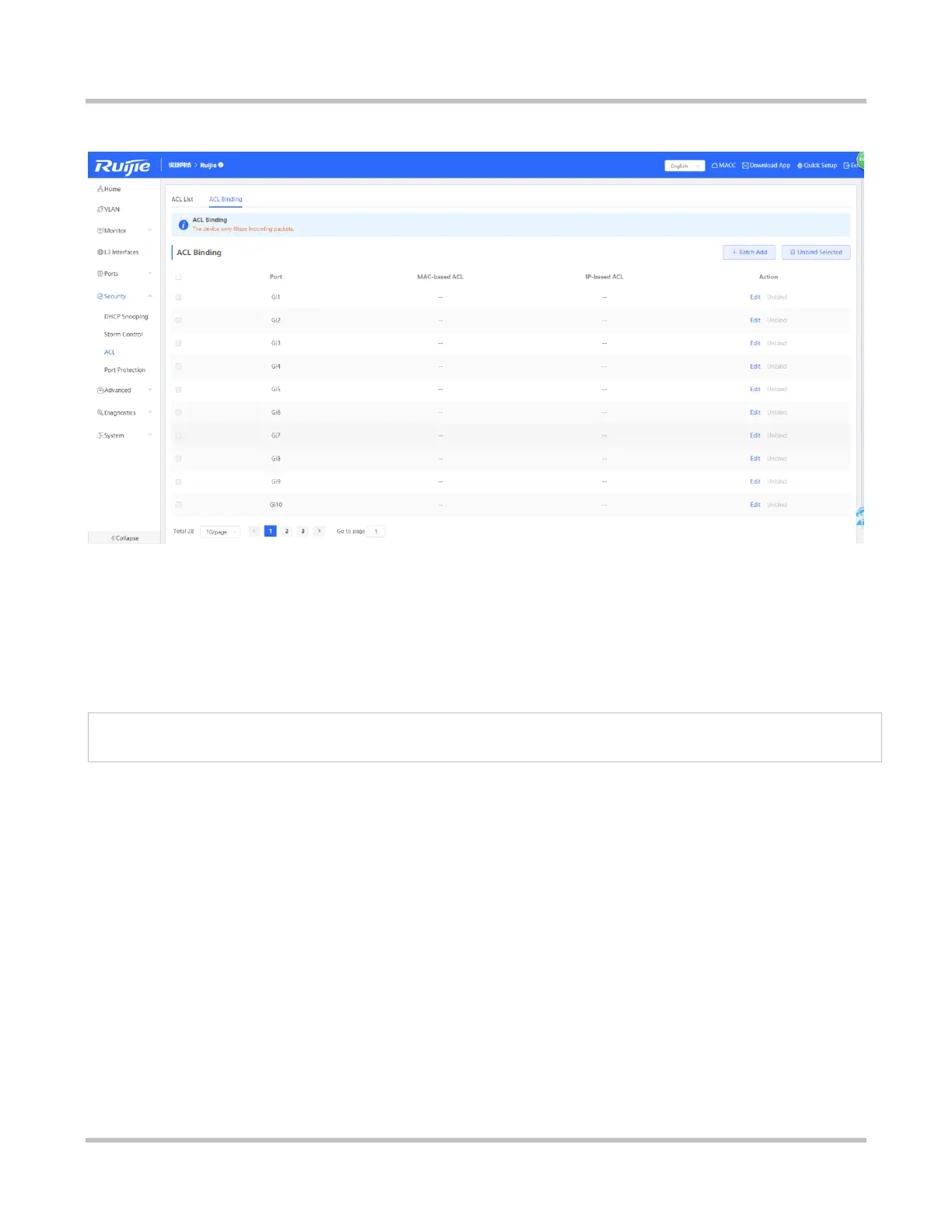

Figure 3-6-4 ACL Binding
 Binding ACLs
Click Batch Add. In the displayed dialog box, select the target MAC-based ACL and IP-based ACL and ports, and click OK.
 Batch unbinding ACLs/Unbinding a single ACL
Select multiple entries in ACL Binding, and click Unbind Selected. Alternatively, click Unbind in the Action column. In the
displayed confirmation box, click OK.
Tips:
At least one ACL type needs to be selected for ACL binding.
3.6.4 Port Protection
Users on different ports are isolated at layer 2 when port protection is enabled.
