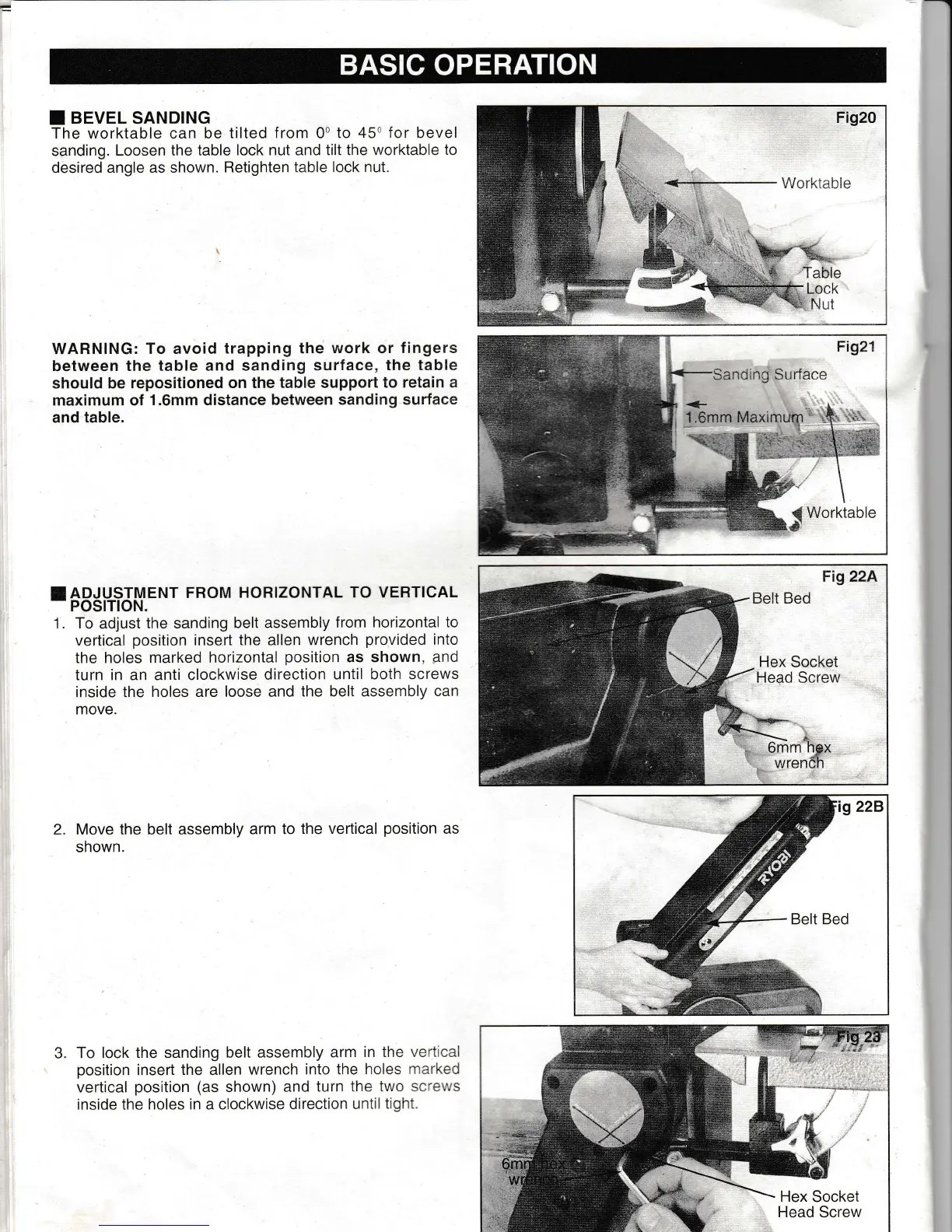

BEVEL SANDING
The worktable can be
tilted from 0o to
45'for
bevel
sanding.
Loosen the table
lock nut and tilt the
worktable to
desired angle as shown.
Retighten
table lock nut.
WARNING:
To avoid
trapping the
work or fingers
between
the table and
sanding surface,
the table
should
be repositioned
on the table
support to retain a
maximum of
1.6mm distance
between sanding surface
and table.
I6Eglrr?JM.ENr
FRoM HoRrzoNrAL
ro vERrrcAL
1. To
adjust
the sanding
belt assembly
f
rom horizontal to
vertical
position
insert
the
allen
wrench
provided
into
the holes
marked horizontal
position
as shown,
and
turn in an anti
clockwise direction
until both
screws
inside
the holes are loose and
the belt assembly
can
move.
2. Move
the
belt
assembly
arm to the
vertical
position
as
shown.
3. To
lock the
sanding
belt assembly
arm
in the
vertical
position
insert the allen
wrench into
the holes
marked
vertical
position (as
shown) and
turn
the two scre\^,/s
inside the
holes in a clockwise
dtrection
until tight
BASIC
OPERATION
Fig20
Worktable
Fig21
