SaMASZ KT 301 User Manual

Operating manual
Rear disc mower with central suspension
- hydro-pneumatic or spring suspension
- 3 6 -
WARNING:
When replacing knives, the engine must be stopped and the cutterbar must lie on the
ground. PTO shaft must be disconnected. Discs should be perpendicular to cutterbar.
6.3. Adjusting the cutterbar
Swath width is adjusted with swath guides mounted on the 3-point linkage frame of
the cutterbar (Fig. 23).
In order to adjust the guide, the following should be performed (for: KT 261 (H), KT 301 (H),
KT 341 (H), KT 260 (H), KT 300 (H) and KT 340 (H)):
 loosen locknuts (2) and screws (3),
 shift the guide arm (6),
 tighten screws (3) and locknuts (2),
 loosen locknuts (4) and screws (5),
 then adjust height and shield angle (7),
 tighten screws (5) and locknuts (4).

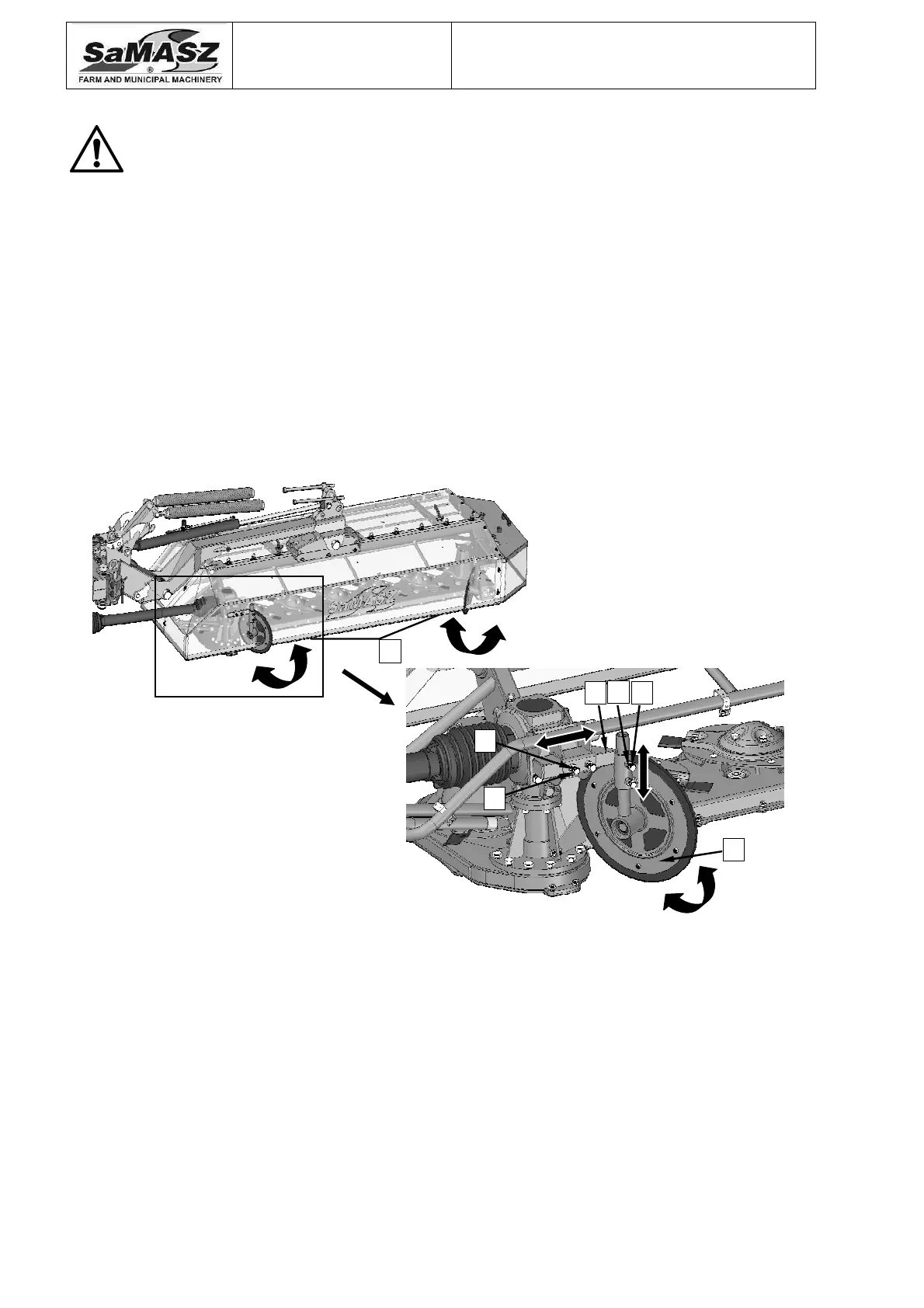

Fig. 23. Adjustment of swath guides: 1 - swath guide, 2 - locknuts, 3- arm adjustment screws, 4 - locknuts,
5- shield adjustment screws, 6- guide arm, 7- shield
In order to set swath width, adjustment of swath guides (1) should be performed (Fig. 24)
(for: KT 261 S (H), KT 301 S (H)):
 loosen eye screw (2) of the swath guide,
 set the swath guide (1) as needed,
 tighten screw (2),
 even spreading of swath might be adjusted with wheels (3) the same as it is performed
with guides.
2
3
6
4
5
7
1
