7.2. Intersecting axis gears
Every 100 working hours and for less intensive machine operation 2-3 times a season check
the oil level and if necessary top up after having removed the vent A (Fig. 38) on the top of the
gear. The oil level can be checked through check opening B on the side of the gear. Please refill the
oil until it is visible in the check opening B. The oil capacity: about 1 L. Check oil level when
the cutterbar is on the ground. Removing the old oil from the gearbox is done through the outlet C.

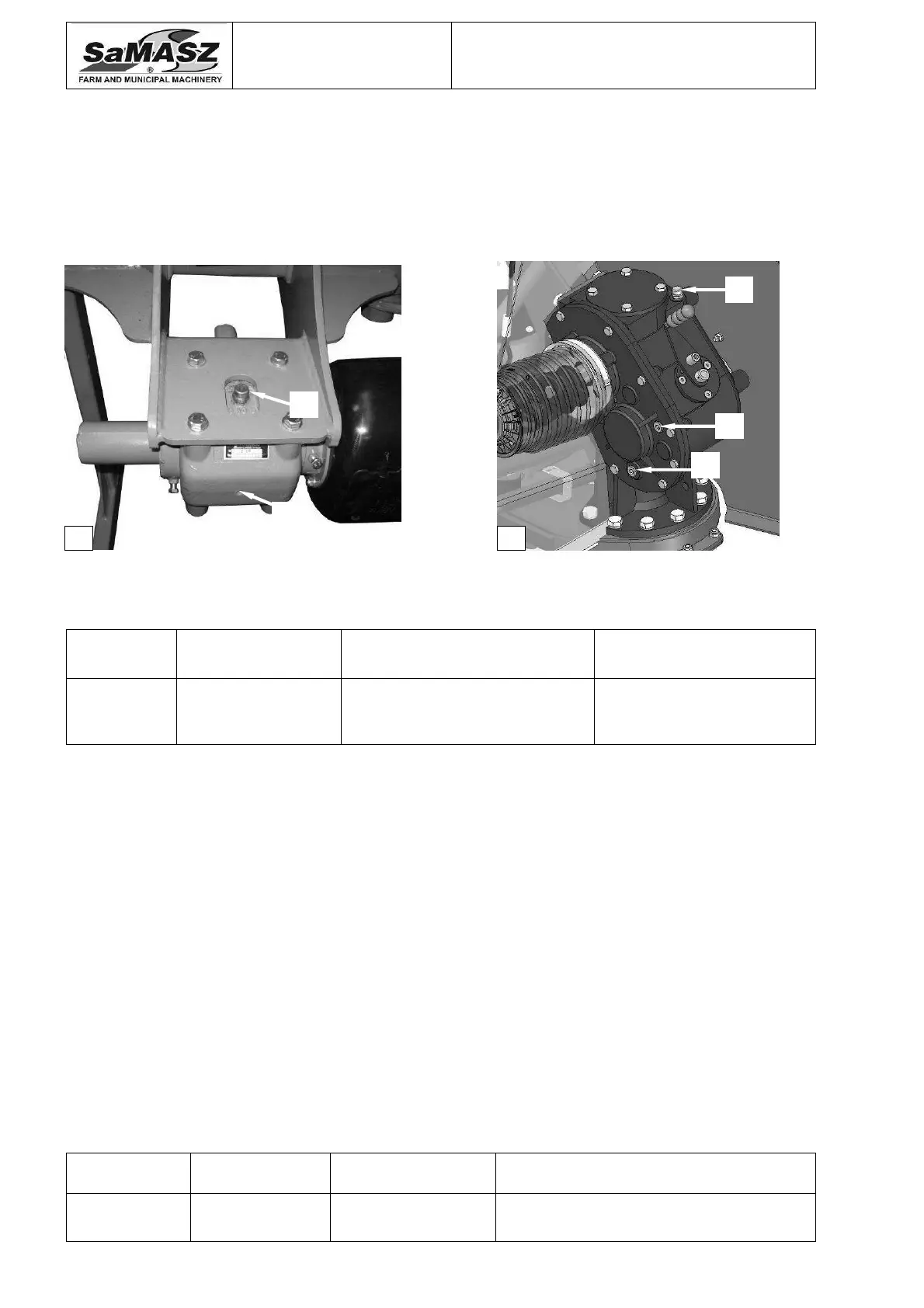

Fig. 38. Intersecting axis gear lubrication points
Tab. 15. Oil capacities in intersecting axis gears
Model
Oil capacity [L]
Oil type Lubrication frequency
All types 1 SAE 80W/90, API GL-4
Once every 3 seasons
(if working intensively, more
frequently)
IMPORTANT:
The above instructions should be strictly followed. If the discs in the cutterbar rotate
loosely, do not worry about high intersecting axis gear temperature; after long working
time, it may reach as much as 100
o
C.
7.3. Roller conditioner’s gearbox
(For mowers: KT 260 W, KT 300 W)
Before you check the lubrication of the gearbox, remove the safety guard. Every day before
starting work, check the oil level and, if needed, refill after having removed the vent A (Fig. 39) on
the top of the gearbox. The oil level can be checked through the check opening B on the side of the
gear. Refill the oil until it is visible in the check opening B. The oil capacity is about 0.5 L. Check
oil level when the cutterbar is on the ground. Removing the old oil from the gearbox is done
through the outlet C.
Tab. 16. Oil capacities in roller conditioner’s gearbox
Model
Oil capacity [L]
Oil type – for
gearboxes
Lubrication frequency
All types 0.5 80W90
Once every 3 seasons
(if working intensively)
a)
A
B
b)
A
B
C
