SaMASZ KT 301 User Manual

Operating manual
Rear disc mower with central suspension
- hydro-pneumatic or spring suspension
- 4 2 -
1. Conditioner roller
2 Hex nut - M16 self-protecting gal. cl. 8.8
3. Washer
4. Welded tine
5. Bolt M12x 55 gal. cl. 8.8
6. Tine’s insert

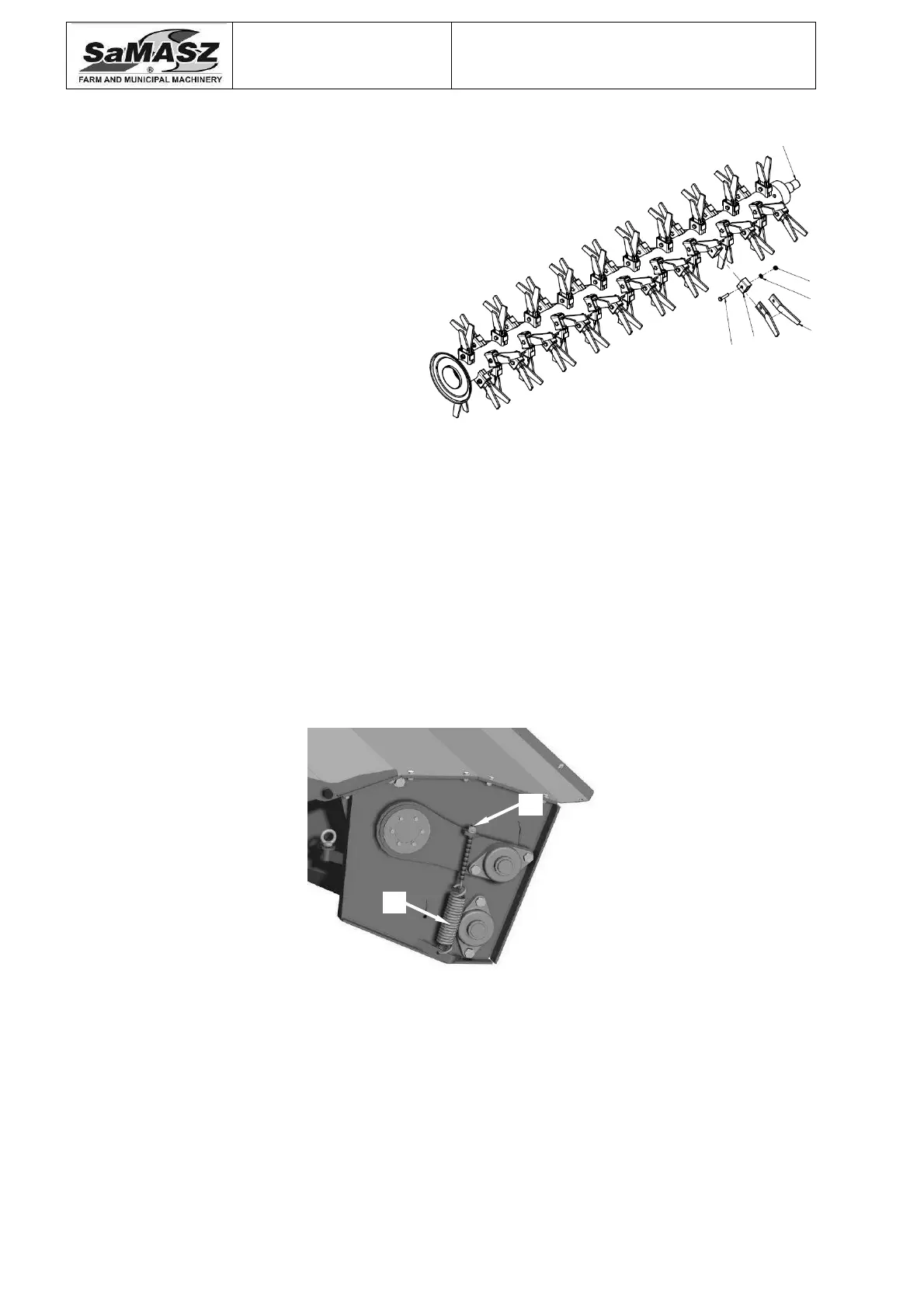

Fig. 32b. Replacing conditioner tines (light-weight conditioner)
In order to dismount the tine release the nut with a wrench, remove the bolt, and the tine – in
case of mowers equipped with a light-weight conditioner remove the tine rubber pad too. Mount the
new tine in the reverse order (Fig. 32).
6.9. Adjusting force of the pressure of roller conditioner
(For mowers: KT 260 W (H), KT 300 W (H))
The factory setting of the pressure between rollers should be adequate. If need be, the force
of roller conditioner’s pressure can be regulated by changing the tension of springs (S) (Fig. 33) by
means of nut N. Adjustment should be done on both sides of the conditioner.
Fig. 33. Adjustment of the pressure between rollers
N
S
