24
Outdoor Unit

Where it is not exposed to strong wind

Well ventilated and dustless places

Out of the direct sunlight and rain

Where neighbors are not annoyed by operation sound or hot air

Solid wall or support that prevents vibration and is strong enough to hold the product weight

Where there is no risk of ammable gas leakage

When installing the unit at a high place be sure to x the unit legs

3m or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)

Install the unit horizontally

Place where drained water does not become any problem.

Place with no plants (especially climbing plants) and where small animal can not access.

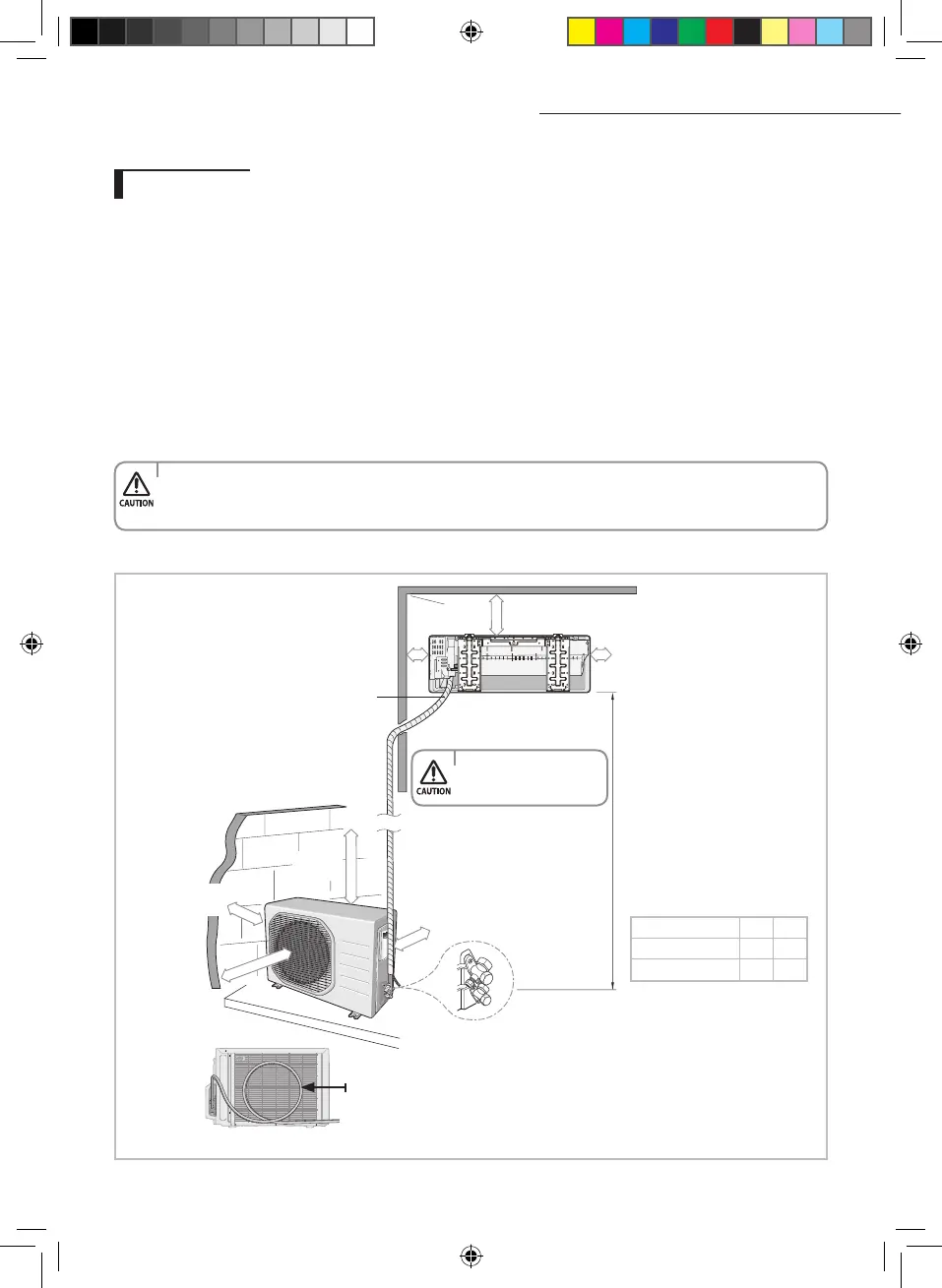

Observe the clearances and maximum lengths as seen in the picture below when installing the air conditioner.
• Avoidthefollowingplacestopreventmalfunctionoftheunit
- Where there is machine oil - Salty environment such as seaside areas
- Where sulde gas exists - Other special atmosphere areas
125mm
or more
300mm or more
125mm
or more
600mm
minimum
300mm
minimum
300mm
minimum
600mm
minimum
' L ' meters maximum
total pipe length
Wrap the refrigerant pipes and the drain hose
with the absorbent pad and vinyl tape. Refer to
page 38 for further details.
You can select the direction of
draining
(left or right).
' H ' meters maximum total
pipe length
 The appearance of the unit may be dierent from the diagram depending on the model.
Model L H

09/12/18

15 7

24

20 8
Makeatleastoneround:Itwillreducenoiseandvibration
'L' m as maximum pipe length
and 3 m as minimum pipe length
(It will reduce noise and vibration)
Choosing the installation location
Boracay EUR_AQ09T&U@_IBIM_32447A_E.indd 24 2011-3-19 10:07:58

Samsung AQ09UGFN Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	7800 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	820 x 190 x 285 mm
Type	Split system
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9384 BTU/h
Dehumidifying capacity	1 l/h
Heating capacity (max)	9896 BTU/h
Air conditioner functions	cooling, dehumidifying, heating
Cooling capacity in watts (max)	2750 W
Heating capacity in watts (max)	2900 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.61
Airflow	7.5 m³/h
Outdoor units quantity	0
Noise level (low speed)	24 dB
Noise level (high speed)	32 dB
Power requirements	AC 220 - 240 V, 50 Hz
Annual energy consumption	428 kWh
Power consumption (cooling) (max)	855 W
Power consumption (heating) (max)	803 W
