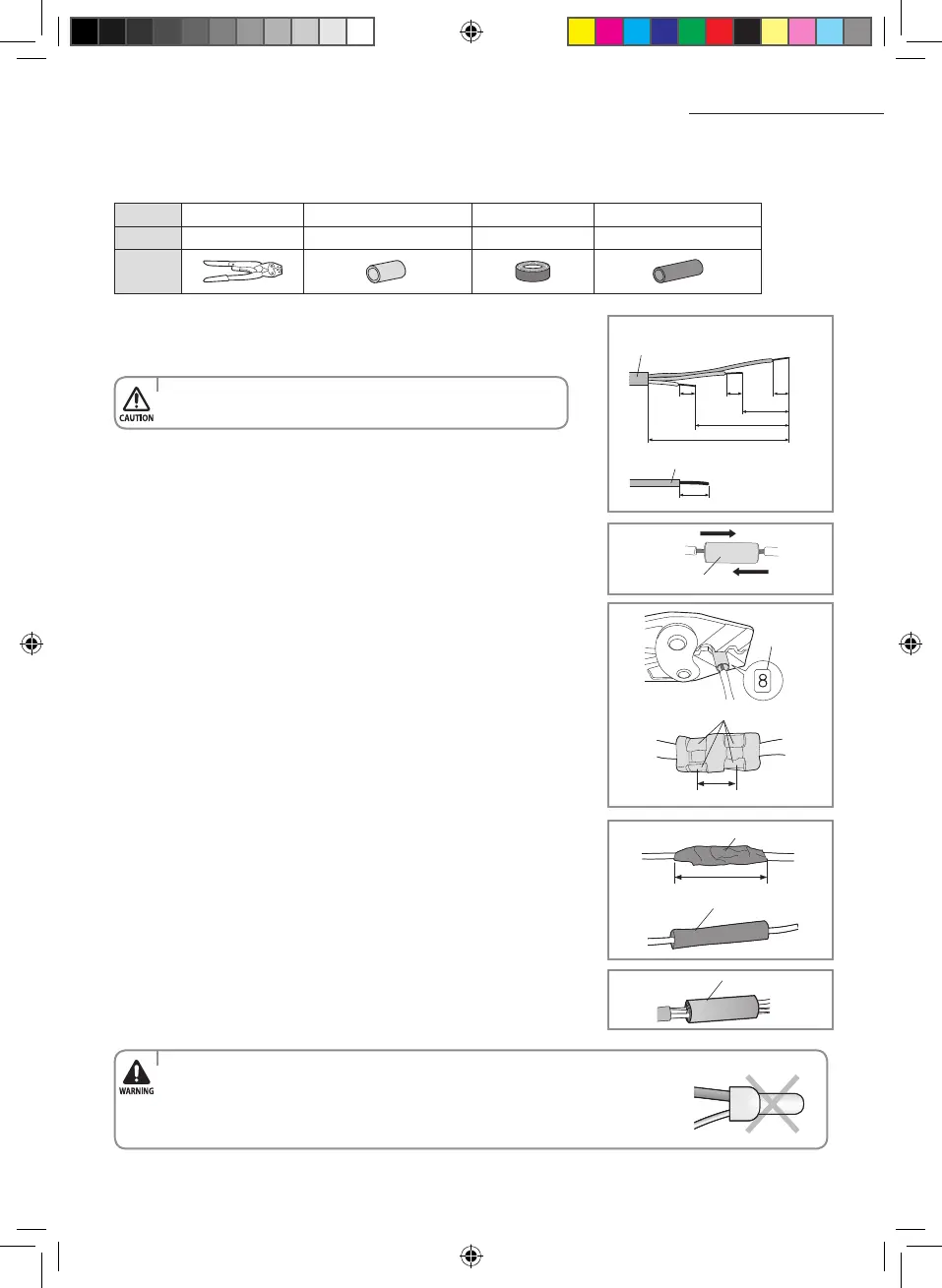

How to connect your extended power cables
Items to prepare
(compressor and insulation tape should be prepared by an installation technician.)
1. As shown in the gure, peel o the shields from the rubber/wire
of the power cable.
- Peel o 20 mm of the wire shields of the tube installed already.
2. Insert both sides of core wire of the power cable into the connection sleeve.
3. Using a compressor, compress the two points and ip it over
and compress another two points in the same location.
- The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to
make sure it is rmly pressed.
4. Wrap it with the insulation tape twice and position your
contraction tube in the middle of the insulation tape.
5. Apply heat to the contraction tube to contract it.
6. After tube contraction work is completed, wrap it with the
insulation tape to nish.
Tools Crimping plier Connection sleeve (mm) Insulation tape Contraction tube (mm)
Spec
MH-14 20xØ7.0(HxOD) Width 18mm 50xØ8.0(LxOD)
Shape
40mm
Insulation tape
Contraction tube
(Unit:mm)
120
60
202020
180
Power cable (provided by us)
20
Wire tube power cable
Connection sleeve
Comp. dim.
Compress it 4 times
5mm
Insulation tape
• Afterpeelingothetubewire,youmustinsertacontractiontube.
• Incaseofextendingtheelectricwire,pleaseDONOTusearound-shapedpressingsocket.
- Incomplete wire connections can cause electric shock or a re.
Boracay EUR_AQ09T&U@_IBIM_32447A_E.indd 40 2011-3-19 10:08:25

Samsung AQ09UGFN Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	7800 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	820 x 190 x 285 mm
Type	Split system
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9384 BTU/h
Dehumidifying capacity	1 l/h
Heating capacity (max)	9896 BTU/h
Air conditioner functions	cooling, dehumidifying, heating
Cooling capacity in watts (max)	2750 W
Heating capacity in watts (max)	2900 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.61
Airflow	7.5 m³/h
Outdoor units quantity	0
Noise level (low speed)	24 dB
Noise level (high speed)	32 dB
Power requirements	AC 220 - 240 V, 50 Hz
Annual energy consumption	428 kWh
Power consumption (cooling) (max)	855 W
Power consumption (heating) (max)	803 W
