Samsung AQ09UGFN User Manual

ENGLISH
39

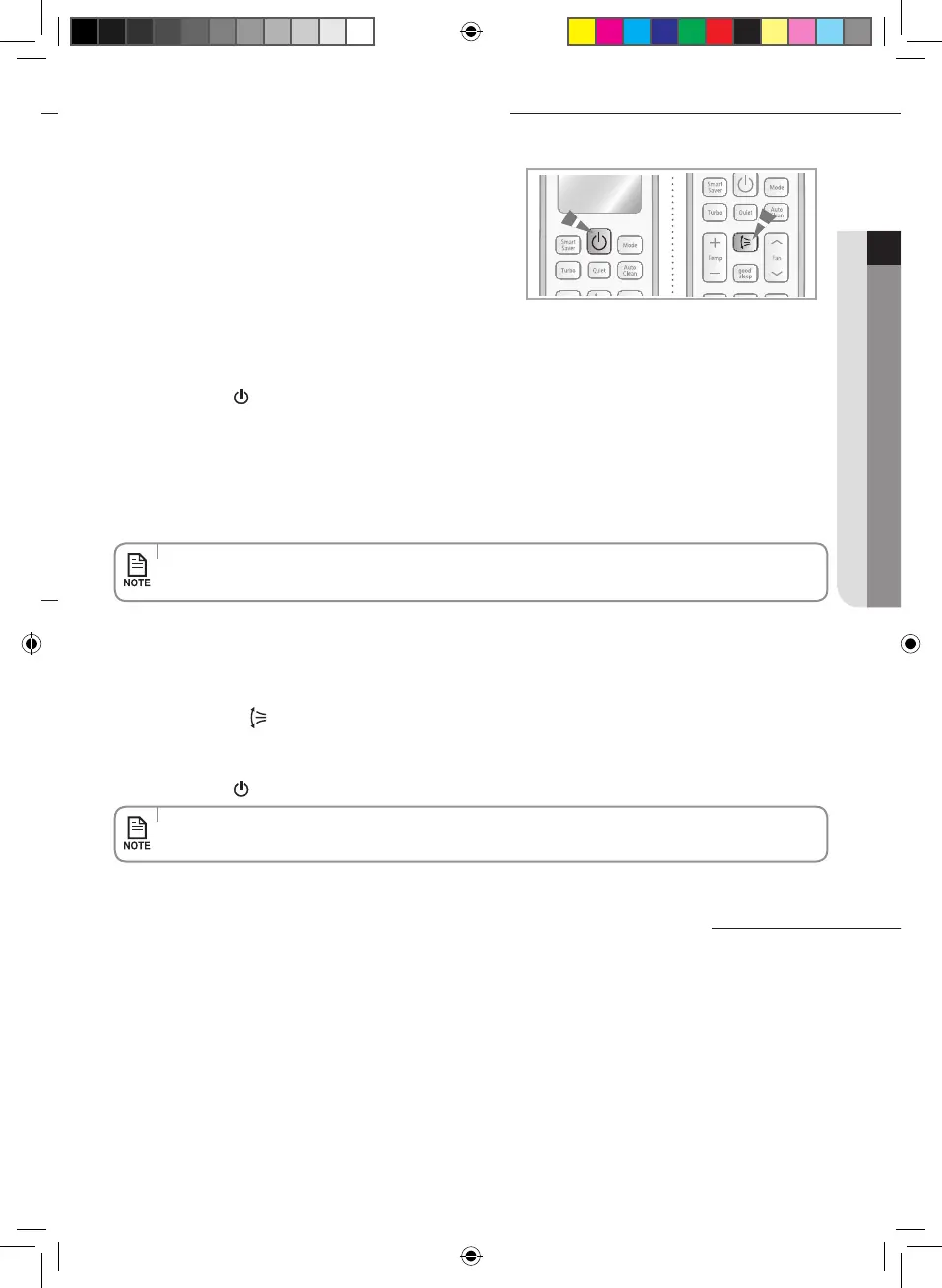

Final Check and Trial Operation
To complete the installation, perform the following checks and tests to
ensure that the air conditioner operates correctly.
Check the followings:
•Strengthoftheinstallationsite
•Tightnessofpipeconnectiontodetectgasleak
•Electricwiringconnection
•Heat-resistantinsulationofthepipe
•Drainage
•Groundingconductorconnection
•Correctoperation(followthestepsbelow)
1. Press the Power
button and check the following:
 
The indicator on the indoor unit lights up.

The airow blade opens and the fan gears up for operation.
1. Turn on the air conditioner and select Cool mode to run the compressor for 3 minutes.
2 . Release the valve caps on High and Low pressure side.
3 . Use L wrench to close the valve on the high pressure side.
4 . Approximately 2 minutes after, close the valve on the low pressure side.
5 . Stop operation of the air conditioner.
6 . Disconnect the pipes.
3. Press the Air swing
button and check the following:
 
The airow blades work properly.
4. Press the Power
button to stop the operation.
2. Press the Mode button to select Cool or Heat mode.
 
In Cool mode, use Temp + or - button and set the temperature at 16°C.

In Heat mode, use Temp + or - button and set the temperature at 30°C.

Cooling mode (indoor unit check) Inletairtemp.-Outletairtemp:From10°Kto12°K(indicativedeltaT)
Heating mode (indoor unit check) Outletairtemp.-Inletairtemp:From11°Kto14°K(indicativedeltaT)
In heating mode, the indoor fan motor can remain o to avoid cold air blown into conditioned space.
Pump down procedure (when removing the product)
• Approximately3~5minuteslater,outdoorunitwillstarttooperateandtheCoolorWarmairwillblowout.
• After12minutesofstationaryconditionchecktheindoorunitairtreatment:
• Whenyoucompletetheinstallationsuccessfully,handoverthismanualtotheuserforstorageinahandyandsafe
place.
Boracay EUR_AQ09T&U@_IBIM_32447A_E.indd 39 2011-3-19 10:08:23

Samsung AQ09UGFN Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	7800 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	820 x 190 x 285 mm
Type	Split system
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9384 BTU/h
Dehumidifying capacity	1 l/h
Heating capacity (max)	9896 BTU/h
Air conditioner functions	cooling, dehumidifying, heating
Cooling capacity in watts (max)	2750 W
Heating capacity in watts (max)	2900 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.61
Airflow	7.5 m³/h
Outdoor units quantity	0
Noise level (low speed)	24 dB
Noise level (high speed)	32 dB
Power requirements	AC 220 - 240 V, 50 Hz
Annual energy consumption	428 kWh
Power consumption (cooling) (max)	855 W
Power consumption (heating) (max)	803 W
