Samsung AQ09UGFN User Manual

ENGLISH
7
Main parts
Display
indicator
Timer/Auto clean indicator
Operation indicator
Power button
Remote controller receiver
Your air conditioner may slightly look di erent from illustration shown above depending on your model.

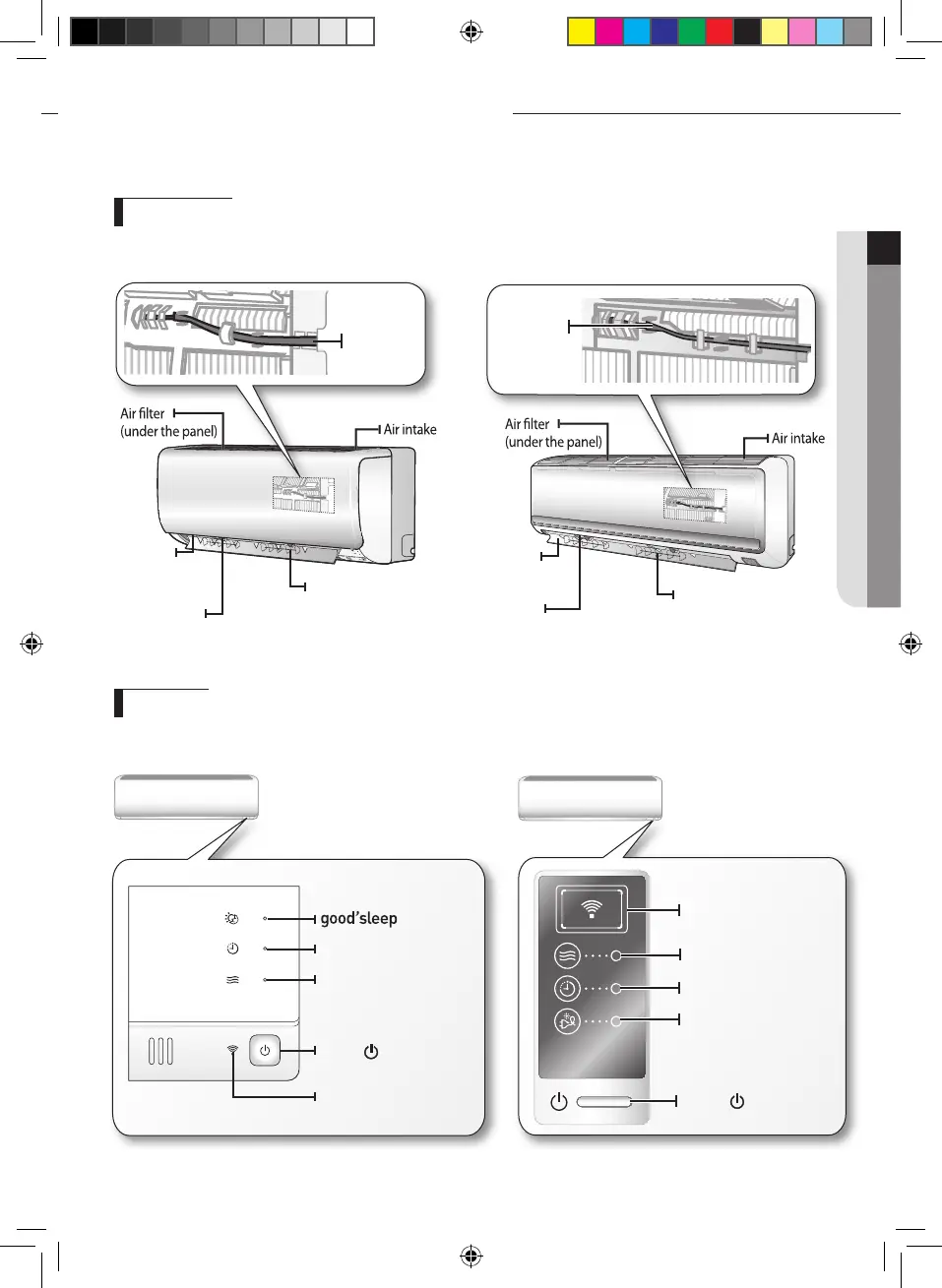

Checking the name of the parts
Air  lter
(under the panel)
Air  ow blade
(up and down)
Blade pin lever
Air intake
Air  ow blade
(left and right)
Air  lter
(under the panel)
Air intake
Room
temperature
sensor
  09/12/18/24T    09/12/18/24U 
Air  lter
(under the panel)
Air  ow blade
(up and down)
Blade pin lever
Air intake
Air  ow blade
(left and right)
Air  lter
(under the panel)
Air intake
Room
temperature
sensor
Remote controller receiver
Operation indicator
Timer/Auto clean indicator
Smart Saver indicator
Power button
  09/12/18/24T    09/12/18/24U 
Boracay EUR_AQ09T&U@_IBIM_32447A_E.indd 7 2011-3-19 10:07:33

Samsung AQ09UGFN Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	7800 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	820 x 190 x 285 mm
Type	Split system
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9384 BTU/h
Dehumidifying capacity	1 l/h
Heating capacity (max)	9896 BTU/h
Air conditioner functions	cooling, dehumidifying, heating
Cooling capacity in watts (max)	2750 W
Heating capacity in watts (max)	2900 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.61
Airflow	7.5 m³/h
Outdoor units quantity	0
Noise level (low speed)	24 dB
Noise level (high speed)	32 dB
Power requirements	AC 220 - 240 V, 50 Hz
Annual energy consumption	428 kWh
Power consumption (cooling) (max)	855 W
Power consumption (heating) (max)	803 W
