Samsung AQ09UGFN User Manual

36

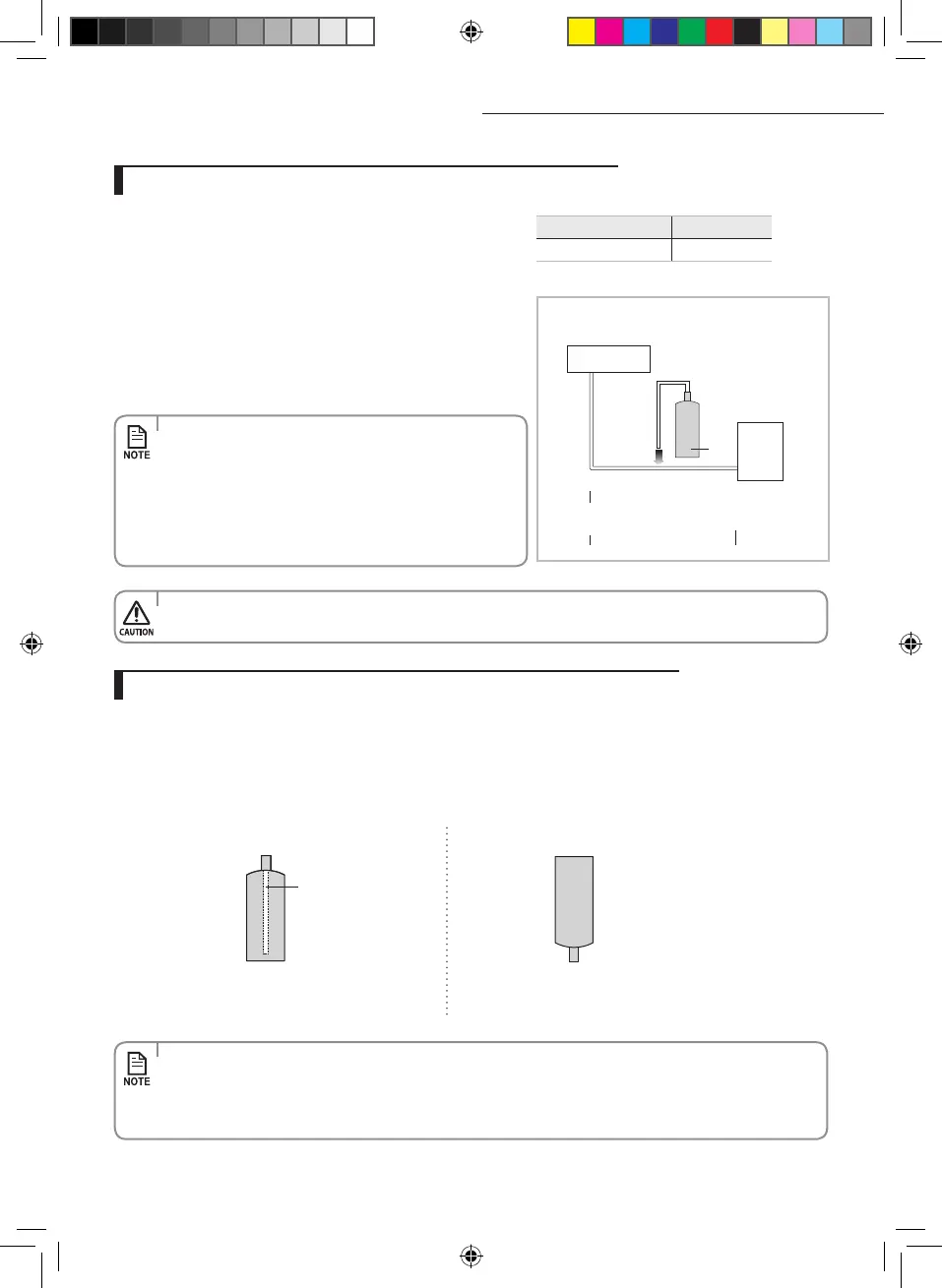

Purging the connected pipes
Refrigerant type GWP value
R410A 1975
 GWP=Global Warming Potential
Indoor unit
Outdoor unit

= ( )
kg

= ( )
kg

+

= ( )
kg

Contains uorinated greenhouse gases
covered by the Kyoto Protocol.
a
c
d

b
This product contains uorinated greenhouse gases covered by the Kyoto
Protocol.
Do not vent gases into the atmosphere.
1. Please ll in with indelible ink,
 

the factory refrigerant charge of the product,
 

the additional refrigerant amount charged in the eld and
 

+

the total refrigerant charge. on the refrigerant charge label
supplied with the product.
R410A is a mixed type of refrigerant. It is necessary for recharging under conditions of liquid. When recharging refrigerant from
the refrigerant cylinder to the equipment, follow the instructions below.
1. Before recharging, check whether the cylinder has a siphon or not.
There are two ways to recharge the refrigerant.
Important information regulation regarding the refrigerant used
Charging the refrigerant under conditions of liquid by using a liquid pipe
a.Factoryrefrigerantchargeoftheproduct:
see unit name plate
b. Additional refrigerant amount charged in the eld (Refer
to the above information for the quantity of refrigerant
replenishment.)
c. Total refrigerant charge
d. Refrigerant cylinder and manifold for charging
• Thelled-outlabelmustbeadheredintheproximityoftheproductchargingport(e.g.ontotheinsideofthestop
valve cover).
Cylinder with siphon
siphon

Charge the refrigerant standing the
cylinder upright.
Cylinder without siphon

Charge the refrigerant turning the cylinder
upside down.
• IfR410Arefrigerantischargedwithgas,thecompositionofthechargedrefrigerantchangesandthe
characteristics of the equipment vary.
• Duringthemeasuringoperationofrefrigerantquantityaddeduseanelectronicbalance.
If cylinder doesn’t have syphon, upset it.
Boracay EUR_AQ09T&U@_IBIM_32447A_E.indd 36 2011-3-19 10:08:21

Samsung AQ09UGFN Specifications

General

Indoor unit type	Wall-mountable
Indoor unit weight	7800 g
Indoor units quantity	1
Indoor unit dimensions (WxDxH)	820 x 190 x 285 mm
Type	Split system
Remotely operated	Yes
Refrigerating medium	R410A
Cooling capacity (max)	9384 BTU/h
Dehumidifying capacity	1 l/h
Heating capacity (max)	9896 BTU/h
Air conditioner functions	cooling, dehumidifying, heating
Cooling capacity in watts (max)	2750 W
Heating capacity in watts (max)	2900 W
Cooling energy efficiency (EER, W/W)	3.22
Heating energy efficiency (COP, W/W)	3.61
Airflow	7.5 m³/h
Outdoor units quantity	0
Noise level (low speed)	24 dB
Noise level (high speed)	32 dB
Power requirements	AC 220 - 240 V, 50 Hz
Annual energy consumption	428 kWh
Power consumption (cooling) (max)	855 W
Power consumption (heating) (max)	803 W
